Eccentric plug valves help control flow well in places where accuracy is important. Their special rotary, eccentric shape lets them handle hard fluids and last longer. Eccentric plug valves use a cam action to make a tight seal. This gives steady flow control even when conditions are tough. Many engineers pick eccentric plug valves because they control flow exactly and do not need much care. These things make eccentric plug valves a trusted choice for important process systems.
Key Takeaways
- Eccentric plug valves have a special off-center turning design. This design lowers friction and wear. It helps the valves last longer. It also makes them easier to use.
- These valves control flow very well. They seal tightly, even with dirty or high-pressure fluids. This saves energy and cuts down on repair costs.
- Their strong build makes them good for hard jobs. They do not need much care. They work well in water, power, and chemical plants.
- Picking the right valve size, material, and actuator is important. It helps the valve work better. It also makes sure it fits your system.
- Putting the valve in the right way is important. Simple regular care keeps eccentric plug valves working well. This also helps them last longer.
Efficient Flow Control
Rotary Valve Design
Eccentric plug valves have a special rotary design. This makes them different from other valves. The shaft is behind the valve seat and not in the middle. Because of this, the plug moves away from the seat right when the valve opens. The plug turns with a quarter-turn. This stops sliding friction between the plug and seat. This design gives many benefits:
- The turning motion lowers friction and wear. This helps the valve last longer.
- The small body needs less space than globe valves.
- It is easier to automate because it only needs a quarter-turn.
- The balanced plug design makes control steady and accurate.
- Strong shafts and special packing make the valve more reliable and help stop leaks.
These things make eccentric plug valves great for tough jobs. Workers can control flow better with less work and less fixing.
Low Friction Operation
Low friction is a big plus for eccentric plug valves. The plug is offset and turns, so it only touches the seat at the end. This keeps the seat from wearing out fast. It also means you need less force to use the valve. When compared to other plug or ball valves, eccentric plug valves have:
- Lower force needed to open or close the valve.
- Less wear inside, even with high pressure or dirty fluids.
- A tight seal, even in rough or gritty conditions.
These things help save energy and make the valve last longer. Eccentric plug valves work well under pressure. They are a good pick for important jobs.
Pressure Drop and Sealing
Pressure drop and sealing are important when picking a valve. Eccentric plug valves have a medium pressure drop. They do better than globe valves, which slow flow more. But butterfly valves let flow move even easier. This lets workers choose what fits their system best.
Sealing is also very good. Eccentric plug valves seal well, even with high pressure. The table below shows how they shut off with different materials and sizes:

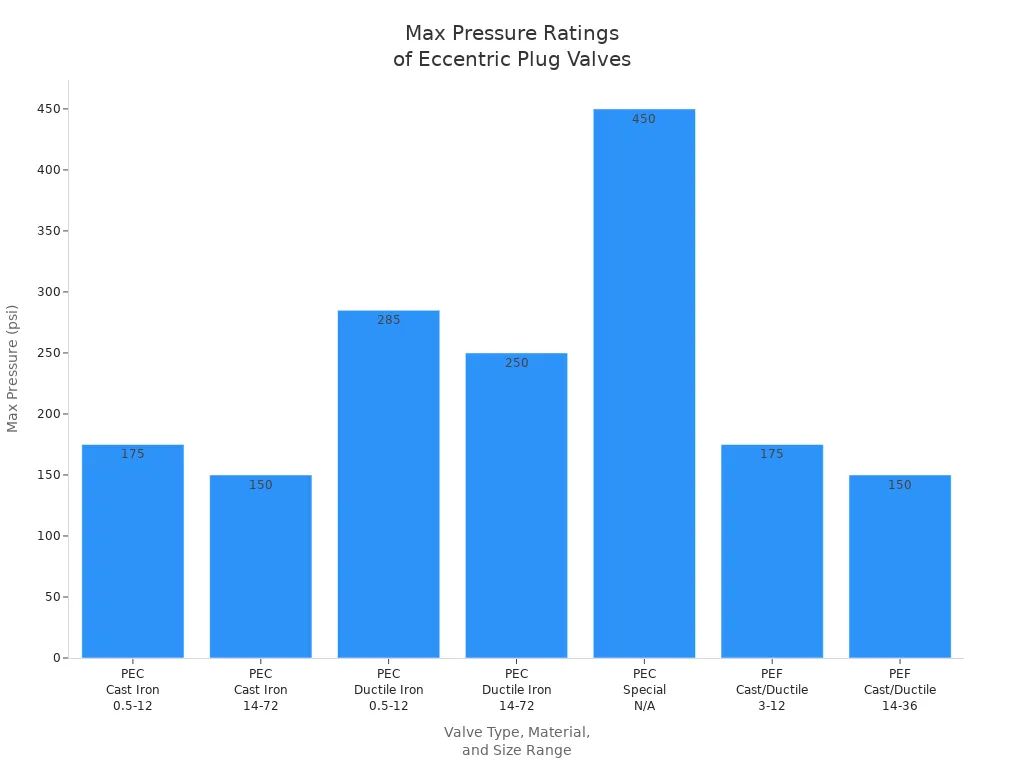

| Valve Type | Body Material | Size Range (inches) | Max Pressure (psi) | Max Pressure (kPa) | Shutoff Performance |
|---|---|---|---|---|---|
| PEC | Cast Iron | 0.5 – 12 | 175 | 1210 | Resilient plug facing: drip tight; Metal plug: ANSI/FCI 70-2 Class IV |
| PEC | Cast Iron | 14 – 72 | 150 | 1035 | Resilient plug facing: drip tight; Metal plug: ANSI/FCI 70-2 Class IV |
| PEC | Ductile Iron | 0.5 – 12 | 285 | 1965 | Resilient plug facing: drip tight; Metal plug: ANSI/FCI 70-2 Class IV |
| PEC | Ductile Iron | 14 – 72 | 250 | 1724 | Resilient plug facing: drip tight; Metal plug: ANSI/FCI 70-2 Class IV |
| PEC | Special | N/A | 450 | 3100 | Resilient plug facing: drip tight; Metal plug: ANSI/FCI 70-2 Class IV |
| PEF | Cast or Ductile Iron | 3 – 12 | 175 | 1210 | Resilient plug facing: drip tight; Metal plug: ANSI/FCI 70-2 Class IV |
| PEF | Cast or Ductile Iron | 14 – 36 | 150 | 1035 | Resilient plug facing: drip tight; Metal plug: ANSI/FCI 70-2 Class IV |
DeZURIK eccentric plug valves use special plug facings for a tight shutoff. Metal plug types meet ANSI/FCI 70-2 Class IV rules. Other features like strong bearings, nickel seats, and adjustable seals make sealing even better. These parts help the valve seal tight and work well, even in hard jobs.
Tip: Picking eccentric plug valves can help save energy and lower repair costs over time.
Eccentric Plug Valves Overview
Structure and Components
Eccentric plug valves have special parts that make them different. The main parts are:
- An eccentric stem sits off to the side, not in the middle. This makes a cam action.
- A plug-shaped disc turns inside the valve body to control flow.
- The valve body is usually round and holds the plug and seat.
- The valve seat is where the plug seals to stop leaks.
- The stem is thick and has a shoulder to keep it safe.
- The trim comes in pieces, so fixing and sealing is easier.
- Some valves have longer seats or strong bodies. Some have ceramic or hard coatings to last longer.
The stem’s design means the plug only touches the seat when opening or closing. This helps the valve last longer and makes it easier to use. Other rotary valves, like ball or butterfly valves, use stems in the middle and seal in other ways. Eccentric plug valves are known for being strong and easy to fix.
Cam Action and Modulation
The cam action happens because the stem is off to the side. When you turn the stem, the plug moves away from the seat first. Then it turns. This lowers friction and stops scraping. The valve works smoother and lasts longer.
Eccentric plug valves can control flow very well. The plug moves in small steps, so you can make tiny changes. This is good for systems that need exact flow. Workers can trust the valve to work well, even with rough or gritty fluids.
Note: The cam action helps the valve last longer and keeps the seal tight, even after many uses.
Throttling and On/Off Control
Eccentric plug valves are good for both stopping and controlling flow. The plug can stop anywhere between open and closed. This lets workers pick the right flow rate. The valve works for both blocking and fine-tuning flow.
Many industries use eccentric plug valves because they work with many fluids. They can handle fluids with dirt or grit. The strong design and good seal help the valve work well in tough places.
Key Benefits of Eccentric Plug Valves
Precise Flow Modulation
Eccentric plug valves help control flow very well in many places. Their special rotary design lets workers make small, careful changes to flow. The plug moves away from the seat before it turns. This lowers friction and makes the valve easy to use again and again. The design helps keep flow steady, even when it must stay the same for a long time.
Workers can count on these valves to work the same way every time. They work well with fluids that have stuff floating in them or are thick. Because you can adjust flow so well, these valves are a top pick when you need really good flow control.
Tip: Eccentric plug valves are great for both turning flow on and off and for letting just the right amount through, so they work for many jobs.
Durability and Reliability
Eccentric plug valves are strong and last a long time, even in tough places. Their offset plug design means the plug does not touch the seat much. This keeps the valve from wearing out fast and helps it last longer. The plug only touches the seat when the valve is closed all the way. This means there is less rubbing and scraping than with other valves.
- Eccentric plug valves can handle rough and harsh fluids.
- Their strong build helps them work well for many years.
- The design helps stop leaks, even with dangerous fluids.
- These valves last longer than globe valves and need fewer fixes.
Many businesses use these valves for steady flow in water plants, power plants, and chemical factories. Their tough build and good seal make them a smart choice for places that need valves to work well all the time.
Versatility in Harsh Conditions
Eccentric plug valves work in many hard places. They do well with thick fluids, slurries, and liquids with sand or dirt. Their special design helps them fight rust and damage, which is important in chemical plants and water plants.
- Workers use these valves in water, waste, and power jobs.
- The valves can be made with different coatings to fight harsh chemicals.
- Putting them in the right way helps them last longer and work better.
Eccentric plug valves last longer and seal better than other valves in rough places. Their ability to work in many jobs means they fit both normal and special needs.
Low Maintenance Needs
Eccentric plug valves do not need much fixing or care. Their simple turning motion and low friction mean parts do not wear out fast. Simple jobs like oiling and checking the valve keep it working well.
- Cleaning and oiling often stop the valve from sticking.
- Checking the valve helps find problems early.
- Workers can change seals or seats easily, so repairs are quick.
- Companies give help, training, and real parts to make care easy.
These valves cost less to keep running than many others. They are lighter and cheaper to put in than globe valves. Their design makes fixing them simple. Using these valves saves money and energy because they need less fixing and use less power.
Note: Picking eccentric plug valves can help save money and make your system work better.
Applications
Water and Wastewater
Eccentric plug valves are important in water and wastewater plants. Workers use them for clean water, dirty water, sludge, and gases. The design helps the valve control flow well, even with thick or gritty fluids.
- DeZURIK Glass-Lined Eccentric Plug Valves handle thick sludge and biosolids.
- PEC Eccentric Plug Valves work in acid rock drainage and mine slurry with low pH.
- Workers use these valves for digester gas and to control water in fish ladders.
These examples show the valves help both city and factory water systems. Workers like that the valves are easy to fix and last a long time, even in tough places.
Power Generation
Power plants need eccentric plug valves to work safely and well. These valves can handle high pressure and heat, so they are used in nuclear, coal, and renewable energy plants.
| Aspect | Benefit in Power Plants |
|---|---|
| Durability | Works well in high-pressure, high-heat systems |
| Automation Integration | Electric types give exact, real-time flow control |
| Smart Technology | Sensors and actuators give real-time data and help with repairs |
| Maintenance | Better seals and less rust mean less downtime and lower costs |
Workers use smart valves to check flow, pressure, and heat. This technology helps stop problems and saves energy.
Chemical Processing
Chemical plants use fluids that can be harsh and rough. Eccentric plug valves have an off-center plug that seals tight and wears less.
- These valves work in chemical dosing, handling acids, caustics, and solvents.
- PTFE-lined valves protect against strong chemicals.
- Workers trust these valves for high pressure and heat, up to 250 psi and 400°F.
The valves meet strict safety and environmental rules. They last a long time and do not wear out fast, so they save money in chemical plants.
Handling Abrasive Fluids
Systems that move rough fluids, like slurries or liquids with sand, need special care. Eccentric plug valves work well here because of their design.
Tip: Always line up the valve with the pipes and follow the maker’s rules for flow direction.
Best ways to use them include:
- Lining up and supporting the valve to stop leaks and stress
- Checking the valve often to find wear early
- Cleaning and oiling moving parts to help the valve last longer
Doing regular care and putting the valve in right helps workers stop wear and keep things working well.
Selecting an Eccentric Plug Valve
Material and Size
Picking the right material and size for an eccentric plug valve keeps things safe and working well. The valve’s material should match what kind of fluid is moving through it and how hot it gets. Stainless steel with molybdenum does not get pits in places with lots of chemicals. If it gets really hot, materials like FKM or PTFE help seal the valve tight. The table below lists some common seal materials and what they are good at:
| Material | Chemical Resistance | Mechanical Resistance | Max Temperature (°F/°C) |
|---|---|---|---|
| CIIR | Excellent gas, chemical stability | Good impact, abrasion | 250 / 122 |
| EPDM | Oxygen, ozone | Good impact, fair tear | 250 / 121 |
| FKM | Oils, acids, solvents | Good abrasion | 450 / 232 |
| PTFE | Excellent chemical | Fair mechanical | Not specified |
The size of the valve changes how well you can control flow. If the valve is too big, it can make the flow hard to control and noisy. If the valve is too small, it might break from bubbles or fast-moving fluid. Picking the right size helps the valve last longer and keeps flow steady.
Tip: Use new computer programs to help pick the best valve size for your system and stop problems before they start.
Pressure and Temperature
Eccentric plug valves need to handle the highest pressure and heat in your system. The table below shows some common ratings:

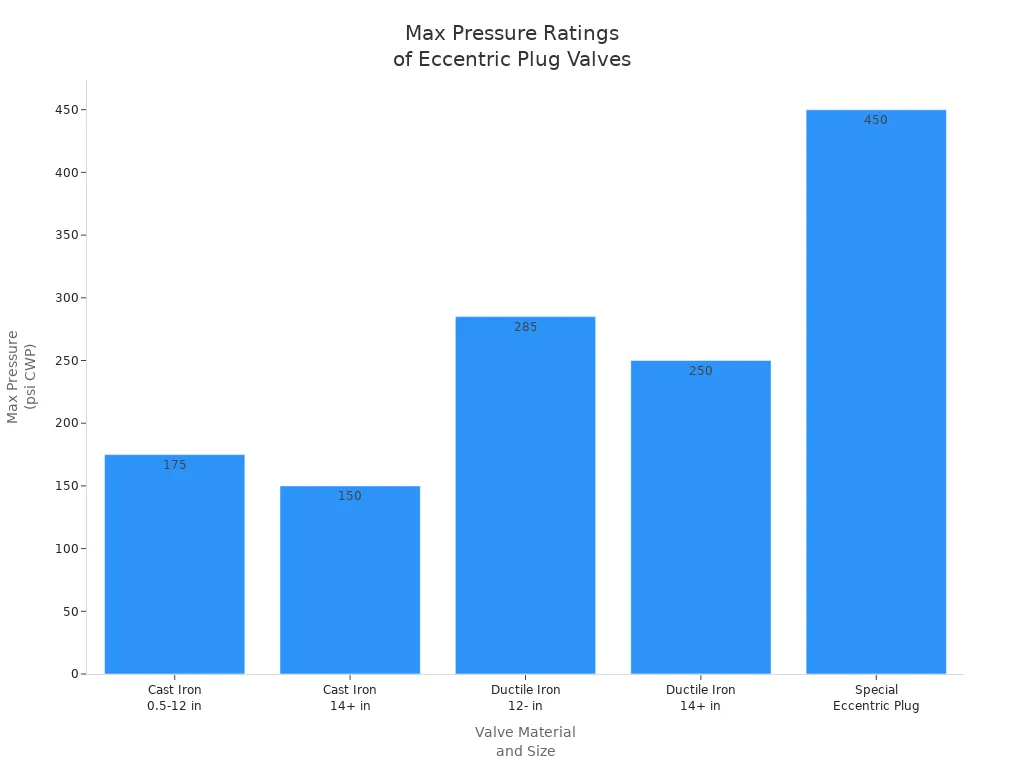

| Valve Material | Size Range (inches) | Max Pressure (psi) | Max Temperature (°F/°C) |
|---|---|---|---|
| Cast Iron | 0.5–12 | 175 | 300 / 150 |
| Ductile Iron | 12 and smaller | 285 | 300 / 150 |
| Special Alloy | N/A | Up to 450 | 300 / 150 |
Always make sure the valve you pick can handle your system’s needs. For fluids that are very hot or can eat away at metal, use materials and seals that are made for those jobs.
Actuation Options
Eccentric plug valves can be opened and closed in different ways. Manual actuators are good for small valves or when you do not use them much. Electric actuators let you control the valve from far away and are very exact, but they move slower than pneumatic ones. Pneumatic actuators move the fastest and work well in tough places, but they need air to work and are not as exact. The table below shows how these choices compare:
| Actuation Type | Reliability | Response Time | Key Considerations |
|---|---|---|---|
| Manual | Simple, reliable | Slow | Cost-effective, best for small valves |
| Electric | High, low maintenance | Moderate | Precise, needs power, higher cost |
| Pneumatic | Durable, robust | Fastest | Needs air supply, less precise |
Picking the right actuator helps the valve work better and fit what your system needs.
Installation Tips
Putting in the valve the right way helps it work well and last longer. Here are some easy tips:
- Line up the flanges and hold up the pipes so nothing bends.
- Put the valve in a pipe that goes sideways, with the spindle standing up.
- Use strainers before the valve to keep out dirt and sand.
- Make sure you can get to the valve for fixing.
- Put valves on both sides so you can shut off flow for repairs.
- Use a good bypass valve if you need the system to keep running.
- Check that the flow arrow on the valve matches the way the fluid moves.
- For steam, add parts to catch water and stop banging noises.
- Set up actuators and sensors carefully so the valve works right.
Note: Picking the right material and putting the valve in the right way saves money and helps your system work better.
Eccentric plug valves help control flow well in many tough jobs.
- They last a long time, seal tightly, and do not need much fixing. This makes them a good pick for water, chemical, and power plants.
- Their strong build lets them handle rough slurries and high-pressure fluids easily.
- New changes include smart valve features, better coatings, and designs with more ports.
- Now, more people use digital tools and eco-friendly materials to make systems work better and save energy.
To help your system work better and last longer, engineers should think about using these valves for their next job.
FAQ
What makes an eccentric plug valve different from a standard plug valve?
Eccentric plug valves have the plug and stem off to the side. This special design helps lower rubbing and makes the valve last longer. Standard plug valves have the plug in the middle, so they rub more and wear out faster.
Can eccentric plug valves handle dirty or gritty fluids?
Yes, these valves work well with dirty or thick fluids. The offset plug helps stop clogs and keeps the seal tight, even when there are bits in the flow.
How often do eccentric plug valves need maintenance?
Most eccentric plug valves do not need much care. Checking them and cleaning them sometimes keeps them working well. Many people say these valves last longer than other types.
Are eccentric plug valves suitable for high-pressure systems?
Eccentric plug valves can be used in high-pressure jobs. Makers build some with strong parts and seals for tough work. Always look at the pressure rating before picking a valve.
What industries use eccentric plug valves the most?
Industries like water treatment, power plants, and chemical factories use these valves. They pick eccentric plug valves because they last long, seal well, and work with rough fluids.
