You have to make hard choices when picking valves for rough places. Some industries, like mining and metals, cement making, oil refining, chemicals, power plants, and synthetic fuels, need valves that last a long time. These valves must handle lots of wear. Eccentric plug valves are special because their design keeps moving parts apart. This helps the valve resist wearing out. It also makes the valve last longer. Using eccentric plug valves in factories helps keep your system safe. It also makes your work run better.
Key industries where abrasion resistance matters:
- Mining and Metals
- Cement Production
- Petroleum Refining
- Chemicals / Petrochemicals
- Power Generation
- Synthetic Fuels
Key Takeaways
- Eccentric plug valves use a special off-center plug. This design helps stop rubbing and wear. It makes the valves last longer in rough, abrasive places.
- These valves seal tightly by touching the seat only when closed. This helps stop leaks and keeps systems safe.
- The plug moves in a way that cleans itself. This action removes dirt and debris. It helps stop clogs and lowers the need for maintenance.
- Picking the right materials and coatings is important. Stainless steel or rubber linings make the valve stronger. They help the valve last longer with rough fluids and harsh conditions.
- Eccentric plug valves are easier to use. They cost less to maintain. They work better than gate, ball, or butterfly valves in abrasive jobs.
Eccentric Plug Valves Overview
Eccentric Rotary Plug Valve Design
An eccentric rotary plug valve works in a special way. The plug is not in the center. It sits at an angle, usually between 20° and 30°. This design keeps the plug away from the seat most of the time. The plug only touches the seat when almost closed. When you turn the handle, the plug moves up right away. This keeps the plug and seat apart while opening or closing. There is less rubbing and less damage to the parts.
The plug moves like a cam in this valve. It only pushes on the seat at the end. This makes a tight seal and stops leaks. You can count on this valve for hard jobs. It works well with sticky or rough fluids.
Key Features
Eccentric plug valves are special because of their design. The plug is set off to the side. It stays away from the seat most of the time. This means there is less rubbing and the valve lasts longer. Even in rough places, it works well. The plug only touches the seat at the end. This helps stop damage from rough bits.
You can use this valve in many places. It works in mining, oil, and paper plants. It is used in systems that move slurry, sewage, and dirty water. You will see it in mines where rough slurries can break other valves. Oil refineries use it for thick, gritty fluids. It is also good in pulp mills. There, stringy stuff can block or hurt other valves.
- Common applications for eccentric rotary plug valves:
- Mining slurry and tailings
- Petroleum refining and processing
- Pulp and paper production
- Sewage and wastewater treatment
You can trust these valves in tough and rough places. Their design helps you fix things less often and makes your equipment last longer.
Abrasion Resistance in Eccentric Plug Valves
Minimal Contact Operation
Valves need to last a long time, especially with rough fluids. The eccentric rotary plug valve uses a special offset design. The plug stays away from the seat most of the time. It only touches the seat at the end when closing. This lets the plug turn smoothly. It does not rub against the seat much. There is less friction than in regular valves. Less friction means less wear on the seat and seals. The plug’s tapered end fits tightly when closed. This makes a strong seal and helps stop leaks. In hot places, this design is even more helpful. The eccentric plug valve can handle rough and gritty fluids. It does not wear out fast. This design gives you a valve that works well and lasts longer.
Material and Coating Choices
Picking the right materials and coatings is important. It helps the eccentric rotary plug valve last longer in tough jobs. Some materials are better for stopping wear. You can look at the table below to see your choices:
| Material/Coating Type | Key Benefits for Abrasion Resistance in Eccentric Plug Valves |
|---|---|
| Stainless Steel | High corrosion resistance and durability, suitable for harsh environments, reducing wear from corrosive and abrasive fluids. |
| Carbon Steel | Robust under high pressure and temperature, can be customized with coatings to improve abrasion resistance. |
| Bronze | Durable and corrosion-resistant, especially effective in marine and seawater applications where abrasion is a concern. |
| High-Nickel Alloys (e.g., Hastelloy) | Excellent corrosion and erosion resistance, ideal for chemically aggressive and abrasive media. |
| PTFE Coating | Provides low friction and excellent chemical resistance, protecting valve surfaces from abrasive wear. |
| Alloy Coatings | Offer superior wear resistance in high-pressure and high-temperature environments, enhancing abrasion resistance. |
| Rubber Linings | Flexible erosion barrier that protects against abrasive wear and improves sealing capabilities. |
Stainless steel is good for rough and harsh places. Carbon steel works well with high heat and pressure. You can add coatings to make it stronger. Bronze and high-nickel alloys help in tough chemical or sea jobs. PTFE and alloy coatings lower friction and protect the valve. Rubber linings add a soft layer to stop erosion. If you pick the right mix, your valve will last longer. It will keep working with rough or sticky fluids.
Tip: Always pick the right material and coating for your fluid and temperature. This helps your valve last longer and work better.
Permanently Lubricated Bearings
You can make your eccentric rotary plug valve last longer with special bearings. These bearings are always lubricated. They use sintered, oil-filled 316 stainless steel. This means they do not need extra oiling. The design keeps friction low and stops wear. Even with rough fluids, the valve works well. Big valves may use aluminum bronze body bearings. These make the valve even stronger. The bearings do not have parts that can come loose. This makes the valve tough and reliable, even in hot places. Your valve will work hard and need less fixing.
Wear Reduction Benefits
Tight Shut-Off
You want a valve that stops leaks and keeps things safe. Eccentric plug valves seal well because the plug only touches the seat at the end. This makes a tight seal, even with rough or dirty fluids. There is less rubbing, so the seat and plug do not wear out fast. You will fix leaks less often and keep your process running. A tight shut-off helps you avoid waste and keeps things working well.
Self-Cleaning Action
Eccentric plug valves can clean themselves while working. The plug turns off-center and scrapes dirt or bits off the seat. This keeps the valve clear and stops it from sticking or getting stuck. You can see how this works in the table below:
| Feature | Explanation | Impact on Operational Reliability |
|---|---|---|
| Eccentric Plug Design | Plug turns and scrapes dirt from the seat. | Stops buildup and lowers the chance of sticking or jamming. |
| Contact Area | Only a small part of the plug touches the seat until it closes. | Less rubbing, better sealing, and a longer valve life. |
| Self-Cleaning Action | Plug turning removes dirt and bits. | Keeps things running smooth, lowers wear, and makes it reliable. |
| Seating Materials Flexibility | Can use rubber, metal, or ceramic seats. | Works with many fluids and helps the valve work well. |
This design helps fluids move easily by keeping the path open. You get fewer clogs and less time stopped for repairs. Your valve stays strong, even with fluids that have solids.
Lower Torque and Maintenance
Eccentric plug valves need less force to open and close. The plug is set off to the side, so you do not need as much torque as other valves. Using less torque means you can use smaller parts that use less energy. This saves energy and money. The valve opens and closes smoothly, so flow control is easy. Less rubbing means you do not have to fix it as much. You will see fewer problems and more time between repairs. Places that use these valves spend less and work better. You can expect the valve to last longer and do well in hard jobs.
Tip: Pick eccentric plug valves for rough jobs if you want less downtime, lower costs, and a system that works well.
Eccentric Plug Valve Comparison
Gate and Ball Valves
If you work in mining or oil refining, you need strong valves. Gate valve and ball valves do not do well with rough fluids. They have small sealing spots. Grit and solids can scratch or wear out these spots. It is hard to clean these valves, especially with thick or dirty fluids.
Eccentric plug valves have many good points:
- The sealing area is bigger, so it seals better and leaks less.
- The seat is set off to the side, so the plug lifts away when you open it. This helps stop wear from rough stuff in mining or oil.
- The plug has a special rubber that springs back after it wears, so it keeps sealing tight.
- These valves are easier to clean than ball valves, so your system keeps working.
If you see leaks or need a tighter seal, you can close the valve more. This helps you avoid stopping work in mining or oil plants.
Butterfly Valves
Butterfly valves are used a lot, but they do not always work well with rough fluids. The disc sits right in the flow path. Solids in mining or oil can hit the disc and cause damage. This can lead to leaks and more repairs over time.
Eccentric plug valves move the plug out of the main flow when open. This keeps the sealing parts safe from rough bits. The valve lasts longer and needs less fixing. The tight shut-off and self-cleaning help stop clogs and keep things safe.
| Valve Type | Sealing Area | Ease of Cleaning | Wear Resistance | Best Use Case |
|---|---|---|---|---|
| Gate Valve | Small | Hard | Low | Clean fluids |
| Ball Valve | Small | Hard | Low | Non-abrasive fluids |
| Butterfly Valve | Medium | Medium | Medium | General service |
| Eccentric Plug Valve | Large | Easy | High | Abrasive, mining, petroleum |
Note: In mining and oil plants, eccentric plug valves last longer and seal better. You will fix leaks less and keep your plant running more.
Choose the Right Eccentric Plug Valve
Application Considerations
When picking an eccentric plug valve, think about your job. First, check what goes through your pipes. Some pipes carry abrasive slurries, chemicals, or wastewater. Each needs a different material. Stainless steel and hardened alloys are best for rough or high-pressure jobs. If you have corrosive fluids, use high-nickel alloys or special rubbers.
Check the pressure and temperature in your system. High pressure needs a strong valve that will not leak. Make sure the valve size fits your pipeline and flow rate. This helps your system work well and saves energy.
Think about how you will put in the valve. For slurry, put the valve sideways to stop dirt from piling up. If you use an actuator, line it up with the valve stem. This stops uneven wear. Always put the valve where you can reach it. This makes it easy to check and fix.
Tip: Check your valve often and keep it oiled. This helps it last longer and work better.
Selection Tips
Here are some steps to help you pick the right valve:

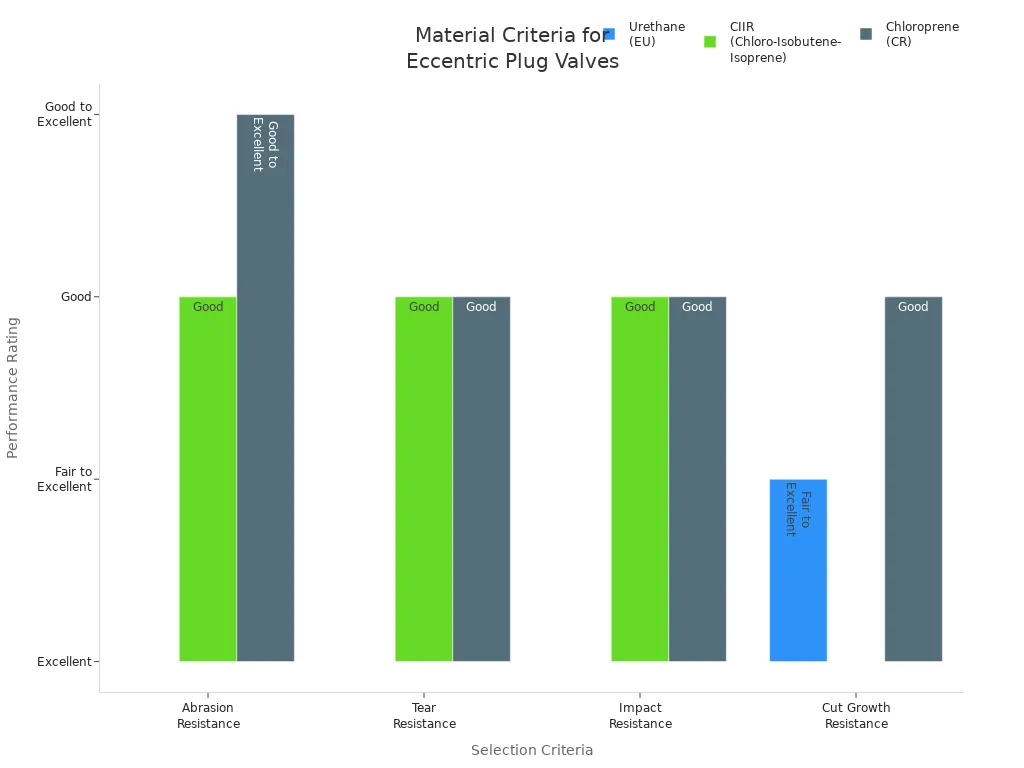

- Pick materials that match what flows in your pipes. Use the table below to see which ones resist wear and heat best.
| Material | Abrasion Resistance | Max Temperature |
|---|---|---|
| Urethane | Excellent | 175°F (80°C) |
| CIIR | Good | 250°F (122°C) |
| Chloroprene | Good to Excellent | 180°F (82°C) |
- Pick the right flow direction. For most rough jobs, let the flow hit the plug face. This keeps solids moving and protects the seat.
- Make sure the valve size fits your pipe and flow needs. A valve that is too big or small can waste energy.
- Plan for repairs. Put the valve where you can reach it. Check for leaks, oil moving parts, and change seals when needed.
- Think about using automation. Pick the actuator that works best for your job and control needs.
You can make your system safer and work better by following these tips. If you are not sure, ask an expert or the manufacturer for help.
Eccentric plug valves help stop wear in hard jobs. Their special plug design makes less rubbing. This helps the valve last longer, even with sand or thick fluids. You get a better seal and less time fixing things than with ball or butterfly valves.
- There is less rubbing and damage to moving parts.
- The valve can last up to three times longer in tough places.
- You do not need to fix it as much, so you save time and money.
| Resource Type | Description |
|---|---|
| Valve Basics Article | Tells how the valve works in mining and rough jobs |
| Selection Guides | Help you pick the best valve for your job |
| Product Bulletins | Share details and tips for taking care of the valve |
| CAD Drawings | Help you plan and put in the valve |
You can use these resources to learn more and pick the right valve for your plant. Eccentric plug valves work well and are dependable where you need them most.
FAQ
What makes an eccentric plug valve better for abrasive fluids?
You get less wear because the plug moves away from the seat when you open or close the valve. This design keeps rough particles from grinding the sealing surfaces. You see longer valve life and fewer repairs.
How do you choose the right material for your valve?
You should match the valve material to your fluid. For strong chemicals, pick high-nickel alloys. For sand or grit, use hardened steel or rubber linings. Always check temperature and pressure limits before you decide.
Can you use eccentric plug valves for thick slurries?
Yes, you can. The offset plug design lets solids pass through without clogging. The self-cleaning action helps keep the valve clear. You spend less time fixing blockages.
How often should you maintain an eccentric plug valve?
Check your valve every few months. Look for leaks or worn seals. Oil moving parts if needed. You will find that these valves need less maintenance than other types.
Do eccentric plug valves work with automation?
You can add actuators to these valves for remote control. This makes them easy to use in large plants. You get better safety and faster response
