Lubricated plug valves are very important in oil and gas work. Workers use these valves to control flow safely in tough places. Many oil and gas jobs use plug valves. About 45% of all plug valves are used in this field. The table below shows important usage facts:
| Aspect | Data / Percentage |
|---|---|
| Lubricated plug valves market share | About 22% of all plug valves in 2024 |
| Oil and gas sector plug valve usage | About 45% of all plug valves are used here |
| Middle East & Africa lubricated valve consumption | 28% of all lubricated plug valves are used here |
| Saudi Arabia, UAE, Qatar regional share | These countries use 65% of the region’s plug valves, mostly lubricated ones |
| Middle East oil & gas plug valve installations | 37% of petroleum plug valves are installed here |
| Number of oil and gas projects using plug valves (2023) | Over 1,200 projects around the world |
| Plug valves used in oil pipeline expansions (Middle East, 2023) | Over 75,000 valves were put in |

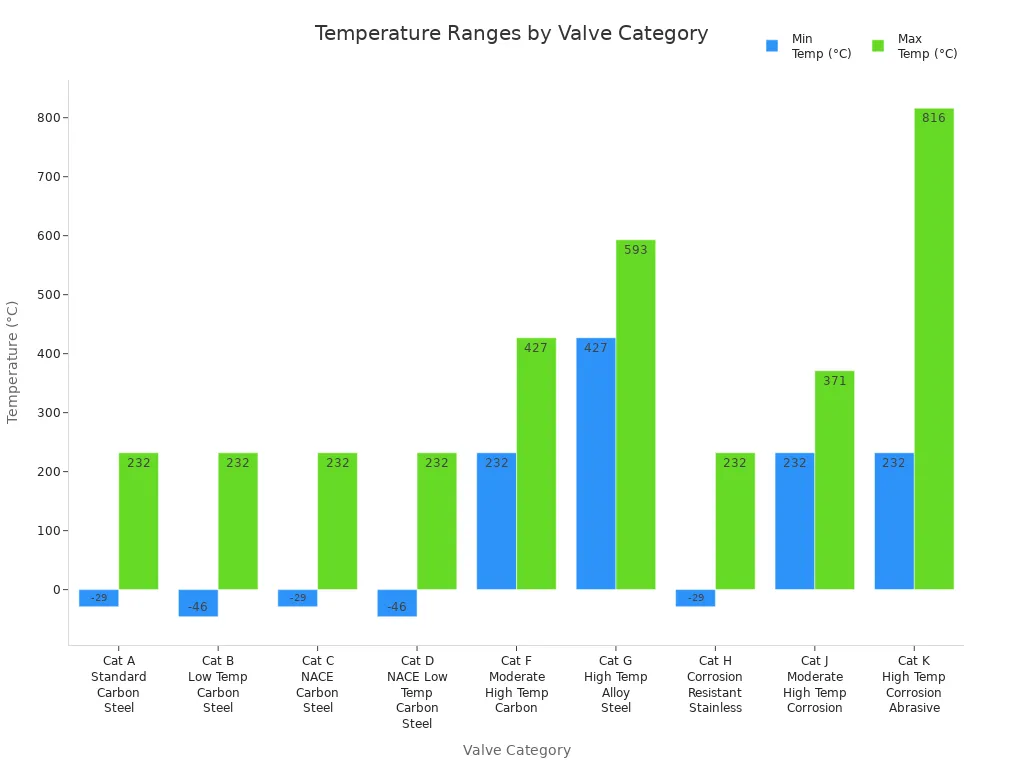

These valves can handle strong pressure and heat. The chart below shows how they work in different temperatures:
A lubricated plug valve is different from a non-lubricated one. The lubricated type lowers friction and stops rust. This is why people pick lubricated plug valves for important jobs.
Key Takeaways
- Lubricated plug valves help control flow safely in hard oil and gas places by lowering friction and stopping leaks. These valves can handle high pressure and very hot or cold temperatures. This makes them good for tough jobs. Regular lubrication and care keep the valves working well and help them last longer. Strong seals and special materials keep the valves safe from rust and damage. This helps them work for a long time. Picking the right valve size, material, and design helps workers keep oil and gas systems safe and working well.
Importance of Lubricated Plug Valves
Critical Role in Oil and Gas
Lubricated plug valves are very important in oil and gas work. They help control the flow of liquids in hard places. Workers use them when there is high pressure or very hot or cold temperatures. These valves have a special chamber for lubricant. The lubricant covers the plug all the time. This helps stop friction and keeps rust away. It also lets the valve work well, even if the liquid is rough or can cause rust.
- Lubricated plug valves can shut off flow very well. When closed, they do not let any liquid leak out. This is very important to stop dangerous leaks in oil and gas jobs.
- The valve turns quickly with just a quarter turn. This helps workers act fast in emergencies. It also means less waiting and safer work.
- These valves can handle big changes in pressure and temperature. That makes them good for tough jobs where fluids need to be controlled.
People who work in oil and gas trust these valves. They know the valves keep flow steady and stop leaks, even when things get really tough.
Industry Demands
Oil and gas companies have strict rules for their equipment. Lubricated plug valves meet these rules by following standards like API 6D, API 608, ASME B16.34, and ISO 9001. These rules make sure the valves work well and are safe.
Lubricated plug valves use special sealants. The sealant makes a strong, bendy layer between the plug and the valve body. This layer stops friction and damage. It also helps the valve last longer. Workers can add more lubricant when needed. This keeps the valve working right. These valves can handle high pressure, harsh liquids, and lots of use. That is why many people pick them for oil and gas work.
- Strong design lets the valve turn often and easily.
- The valve seals well, even with dangerous or harsh liquids.
- Special lubricants keep the seal strong and stop dirt from getting in.
These things make lubricated plug valves very important for safe and steady flow control in oil and gas jobs today.
Lubricated Plug Valve Design
Structure and Operation
A lubricated plug valve has a simple, strong build. It has a valve body, a plug, and a place for lubricant. The plug is shaped like a cone or a cylinder. This shape fits tightly in the valve body. It helps control how fluids move and makes a good seal. When you turn the plug, a hole lines up with the pipe. This lets fluid move through the valve. If you turn the plug again, it blocks the flow and closes the valve.
The cone-shaped plug makes it easier for fluids to move. It also lets workers turn the plug quickly. This shape helps stop leaks and keeps things safe. Some valves use a special plug that expands or moves off-center. These changes help the valve seal better and lower friction. Because of these features, people use lubricated plug valves in tough places with high pressure.
The materials used to make the valve are important. The table below lists common materials for these valves in oil and gas:
| Material | Description and Application |
|---|---|
| Cast Iron | Used for the body, works up to 175 psi (sizes 0.5-12 inch) |
| Aluminum | Used for the body |
| Carbon Steel | Used for the body |
| 316 Stainless Steel | Resists rust |
| Higher Alloys | Used for special needs |
| Ductile Iron | Works up to 285 psi (≤12 inch), 250 psi (>12 inch) |
Soft rubber linings can be added to protect against wear in harsh fluids.
Lubrication System
The lubrication system is very important for the valve. Small paths in the plug and body let lubricant reach all the seals. The lubricant makes a thin layer that cuts down friction. It also stops rust and helps the plug close tightly.
The lubrication chamber gives out lubricant as the valve works. This makes it easier to open and close the valve, even when pressure is high. It also means you do not need as much force to use the valve. The seal stays strong. Workers must check the lubrication system often to keep it working well. This care helps the valve last longer and wear out less. The system stops the valve from getting stuck and keeps fluid moving smoothly, even in hard oil and gas jobs.
Tip: Check the lubrication often to keep the valve working well and avoid problems in important jobs.
Key Features of Plug Valves
Sealing and Leak Prevention
Lubricated plug valves stop leaks very well. This is important in oil and gas work. The plug has a layer of grease or sealant on it. This layer sits between the plug and the valve body. There are also strong seals made of metal or elastic. These seals help keep leaks from happening, even when pressure is high. The grease helps the plug move easily and keeps the valve closed tight. This is good for safety and the environment.
Workers trust these valves to stop leaks in tough jobs. When the valve is shut, no fluid can get out. This is extra important when the fluid is dangerous or can cause rust. These valves keep a good seal, even if pressure or temperature changes. That is why people use them in pipelines, refineries, and chemical plants.
Note: Check the grease often to keep the valve working well and make it last longer.
Friction Reduction
Lubricated plug valves are made to lower friction. The plug moves smoothly, so it does not wear out fast. Each plug and valve body are matched to fit well. This helps the valve seal better and lowers friction.
- Special grease goes between the plug and valve body. This makes a thin oil layer that helps the valve turn with less force.
- Channels for the grease protect the parts that touch each other. This helps the valve last longer.
- Some valves have smooth or hard surfaces to stop rust and wear.
- Some designs use high-pressure oil to lift the plug. This makes it easier to turn and helps seal better.
- Smaller plugs and special flow paths also make the valve easier to open and close.
These things help the valve work fast and well, even when it is hot or under a lot of pressure. Lubricated plug valves can handle very high pressure and heat. They last longer and can be used many times. They also shut off quickly, which is important in emergencies.
Corrosion and Abrasion Resistance
Plug valves often work with rough or harsh fluids. Lubricated plug valves use strong materials and coatings to stop rust and wear. The table below shows some materials used to stop rust:
| Valve Type | Corrosion-Resistant Materials Used | Key Features and Application Context |
|---|---|---|
| Soft-Seated Plug Valves | F4, F46, PVDF, PP, PO, PE | Self-lubricating; used for corrosive, toxic, or hazardous media; long service life. |
| Oil-Lubricated Hard-Seated Plug Valves | STL alloy, surface hardening technology | Enhanced corrosion and wear resistance; suitable for high pressure and temperature. |
| Valve Body Materials | Carbon steel, alloy steel, stainless steel | Chosen for durability and corrosion resistance in harsh environments. |
Lubricated plug valves last longer than ball or gate valves in rough jobs. The grease between the plug and body cuts down on wear. This helps the valve work better and last longer. These valves seal tightly and work well under high pressure. They are good for thick or dirty fluids like mud or sewage. Their simple design makes them easy to fix, even if dirt builds up inside.
Plug valves have more good points:
- They open and close fast with a quarter turn.
- They let fluid flow both ways, so you can put them in either direction.
- They are small, so they fit in tight spaces.
- Fixing them is easy. You can change seals or bushings without stopping work for long.
These things make lubricated plug valves a smart pick for hard jobs. Workers get tight seals, long use, and steady work, even with rough or rusty fluids.
Applications of Plug Valves
Oil and Gas Operations
Plug valves are very important in oil and gas work. They help control flow and shut off pipes when needed. Lubricated plug valves are used a lot in oil pipes. They can handle high pressure and heat. Workers use them to turn flow on or off. They also help control how much oil or gas moves through pipes. These valves follow strict API rules like API 6D and API 6A. This means they are good for closing off pipelines and wellheads.
The main ways plug valves are used in oil and gas are:
- Shutting off pipelines for repairs or emergencies
- Controlling flow in big pipes and gathering lines
- Turning flow on or off in oil pipes and gas networks
- Handling thick fluids in early oil work
- Managing flow in high-pressure pipes and wellheads
Plug valves close tightly and work smoothly, even with rough or dirty fluids. Their design stops clogging and helps keep leaks from happening. Workers must keep them clean and oiled to work their best in hard jobs.
Workers trust lubricated plug valves because they keep flow safe and stop leaks, even in tough oil and gas places.
Other Industrial Uses
Plug valves are used in many jobs besides oil and gas. They shut off flow fast and seal well, so they are good for safety. Lubricated plug valves work with rough or dirty fluids, so they fit many uses.
Some common uses outside oil and gas are:
- Chemical plants, where strong chemicals and heat need tough valves
- Water and wastewater plants, which need fast shutoff for safety
- HVAC systems, where flow must be controlled exactly
- Moving thick fluids like asphalt or ore in mining and building
- Moving natural gas, propane, or digester gas
- Other jobs that need tight shutoff and no clogging
In chemical and water plants, workers pick lubricated plug valves because they lower friction and close tight with less effort. These valves can handle thick or dirty fluids and last in hard places. Keeping them clean and oiled helps them work well, but they are strong and last a long time in tough jobs.
The table below shows some common ways plug valves are used in different jobs:
| Industry | Common Uses and Applications |
|---|---|
| Oil and Gas | Pipeline shutoff, flow control, wellhead work |
| Chemical Processing | Handling strong chemicals, hot fluids |
| Water/Wastewater Treatment | Fast shutoff, flow control, safety |
| Mining and Construction | Moving thick fluids, liquid asphalt control |
| HVAC | Balancing systems, exact flow control |
| Gas Distribution | Natural gas, propane, digester gas control |
Plug valves help keep fluids moving safely in many jobs. Their strong build and many uses make them a top pick for easy and hard work.
Maintenance and Selection
Maintenance Best Practices
Taking care of plug valves helps them work well and last longer. Good maintenance stops leaks and keeps the valve safe in oil and gas jobs. Workers should do these things:
- Flush the valve to get rid of dirt and junk. This helps the plug move without sticking.
- Add lubricant to moving parts. This lowers friction and helps the valve last.
- Check and change seals to stop leaks and keep pressure steady.
- Look at the packing gland to make sure it is not leaking.
- Clean the valve body and plug. This stops buildup that can hurt seals or liners.
- Use backup systems and flow controls to keep things running and avoid shutdowns.
Tip: Workers should use a checklist for regular care. They should also install the valve the right way. Do not open and close the valve too much if it is not made for that.
Picking strong materials, like Hastelloy C276 with tungsten carbide, helps the valve seal and stops rust. New ways of making valves, like mirror grinding and helium leak checks, help stop leaks and keep the valve closed tight. After you buy the valve, special cleaners and smart monitors can help lower care costs and stop problems.
Selection Criteria
Picking the right plug valve for oil and gas work is important. Here is a checklist to help choose the best one:
- Valve Size and Pressure Rating: Make sure the valve fits the pipe. The pressure rating must be high enough for the job. Some oil-sealed conical plug valves work up to Class 7500 and 900 mm wide.
- Material Compatibility: Pick materials that do not rust or wear out from the fluid. Stainless steel with molybdenum fights pitting corrosion.
- Sealing System Reliability: Choose valves with good grease systems and many seal layers. This keeps the valve shut tight, even when it gets hot or cold.
- End Connection Types: Make sure the valve matches the pipe ends. It can be threaded, welded, or flanged.
- Ease of Operation: Bolt covers and pressure balance parts make the valve easier to turn, even under high pressure.
- Maintenance Requirements: Pick valves that are easy to grease and fix. This makes care simple and helps the valve last.
- Application Suitability: Make sure the valve can handle the fluid, heat, and pressure in oil and gas jobs.
Note: If you cannot add grease often, use non-lubricated plug valves.
This checklist helps workers pick plug valves that work well, stop leaks, and last a long time in oil and gas jobs.
Lubricated plug valves seal well and work fast. They last a long time in oil and gas jobs. Their strong build lets them handle high pressure and heat. This makes them a good pick for hard places. Workers should pick the right valve and take care of it often. They also need to keep learning how to use it. Groups like API, ASME, and ISO give helpful rules. Learning about new tools and rules helps teams stay safe and work better for a long time.
FAQ
What is the main advantage of a lubricated plug valve?
Lubricated plug valves seal tightly. They work well when pressure or heat is high. The lubricant helps stop friction and leaks. This makes them a good choice for oil and gas jobs.
How often should workers lubricate plug valves?
Workers need to check and add lubricant during regular care. How often depends on how much the valve is used and the fluid type. Most oil and gas places say to check every few months.
Can lubricated plug valves handle corrosive fluids?
Yes, these valves use special coatings and materials. The lubricant also helps stop rust and wear. They work well with rough or harsh fluids in oil and gas fields.
Are lubricated plug valves easy to repair?
Most lubricated plug valves are easy to fix. Workers can change seals or add lubricant without taking the valve out of the pipe. This saves time and keeps work going.
What standards do lubricated plug valves meet?
Lubricated plug valves in oil and gas often meet API 6D, API 608, and ASME B16.34 standards. These rules help make sure the valves are safe, good quality, and work well in hard jobs.
