Regular maintenance helps lubricated plug valves work well and stay safe. Many industries use these valves. They help control flow in gas, oil, steam, wastewater, and chemical pipes. Lubricated plug valves can handle tough jobs. They work with sewage, mud, or other rough materials. If you take care of these valves, you stop leaks. You also save money and keep your equipment safe.
Common uses for lubricated plug valves include:
- Flow control or isolation to stop contamination
- Handling rough or harmful materials
- High-pressure flow lines in natural gas, water, and chemical industries
Key Takeaways
- Check lubricated plug valves often to find rust, leaks, wear, and dirt early. This helps stop damage before it starts.
- Use the correct grease often. This keeps valves moving well and protects them from rust and wear.
- Change seals if they are cracked, worn, or leaking. This stops leaks and helps valves work right.
- Clean valves inside and outside to get rid of dirt and buildup. Dirt and buildup can make valves stick and break.
- Follow safety rules. Use valves with care. Store them the right way to help them last longer and avoid expensive repairs.
Lubricated Plug Valves Maintenance
Inspection
You need to check Lubricated Plug Valves often. Most experts say to check them every six months if you use them a lot. If you do not use them much, check once a year. In tough places or with rough fluids, check more often. When you look at the valve, watch for:
- Rust, scale, or corrosion on the valve body
- Cracks, dents, or chips on the surface
- Erosion, pitting, or uneven wear on inside parts like plugs, seats, and discs
- Leaks around the valve body or packing area
- Sticking or hard turning, which can mean dirt or not enough grease
- Worn or crooked plugs and valve seats
- Seals and gaskets that are cracked, hard, or not lined up right
- Corrosion or wear on the stem and packing
Tip: Always check if there is enough grease when you inspect. Grease helps stop damage and makes the valve work better.
Lubrication
Greasing is very important for Lubricated Plug Valves. You should grease new valves before using them. For valves you use a lot, grease them every six months. If you do not use the valve much, grease it once a year. In hot or harsh places, grease more often.
Use grease made for high pressure and tough jobs. Synthetic grease and sealants work best because they stop rust and make turning easier. Here is a table of common greases for high-pressure plug valves:
| Lubricant Name | Key Features | Application Suitability |
|---|---|---|
| Chemola™ Desco 1055 | Premium synthetic, resists hydrocarbons, water, acids; solid lubricants; up to 600°F | High-pressure, extreme conditions |
| Chemola™ Desco 955 | Synthetic with molybdenum disulfide; solid lubricants; up to 600°F | Extreme pressure applications |
| Chemola™ Desco 750 | 100% synthetic oils; solid lubricants; up to 900°F | High temperature and pressure |
| Chemola™ Desco 600 | Synthetic, resists hydrocarbons and water | Non-sour high-pressure services |
| Chemola™ Desco 111 (HS) | For sour gas (H2S); high adhesion, corrosion resistance | Sour gas high-pressure valves |
| Chemola™ Desco TFE-Seal 108 | Premium sealant, synthetic base, washout resistant | Damaged high-pressure valves |
| Chemola™ Desco TFE-Seal 110X | Synthetic base, PTFE, excellent sealing | Worn, leaking high-pressure valves |
Note: Always use the grease the maker says to use. Follow their steps for putting it on.
Seal Replacement
Seals keep Lubricated Plug Valves from leaking. You should check seals every time you inspect the valve. Change seals if you see:
- Cracks, hard spots, or if they break easily
- Leaks around the valve body or stem
- Seals that are not lined up or have worn surfaces
- Old or rotting non-metal seals
Seals can fail if you use the wrong kind, put them in wrong, or if they get old or damaged. If you see any of these problems, change the seals right away to stop leaks and keep the valve working.
Tip: Pick seals that fit your valve’s heat and chemical needs.
Cleaning
Cleaning helps Lubricated Plug Valves last longer. Dirt and dust can hurt the valve. Clean both the inside and outside of the valve. For hard dirt, use cleaners like VAL-FIX Valve Cleaner/Lubricant or LVF Liquid Valve Flush. These cleaners break up old grease and solids but do not hurt the valve.
- Take out dirt and buildup from inside parts
- Clean valve seats, plugs, and sealing areas
- Use safe cleaners that do not have acids or strong chemicals
- Wash out the valve after cleaning to get rid of leftover cleaner
Cleaning often stops rust, sticking, and damage. It also gets the valve ready for new grease.
Note: Cleaning is extra important for valves that see slurries or solids.
Stem Packing
Stem packing stops leaks around the valve stem. You should check the packing for wear, tightness, and if it is put in right. Common packing materials are PTFE (Teflon®), graphite, elastomers like EPDM or Buna-N, and carbon fiber. Each one has its own good points:
| Material | Key Properties and Uses |
|---|---|
| PTFE (Teflon®) | Low friction, works in many temperatures, does not react with chemicals |
| Graphite | Handles very high heat, but does not last as long as PTFE |
| Elastomers | Flexible, easy to put in, good for many chemicals; types include EPDM, Fluoroelastomer, Buna-N, Silicone |
| Carbon Fiber | Strong, stiff, good for high pressure and heat changes |
Tighten the packing gland so it fits well, but do not make it too tight. Change the packing if you see leaks, rust, or if it gets soft.
Tip: Always use the right packing for your valve’s job.
Troubleshooting Issues
Leakage
Sometimes, Lubricated Plug Valves can leak during use. There are many reasons why this happens. Here are the main ones:
- Seals or gaskets get old or used a lot.
- Harsh fluids can cause rust or wear.
- Vibration or pressure changes can make cracks.
- If you install it wrong, it might not fit right.
- Skipping maintenance lets small issues get worse.
- Not enough grease makes parts rub and wear out.
- Using the wrong seal or gasket for your job.
You might see liquid near the valve if it leaks. You could hear a hissing noise or see the pressure drop. Special tools like heat cameras or sensors can help find leaks early.
Tip: First, check if the actuator and valve are lined up right. If it still leaks, look at the plug and seats for damage. Some valves do not close all the way, so you may need a special valve for a perfect seal.
Contamination
Contamination can cause big trouble in your valve system. Dirt, bits of stuff, or fluids can get inside the valve. This can make the valve stick or not seal well. Sometimes, the valve can even stop working. You might see dirty or cloudy fluid. The valve might also be hard to turn.
To stop contamination:
- Clean the valve and area before you open it.
- Use the right cleaners to wash away buildup.
- Change filters and strainers often in your system.
- Make sure seals and gaskets fit tight to keep dirt out.
Note: Cleaning and maintenance help keep your Lubricated Plug Valves clean and working well.
Wear and Damage
Wear and damage can make your valve not last as long. You might see scratches, pits, or rust on the plug or seats. If the valve is hard to turn, it needs help.
Common ways to fix these problems are:
- Clean and grease the valve to stop rubbing.
- Change seats and seals if they are worn or broken.
- Line up valve parts again to fix stiffness.
- Put on coatings to stop rust.
- Use lubricant sticks to keep things moving.
Always check if the valve is put in right and tightened enough. Doing regular checks and greasing helps your valve work well and stops future problems.
Maintenance Procedures
Safety
You must always think about safety before working on Lubricated Plug Valves. Wear gloves, goggles, and protective clothing. Make sure the valve is not under pressure. Lock out and tag out the system to stop accidental movement. Use the right tools for the job. Check for leaks or dangerous fluids before you start. If you see damage, do not touch the valve until you know it is safe.
Tip: Always follow your company’s safety rules and local regulations.
Cleaning Steps
Cleaning keeps your valve working well. Here is what you should do:
- Wipe dust, oil, and residue from the valve surface, especially on threads, stems, and moving parts.
- Use a brush or compressed air to remove dirt from the outside and moving parts.
- Clean threads with a rag to get rid of grime.
- Remove oil and sticky residue with steam or a copper wire brush until the metal shines.
- Open plugs at the bottom of flush valves to wash out debris and prevent clogs.
- Inspect and clean steam trap valves at least once per shift.
- After cleaning, check that all parts are dry and free from cleaner.
Note: Clean valves last longer and work better.
Lubrication Steps
Lubrication helps your valve move smoothly. Follow these steps:
- Find the lubrication injection port on the valve.
- Insert a lubricant stick into the port.
- Apply pressure as the manufacturer suggests to spread the lubricant evenly.
- Check lubrication levels often and replace sticks when needed.
- Use the right lubricant for your valve’s temperature and job.
Lubricate moving parts like threads, gears, and bearings. For high-temperature valves, use molybdenum disulfide or graphite powder instead of grease.
Testing
Testing shows if your valve works right after maintenance. You should:
- Open and close the valve fully to check for smooth movement.
- Test for leaks by using water or air pressure.
- Cycle the actuator and check speed and torque.
- Operate the valve by hand to feel for sticking.
- Adjust flow and pressure to see if the valve controls them as designed.
- Inspect for damage, wear, and alignment.
- Confirm that all seals hold under both low and high pressure.
Good testing proves your Lubricated Plug Valves are safe and reliable.
Extending Valve Life
Operation
You can make your valves last longer by using the right handling methods. Good operation keeps Lubricated Plug Valves working smoothly and helps you avoid costly repairs. Here are some best practices:
- Lubricate moving parts like the valve stem on a regular schedule. This reduces friction and stops parts from wearing out.
- Always use lubricants that match the valve’s materials and the job’s temperature or pressure.
- Do not over-tighten the valve. Too much force can bend parts or strip threads.
- Train everyone who uses the valve. Teach them how to open and close it the right way and how to spot signs that maintenance is needed.
- Fix small problems early. Replace worn parts before they cause bigger issues.
- Adjust your maintenance routine if you work with hot, corrosive, or gritty fluids. Use special materials and extra protection when needed.
- Clean the valve before you add new grease. Dirt and debris can cause damage.
- Never force a stuck valve. Clean and maintain it instead.
Tip: Careful operation helps prevent leaks and keeps your system safe.
Storage
Proper storage protects your valves from damage when not in use. Follow these steps to keep Lubricated Plug Valves in top shape:
- Store valves in a clean, dry place with temperatures between -10°C and 30°C.
- Keep humidity between 40% and 60% to stop rust.
- Avoid packaging that creates static electricity.
- Use covers or packaging that block sunlight to protect coatings.
- Apply rust inhibitors if you plan to store valves for a long time.
- Check and reapply anti-rust coatings every year. Make sure the valve is clean and dry first.
- Use the right lubricant on all moving parts before storage.
Note: Good storage stops corrosion and keeps valves ready for use.
Professional Help
Sometimes, you need expert help to keep your valves working well. Call a professional if:
- Small leaks do not stop after you add grease or adjust the valve.
- You cannot get a good seal, even after trying basic fixes.
- You need to inject a heavier sealant and want advice from the manufacturer.
- The valve fails a pressure test.
- Heavier sealant does not fix the leak, and you must decide whether to repair or replace the valve.
Remember: Getting help early can save you time and money.
You can help Lubricated Plug Valves last longer by doing a few easy things. Check the valves often, clean them, and use the right grease. This stops damage and leaks from happening. Doing these steps gives you many good results over time:
- The valve moves easier and lasts longer
- There are fewer problems and breakdowns
- You spend less money fixing things
- The system is safer and works better

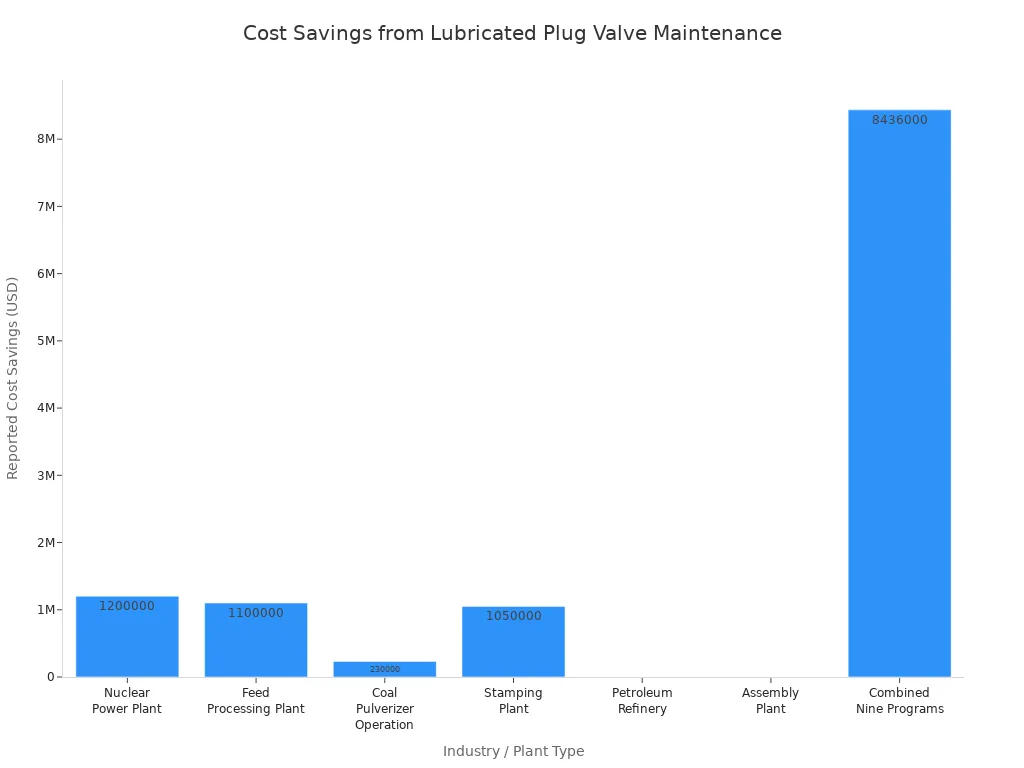

Many businesses say they save a lot of money by doing this:
| Industry / Plant Type | Reported Cost Savings / Cost Avoidance | Key Savings Drivers |
|---|---|---|
| Nuclear Power Plant | Over $1.2 million avoided outage costs | Avoided 3 days downtime, oil disposal, labor |
| Feed Processing Plant | Approximately $1.1 million cost avoidance | 50% less downtime, fewer repairs, contamination control |
| Coal Pulverizer Operation | $230,000 saved in first year | Reduced breakdowns, condition-based oil changes |
| Stamping Plant | Estimated $1,050,000 (maintenance + lost production avoided) | Early detection of fatigue and shear failures |
| Petroleum Refinery | Reduced failure-related work orders by 1/3 | Less downtime and repairs |
| Assembly Plant | 700% ROI with 3-month payback period | Improved lubrication quality, extended oil drain intervals |
| Combined Nine Programs | $8,436,000 total cost avoidance from ~10,000 samples annually | 55% less downtime, 30% fewer repairs, 15% reduced consumables |
Keep checking and caring for your valves. If you have a hard problem, ask an expert for help. This will help your valves work better and save you money in the long run.
FAQ
What is a lubricated plug valve?
A lubricated plug valve is a type of valve that uses grease or oil to help the plug move smoothly inside the valve body. You use it to control the flow of liquids or gases in pipelines.
What happens if you do not maintain a lubricated plug valve?
If you skip maintenance, the valve can get stuck or start leaking. You might see rust, worn parts, or even a broken valve. Regular care helps you avoid costly repairs and keeps your system safe.
What kind of lubricant should you use?
You should always use the lubricant recommended by the valve manufacturer. The right grease or oil protects the valve from rust and wear. Using the wrong product can damage the valve or cause leaks.
What signs show a lubricated plug valve needs repair?
You might notice leaks, hard turning, or strange noises. Sometimes, you see rust or worn seals. If you spot these signs, you should inspect and fix the valve right away.
What is the best way to clean a lubricated plug valve?
You should use a soft brush or cloth to remove dirt. For tough buildup, use a valve-safe cleaner. Always rinse and dry the valve before adding new lubricant.
