Cast-Iron / Ductile-Iron Plug Valve
Cast-iron and ductile-iron plug valves offer an economical solution for low-pressure water distribution and HVAC systems. They provide stable operation while keeping the equipment investment low.
NTGD Cast-Iron/Ductile-Iron Plug Valve
Designers and engineers select valves that balance performance and budget for water treatment, HVAC, and general industrial pipelines. The cast iron plug valve provides a cost-effective shut-off solution for low to medium pressure systems. Ductile iron models offer enhanced durability and strength, meeting higher mechanical requirements. NTGD delivers a comprehensive range of pressure ratings, material grades, and connection types. Customization ensures each valve matches project specifications and service conditions.
Key Features
- Cast iron plug valves offer a cost-effective solution for low to medium pressure systems, making them ideal for budget-sensitive projects.
- Ductile iron plug valves provide enhanced durability and strength, suitable for higher pressure and more demanding applications.
- The simple quarter-turn operation of plug valves allows for quick shut-off and reliable isolation in pipeline systems.
- Routine maintenance is straightforward, helping to minimize downtime and ensure long-term reliability of the valves.
- Engineers should choose between cast iron and ductile iron based on specific project requirements, including pressure, temperature, and fluid characteristics.
- NTGD offers a range of customization options, including size, connection types, and special coatings to meet unique project needs.
- Both lubricated and non-lubricated plug valve designs are available, allowing for flexibility based on maintenance strategies and fluid types.
- NTGD’s commitment to quality assurance ensures that all plug valves meet industry standards for safety and performance.
Cast-Iron / Ductile-Iron Plug Valve Basics
Structure and Operation
A plug valve uses a cylindrical or tapered plug to control fluid flow. The plug rotates within the valve body, allowing for a quarter-turn operation. This design enables rapid shut-off and reliable isolation in pipeline systems. Engineers favor plug valves for their simple structure and minimal moving parts. The valve’s unobstructed flow path reduces pressure drop and supports efficient operation in water, air, and light industrial fluid applications.
Operators achieve open or closed positions with a 90-degree turn of the handle or actuator. The plug’s geometry ensures tight sealing against the valve seat, minimizing leakage. Maintenance teams benefit from straightforward disassembly and reassembly, which streamlines inspection and servicing routines. The cast iron plug valve and ductile iron plug valve both utilize this robust mechanism, supporting consistent performance in low-to-medium pressure environments.
Cast Iron vs Ductile Iron Materials
Material selection directly influences valve durability, pressure rating, and application suitability. Cast iron and ductile iron represent two primary choices for plug valve construction. Each material meets specific ASTM standards, ensuring consistent quality and traceability.
ASTM Material Standards for Plug Valves:
Cast iron plug valves typically use ASTM A126 class B material. This grade provides high hardness and excellent wear resistance, making it suitable for rigid, low-pressure applications. Ductile iron plug valves utilize ASTM A536 grade 65-45-12, which offers superior impact resistance and ductility. These properties support higher pressure ratings and greater reliability in demanding service conditions.
- Ductile iron plug valves are pressure rated to 200 PSI with ANSI B16.1 150# flanges.
The following table compares key mechanical properties:
Engineers select cast iron plug valve for cost-sensitive projects with moderate mechanical demands. Ductile iron plug valve suits installations requiring enhanced toughness and flexibility. Both materials deliver reliable shut-off and long service life when specified according to system requirements.
Cast Iron Plug Valve Features
Cost-Effectiveness
Engineers often select cast iron plug valve solutions for projects where budget constraints and operational reliability are both critical. The manufacturing process for cast iron allows for efficient production at scale, resulting in lower unit costs compared to alternative materials. This cost advantage becomes especially significant in large-scale water treatment, HVAC, and utility distribution networks. Cast iron plug valve products deliver robust shut-off performance without inflating project budgets, making them a preferred choice for low-pressure and non-aggressive fluid systems.
Pressure Ratings and Applications
Cast iron plug valve designs target low-to-medium pressure environments. The material’s inherent strength supports consistent operation in municipal water, air, and light industrial fluid pipelines. Typical pressure ratings for these valves align with industry standards, ensuring compatibility with most pipeline systems.
Most installations in water treatment and HVAC systems use valves within the ½” to 12″ range, rated at 175 psi CWP. This pressure class covers the majority of municipal and commercial applications. Cast iron plug valve units handle potable water, air, and non-corrosive liquids with reliability. Their design also accommodates intermittent service and frequent cycling, which are common in utility and process control systems.
Maintenance and Installation
Routine maintenance ensures long-term reliability and optimal performance of cast iron plug valve assemblies. Maintenance teams benefit from straightforward inspection and servicing procedures, which minimize downtime and operational disruption. The following table outlines typical maintenance tasks:
Installation of cast iron plug valve products remains straightforward due to their compact structure and standard connection options. Flanged and threaded ends integrate seamlessly with most pipeline layouts. The simple quarter-turn operation reduces actuator requirements and simplifies manual operation. Maintenance intervals can be tailored to system criticality, fluid characteristics, and operational frequency, supporting efficient asset management in industrial and municipal settings.
Ductile Iron Plug Valve Features
Durability and Strength
Ductile iron plug valves deliver robust mechanical performance in demanding pipeline environments. NTGD manufactures these valves using ASTM A536 grade 65-45-12, which provides a unique combination of strength, ductility, and resistance to impact. The microstructure of ductile iron allows the material to flex under stress, reducing the risk of sudden breakage. This flexibility distinguishes ductile iron from traditional cast iron, especially in applications subject to pressure fluctuations or mechanical vibration.
The following table summarizes key durability characteristics:
Ductile iron plug valves also demonstrate superior resistance to mechanical shock and thermal cycling. These properties ensure reliable shut-off and long-term operation in municipal, industrial, and utility systems.
Pressure and Temperature Range
Ductile iron plug valves support higher pressure and temperature ratings than cast iron alternatives. The material’s enhanced tensile strength—typically 40,000 psi—enables safe operation in more demanding service conditions. This advantage allows engineers to specify ductile iron plug valves for installations where system pressures or temperature variations exceed the limits of cast iron valves.
NTGD ductile iron plug valves conform to industry pressure classes, including Class 150 and Class 300. The following table outlines typical maximum ratings:
Many NTGD ductile iron plug valves, such as the SOVAL 1030 Series, are rated to 200 PSI, making them suitable for a wide range of municipal and industrial systems. The ability to withstand elevated pressures and temperature swings ensures consistent performance in critical service.
- Ductile iron plug valves maintain sealing integrity under frequent cycling and thermal expansion.
- The material’s structure resists deformation, even during pressure surges.
Application Scenarios
Engineers specify ductile iron plug valves for systems that demand both mechanical resilience and operational reliability. These valves perform well in environments where pressure, temperature, or flow conditions may fluctuate. Typical application scenarios include:
- Water treatment plants handling raw, treated, or reclaimed water
- Wastewater collection and distribution systems
- HVAC networks requiring robust shut-off under variable load
- Industrial pipelines transporting air, gas, or light process fluids
- Utility systems exposed to outdoor conditions or mechanical vibration
Ductile iron plug valves also suit installations where maintenance access is limited, as their durability reduces the frequency of intervention. The combination of high strength, corrosion resistance, and adaptability to pressure variations makes these valves a preferred choice for critical infrastructure and process control.
Note: NTGD offers ductile iron plug valves in a range of sizes and configurations, supporting both standard and custom project requirements.
NTGD Valve Configurations
Lubricated vs Non-Lubricated
NTGD manufactures both lubricated and non-lubricated plug valve designs to address a range of service conditions. Lubricated plug valves use a sealing compound injected between the plug and body. This compound reduces friction, enhances sealing, and extends service life in applications with frequent cycling or abrasive media. Maintenance teams can re-lubricate these valves in-line, which supports long-term reliability in water treatment and industrial systems.
Non-lubricated plug valves, such as sleeve plug valves, feature a resilient sleeve or lining between the plug and body. This design eliminates the need for periodic lubrication. Operators select non-lubricated models for clean water, air, or non-aggressive fluids where minimal maintenance is a priority. Both types deliver rapid shut-off and low torque operation, but the choice depends on the medium, frequency of operation, and maintenance strategy.
NTGD’s product range includes several specialized configurations:
- 3 Way Plug Valve
- Sleeve Plug Valve
- Lubricated Plug Valve
Each configuration supports specific flow patterns and operational requirements. For example, 3-way plug valves enable flow diversion or mixing, while sleeve plug valves provide enhanced corrosion resistance.
Connection Types: Flanged, Threaded, Welded
NTGD offers multiple end connection options to ensure compatibility with diverse pipeline systems. Flanged plug valves remain the most common choice for municipal water, HVAC, and industrial applications. Flanged ends simplify installation, provide robust sealing, and allow for easy removal during maintenance.
Threaded plug valves suit smaller diameter pipelines and systems where rapid assembly is required. These valves integrate seamlessly into existing threaded pipework, reducing installation time. Welded end plug valves provide a permanent, leak-tight connection for critical or high-integrity applications. Welded connections minimize potential leak paths and withstand vibration or pressure cycling.
Engineers select the appropriate connection type based on system pressure, pipe material, and installation environment. NTGD ensures all connection types meet relevant standards for dimensional accuracy and sealing performance.
Size Range and Custom Options
NTGD supplies cast iron plug valve and ductile iron plug valve products in a comprehensive range of sizes, typically from ½ inch to 12 inches (DN15–DN300). This range covers most requirements in water treatment, HVAC, and general industrial pipelines. For projects with unique specifications, NTGD provides custom sizing, port configurations, and actuation options.
The following table summarizes key selection and customization criteria:
NTGD maintains full traceability for all plug valve products, from raw material sourcing to final inspection. This approach ensures consistent quality and supports compliance with project documentation requirements. Custom orders can include special coatings, extended stem designs, or integration with automation systems. NTGD’s engineering team collaborates with clients to deliver plug valve solutions tailored to specific operational and installation needs.

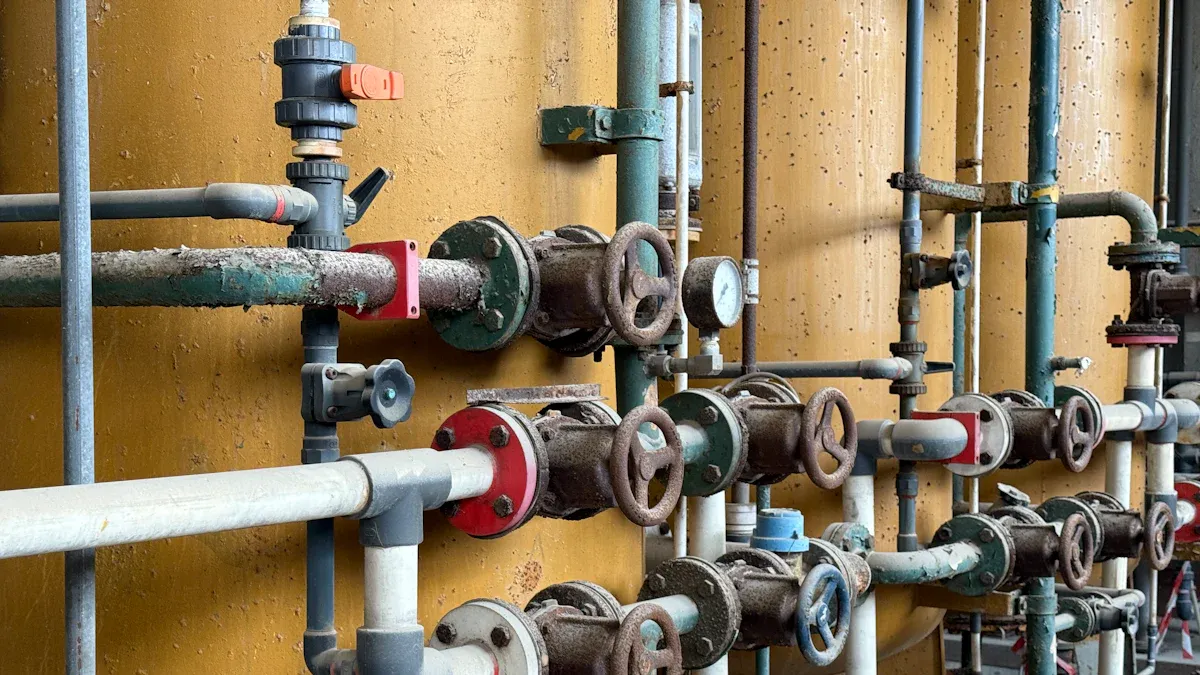

Typical Applications
Water Treatment and Wastewater
NTGD plug valves play a critical role in water treatment and wastewater systems. Operators rely on these valves for rapid shut-off and precise flow control in both raw and treated water pipelines. Cast iron plug valve models suit municipal water distribution, where cost-effectiveness and reliability are essential. Ductile iron plug valves handle higher pressures and variable flow conditions in wastewater treatment plants. Engineers specify these valves for safety isolation, pump station control, and chemical dosing lines. The robust sealing mechanism ensures minimal leakage, supporting compliance with environmental standards.
Tip: Routine inspection and preventive maintenance extend service life in corrosive or high-cycle wastewater environments.
HVAC and Utility Systems
Heating, ventilation, and air conditioning networks require dependable valve solutions for balancing and isolation tasks. NTGD plug valves provide fast operation and low torque requirements, making them suitable for chilled water, condenser water, and air handling units. Ductile iron plug valves withstand thermal cycling and vibration, maintaining performance in utility tunnels and mechanical rooms. Flanged and threaded connections simplify integration with existing pipework. Facility managers select these valves for their straightforward installation and minimal maintenance needs.
- Plug valves support exact flow control in balancing loops.
- Lubricated designs reduce wear in systems with frequent actuation.
Industrial and Air/Gas Pipelines
Industrial sectors demand robust valve performance under diverse operating conditions. NTGD plug valves serve oil and gas, chemical processing, mining, and construction applications. The following table summarizes common uses across industries:
Engineers select ductile iron plug valves for pipelines transporting air, natural gas, and process fluids. The valves maintain sealing integrity during pressure surges and temperature fluctuations. Lubricated plug valves account for approximately 22% of all plug valve installations in 2024, reflecting their popularity in abrasive and high-cycle environments. Oil and gas projects represent nearly 45% of global plug valve usage, with over 1,200 active installations worldwide.
Note: NTGD plug valves deliver reliable shut-off and operational efficiency in critical infrastructure, supporting safe and cost-effective pipeline management.
Selection Guide
Choosing Cast Iron or Ductile Iron
Engineers evaluate several factors when selecting between cast iron plug valve and ductile iron plug valve for pipeline systems. Material choice impacts valve performance, longevity, and compliance with project specifications. The following considerations guide the selection process:
- Operating pressure and temperature requirements determine the appropriate valve material. Cast iron suits low-pressure, low-temperature applications. Ductile iron accommodates higher pressures and a broader temperature range.
- Fluid characteristics influence material compatibility. Water, air, and non-aggressive fluids align with cast iron plug valve. Ductile iron plug valve resists corrosion and erosion, making it suitable for steam, gas, oil, and abrasive media.
- Environmental conditions, such as exposure to chemicals or outdoor installation, require enhanced durability. Ductile iron offers superior impact resistance and flexibility under mechanical stress.
- Regulatory standards and safety codes may specify material grades for certain industries. Compliance ensures safe and reliable operation.
- Project budget and lifecycle cost affect material selection. Cast iron provides cost-effective solutions for routine service. Ductile iron delivers long-term value in demanding environments.
Tip: Review system pressure, fluid type, and installation environment before specifying plug valve material.
Lubricated vs Non-Lubricated Selection
The choice between lubricated and non-lubricated plug valve designs depends on maintenance strategy, fluid properties, and operational frequency. Lubricated plug valves feature a sealing compound that reduces friction and supports frequent cycling. These valves perform well in systems with abrasive or contaminated media. Maintenance teams can re-lubricate the valve in-line, extending service life.
Non-lubricated plug valves use a resilient sleeve or lining to achieve a tight seal. This design minimizes maintenance requirements and suits clean water, air, or non-aggressive fluids. Operators select non-lubricated models for installations where downtime must be minimized.
Note: Lubricated plug valves offer enhanced sealing in challenging conditions. Non-lubricated models simplify maintenance for standard service.
Specifying Size and Connection
Accurate specification of size and connection type ensures seamless integration with existing pipeline infrastructure. NTGD supplies plug valve products in sizes ranging from ½ inch to 12 inches (DN15–DN300). Engineers match valve size to pipeline diameter and flow requirements.
Connection options include flanged, threaded, and welded ends. Flanged connections provide robust sealing and facilitate maintenance. Threaded ends suit small-diameter pipelines and rapid assembly. Welded connections deliver leak-tight performance in critical applications.
Procurement teams should confirm pressure rating, material grade, and end connection when ordering NTGD plug valves. Detailed project documentation supports traceability and compliance with industry standards.
Tip: Consult NTGD technical support for assistance with custom sizing, connection selection, or special project requirements.
NTGD Quality Assurance
Material Sourcing and Processing
NTGD sources raw materials from certified suppliers, selecting grades that meet ASTM standards for cast iron plug valve and ductile iron plug valve production. The procurement team verifies each batch for chemical composition and mechanical properties. Material traceability remains a priority throughout the supply chain. NTGD applies controlled melting and casting processes to achieve uniform microstructure and dimensional accuracy. The foundry team monitors temperature and cooling rates to minimize internal stresses and defects. Each casting undergoes visual and ultrasonic inspection before entering the machining phase. This approach ensures that every plug valve body meets the required strength and durability for water treatment, HVAC, and industrial pipeline applications.
Machining and Finishing
Precision machining defines the quality of NTGD plug valves. The manufacturing team employs advanced equipment to achieve tight tolerances and optimal surface finishes. The following table outlines key machining and finishing processes:
Operators use reaming and grinding to achieve exact fit between plug and body, reducing the risk of leakage. Lapping produces a mirror-like finish on sealing surfaces, improving shut-off reliability for both cast iron plug valve and ductile iron plug valve models. Shell testing confirms the structural integrity before final assembly. Frazing adds a protective layer, extending service life in abrasive or corrosive environments. These processes support consistent performance and minimize maintenance requirements in field installations.
Testing and Certification
NTGD implements a comprehensive testing protocol for every plug valve. The quality control team conducts hydrostatic and pneumatic pressure tests to validate strength and leak-tightness. The following table summarizes the main testing and certification procedures:
Inspectors perform seat leakage and bubble tests to confirm sealing performance under real-world conditions. Operational testing assesses the ease of actuation and verifies alignment. NTGD documents all test results and issues certificates of compliance for each cast iron plug valve and ductile iron plug valve. This rigorous approach ensures that every product meets industry standards for safety, reliability, and traceability.
Custom Orders
NTGD recognizes that standard plug valve configurations may not always meet the unique requirements of every project. The engineering team supports custom orders for both cast iron plug valve and ductile iron plug valve products. Clients often request modifications to address specific installation, operational, or environmental challenges.
Custom options include:
- Non-standard sizes: NTGD manufactures plug valves outside the typical ½”–12″ (DN15–DN300) range to fit legacy systems or specialized equipment.
- Special port configurations: Engineers can specify full port, reduced port, or multi-port (e.g., 3-way) designs to optimize flow control and system layout.
- Material upgrades: For demanding media or aggressive environments, NTGD offers alternative body or trim materials, such as stainless steel or bronze, in combination with cast iron or ductile iron.
- Protective coatings: Epoxy, PTFE, or other coatings enhance corrosion resistance for wastewater, seawater, or chemical service.
- Extended stem and bonnet designs: These modifications accommodate buried service, insulation, or remote actuation requirements.
- Custom actuation: NTGD integrates manual levers, gearboxes, pneumatic, or electric actuators based on operational needs and automation levels.
- Special testing and documentation: Projects may require additional hydrostatic, pneumatic, or cycle testing, as well as third-party inspection or compliance certificates.
NTGD’s technical team collaborates with clients during the design phase. They review process data, piping layouts, and site conditions to ensure the custom plug valve meets all performance and safety criteria.
A typical custom order process includes:
- Requirement analysis: NTGD reviews technical specifications, drawings, and application details provided by the client.
- Design proposal: The engineering team develops a detailed drawing and material list for client approval.
- Manufacturing and inspection: NTGD produces the custom valve, applying the same quality assurance protocols as standard products.
- Documentation and delivery: Each custom plug valve ships with full traceability, test reports, and compliance certificates.
NTGD maintains flexibility in production scheduling to accommodate urgent or phased delivery requirements. The company’s experience with cast iron plug valve and ductile iron plug valve customization supports a wide range of industries, including water treatment, HVAC, and industrial processing. This approach ensures that each valve solution aligns precisely with project demands and long-term operational goals.
Why Choose NTGD
Cost-Performance Balance
NTGD provides cast iron plug valve and ductile iron plug valve solutions that meet the demands of budget-sensitive projects without sacrificing operational reliability. The company optimizes manufacturing processes to deliver valves with consistent quality and competitive pricing. Engineers select NTGD plug valves for municipal water, HVAC, and industrial pipelines where cost control is essential. The product range covers standard and custom sizes, allowing project managers to specify valves that fit both technical and financial requirements. NTGD’s approach ensures that each valve offers a balance between initial investment and long-term service life.
NTGD’s cast iron plug valve models deliver robust shut-off for low-pressure systems, while ductile iron plug valve options provide enhanced durability for higher mechanical demands. This flexibility supports efficient resource allocation across diverse infrastructure projects.
Reliable Shut-Off
Reliability remains a core attribute of NTGD plug valve products. The company designs each valve for high performance in critical shut-off applications. In sectors such as oil and gas, NTGD plug valves withstand extreme pressures and temperatures. Their robust construction enables rapid isolation of fluid flow, which is vital for safety in emergency scenarios. The tight sealing mechanism prevents leaks, ensuring hazardous materials remain contained. Operators trust NTGD plug valves for dependable operation in water treatment, wastewater, and industrial pipelines. The valves maintain sealing integrity during frequent cycling and pressure surges, supporting uninterrupted service in demanding environments.
- NTGD plug valves feature quarter-turn operation for fast shut-off.
- The sealing surfaces resist wear, maintaining leak-tight performance over extended periods.
Customization and Support
NTGD recognizes that every project presents unique challenges. The company offers a comprehensive suite of customization and support services to address specific requirements. Clients benefit from rapid response times, tailored valve configurations, and clear technical guidance throughout the procurement and installation process.
Project teams collaborate with NTGD engineers to specify plug valve features such as port configuration, actuation method, and protective coatings. The company provides detailed documentation and support materials, enabling smooth integration into existing systems. NTGD’s commitment to customization and technical support ensures that cast iron plug valve and ductile iron plug valve products meet both operational and regulatory standards.
NTGD’s engineering team remains available for consultation, helping clients optimize valve selection and installation for maximum reliability and cost efficiency.
NTGD cast iron plug valve and ductile iron plug valve deliver reliable performance for low-to-medium pressure systems. The following table highlights their key advantages:
NTGD supports clients with a broad product range, custom engineering, and strict quality assurance. Project teams can contact NTGD for technical consultation and tailored plug valve solutions.
FAQ
What is the main difference between a cast iron plug valve and a ductile iron plug valve?
Cast iron plug valves offer cost efficiency for low-pressure systems. Ductile iron plug valves provide higher strength and flexibility, supporting elevated pressure and mechanical stress in industrial pipelines.
Which applications suit cast iron plug valves best?
Engineers specify cast iron plug valves for municipal water, HVAC, and non-aggressive fluid systems. These valves perform reliably in low-to-medium pressure environments where budget and straightforward maintenance are priorities.
When should a ductile iron plug valve be selected?
Ductile iron plug valves fit installations with higher pressure, temperature fluctuations, or mechanical vibration. They serve wastewater, industrial, and utility pipelines requiring enhanced durability and impact resistance.
How does a lubricated plug valve differ from a non-lubricated design?
Lubricated plug valves use a sealing compound to reduce friction and support frequent cycling. Non-lubricated plug valves feature a resilient sleeve, minimizing maintenance for clean water or air service.
What connection types are available for NTGD plug valves?
NTGD supplies plug valves with flanged, threaded, or welded ends. Flanged connections suit most municipal and industrial systems. Threaded and welded options address specific installation or integrity requirements.
What is the typical pressure rating for NTGD cast iron and ductile iron plug valves?
NTGD cast iron plug valves typically rate at 175 psi CWP for sizes ½”–12″. Ductile iron plug valves reach up to 200 psi or higher, depending on class and configuration.
Can NTGD provide custom plug valve solutions?
NTGD offers custom plug valve configurations, including non-standard sizes, special coatings, extended stems, and automation options. The engineering team collaborates with clients to meet unique project specifications.
How does NTGD ensure plug valve quality and compliance?
NTGD applies strict material sourcing, precision machining, and comprehensive testing. Each plug valve undergoes hydrostatic, pneumatic, and seat leakage tests. Full traceability and certification support project documentation requirements.
