Gear Operated Plug Valve
Gear-operated plug valves reduce operating torque, making large-diameter or high-pressure valves easier to control. They provide smooth, stable operation in demanding environments.
NTGD Gear Operated Plug Valve
NTGD stands among leading plug valve suppliers with proven expertise in gear operated plug valve technology. Engineering teams value the gear drive mechanism for its ability to control large-diameter valves in applications demanding high torque and frequent operation. NTGD integrates precision machining, strict quality control, and customizable configurations to deliver reliable solutions for complex pipeline systems.
Key Features
- NTGD gear operated plug valves are designed for high reliability in heavy-duty pipelines, making them ideal for demanding environments.
- The gear drive mechanism reduces manual effort, allowing smooth operation of large valves, even under high pressure.
- Customization options, such as gear ratios and sealing types, ensure that each valve meets specific project needs and enhances performance.
- Regular maintenance, including lubrication and seal inspection, is crucial for extending the lifespan of the valves and ensuring reliable operation.
- NTGD’s commitment to quality control and material selection guarantees that each valve performs consistently in challenging conditions.
Gear Operated Plug Valve Overview
Plug Valve Structure & Operation
A gear operated plug valve features a robust internal structure designed for demanding pipeline environments. The core of the valve consists of a cylindrical or conical plug that rotates within the valve body to regulate fluid flow. This simple mechanical design minimizes moving parts, which reduces the risk of mechanical failure and increases reliability in high-torque applications. Engineers select this type of valve for its ability to maintain dependable operation under varying pressure conditions.
The plug’s extensive contact area with the valve body creates high frictional resistance. This friction enhances sealing integrity, making the valve suitable for handling abrasive or viscous fluids. The straightforward construction also allows for easy inspection and maintenance, which is essential for systems requiring frequent operation. NTGD’s engineering team ensures each valve meets strict dimensional tolerances, supporting consistent performance in both standard and pressure balanced valves.
Tip: The minimalistic design of the plug valve not only improves reliability but also simplifies troubleshooting and replacement during scheduled maintenance.
Gear Drive Principle & Torque Reduction
Large-diameter valves often require significant force to operate due to the high friction between the plug and the valve body. The gear drive mechanism addresses this challenge by integrating a precision gearbox with the valve stem. This gearbox multiplies the input force, allowing operators to open or close the valve smoothly, even in high-pressure or heavy-duty systems.
The gear operated plug valve leverages mechanical advantage to reduce manual effort, making it practical for use in control valve applications where frequent actuation is necessary. The gear drive also supports integration with automated actuators, enabling remote operation and improved process control. NTGD customizes gear ratios to match specific torque requirements, ensuring optimal performance across a range of pipeline diameters and media types.
Operators benefit from consistent, low-torque operation, which extends the service life of both the valve and the gear train. This design approach supports safe and efficient control in critical industrial processes.
NTGD Design & Manufacturing Strengths
Precision Gearbox & Valve Body
NTGD engineers design each valve with a focus on mechanical integrity and operational reliability. The gear transmission structure features precision-machined components that ensure smooth torque transfer and consistent actuation. Advanced CNC machining centers produce gear teeth with tight tolerances, minimizing backlash and wear over extended service cycles. The valve body, crafted from high-grade alloys or stainless steel, resists deformation under high pressure and temperature. This robust construction supports heavy-duty pipeline applications, where gear operated plug valves must perform reliably in challenging environments.
The integration of the gearbox with the valve stem allows for accurate alignment and efficient force distribution. NTGD’s gear driven plug valve models utilize optimized gear ratios, enabling operators to control large-diameter valves with minimal effort. The company’s engineering team evaluates each gearbox assembly for load capacity and fatigue resistance, ensuring long-term durability. This attention to detail in both gearbox and valve body manufacturing distinguishes NTGD plug valves in industrial service.
Note: NTGD’s gear transmission assemblies undergo dynamic testing to verify smooth operation and torque consistency, reducing the risk of operational failure in critical systems.
Material Selection & Quality Control
Material selection plays a pivotal role in NTGD’s manufacturing process. Engineers choose materials based on media compatibility, pressure rating, and environmental factors. Options include carbon steel, stainless steel, and specialty alloys, each offering specific advantages for corrosion resistance and mechanical strength. NTGD maintains full material traceability for every valve, documenting heat numbers and certificates to support engineering and procurement requirements.
Quality control forms the backbone of NTGD’s production philosophy. The company holds ISO 9001 certification for over two decades, demonstrating a commitment to process discipline and continuous improvement. Additional certifications, such as ISO 45001 and ISO 14001, reinforce NTGD’s focus on safety and environmental responsibility. Every gear operated plug valve meets or exceeds MSS-SP-81, ANSI, and AWWA C520-14 standards. Technicians conduct hydrostatic and seat leakage tests on each valve, verifying sealing performance and structural integrity before shipment.
- NTGD’s quality system includes:
- Incoming material inspection
- In-process dimensional checks
- Final assembly verification
- Comprehensive pressure and leakage testing
This rigorous approach ensures that every valve delivers reliable service in demanding pipeline conditions.
Customization Capabilities
NTGD supports a wide range of customization options to address diverse engineering needs. The company offers tailored gear ratios for specific torque requirements, allowing precise control over valve actuation in both manual and automated systems. Engineers can specify sealing configurations, including lubricated or non-lubricated seats, to match process media and maintenance schedules. NTGD provides flexible end connection choices, such as flanged, welded, or threaded interfaces, facilitating integration with existing pipeline infrastructure.
The design team collaborates with clients to develop valves that meet unique project specifications. Customization extends to fire safe design features, ensuring compliance with safety standards in hazardous environments. NTGD’s manufacturing process accommodates special coatings, extended stem assemblies, and actuator mounting provisions for remote operation. This level of flexibility enables procurement teams to source gear operated plug valves that align precisely with operational and regulatory requirements.
NTGD’s commitment to customization, combined with advanced manufacturing and strict quality control, positions its gear operated plug valve solutions as a reliable choice for heavy-duty pipeline applications.
Key Features of Gear Operated Plug Valve
Low Torque Operation
Operators in heavy-duty pipeline environments often face challenges when actuating large valves. NTGD’s gear operated plug valve addresses this issue by integrating a precision gearbox that multiplies input force. This design enables smooth and consistent actuation, even in high-pressure systems. The gear mechanism reduces manual effort, allowing technicians to operate the valve safely and efficiently. In control valve applications, frequent cycling does not compromise performance. The gearbox maintains low operating torque throughout the service life, minimizing wear on internal components. This feature supports reliable operation in oil, gas, chemical, and utility pipelines.
Tip: Low torque operation not only improves safety but also extends the lifespan of the valve and associated gear train.
Durable Gear Train
NTGD engineers select robust materials and apply advanced machining techniques to produce gear trains that withstand demanding service conditions. Each gear operated plug valve features a gearbox with hardened steel gears, precision-cut teeth, and optimized lubrication channels. These elements work together to resist fatigue, corrosion, and mechanical stress. The gear train maintains alignment and torque transfer, even under frequent actuation or pressure surges. NTGD’s quality control process includes dynamic load testing and dimensional verification, ensuring every valve meets strict durability standards. The gear train’s reliability supports continuous operation in critical pipeline circuits.
- Key durability factors:
- Hardened gear materials
- Precision machining
- Optimized lubrication
- Dynamic load testing
Flexible End Connections
Pipeline systems require valves that integrate seamlessly with existing infrastructure. NTGD offers gear operated plug valve models with a range of end connection options. Engineers can specify flanged, welded, or threaded interfaces to match project requirements. This flexibility simplifies installation and reduces downtime during maintenance or upgrades. NTGD’s design team supports custom face-to-face dimensions and end connection standards, ensuring compatibility with international codes. The valve’s robust construction maintains sealing integrity across all connection types, supporting safe operation in high-pressure and high-temperature environments.
Note: Flexible end connections enable procurement teams to standardize valve selection across multiple pipeline projects.
Advanced Sealing Options
Leak prevention remains a top priority in high-pressure pipeline applications. NTGD’s gear operated plug valve incorporates advanced sealing technologies that exceed industry standards. The valve features pressure-activated seals, which achieve zero leakage under pressures up to 1500 psi. The Pro Model offers 30% higher pressure capacity, enabling safe handling of ultra-high-pressure gas pipelines. Engineers can select graphite seals for abrasive media, reducing maintenance requirements by 40%. The sealing design ensures leak-proof operation, even under fluctuating pressure loads.
NTGD supports lubricated and non-lubricated seat options, allowing engineers to tailor the valve to specific media and maintenance schedules. The fire safe design option further enhances safety in hazardous environments, meeting stringent regulatory requirements.

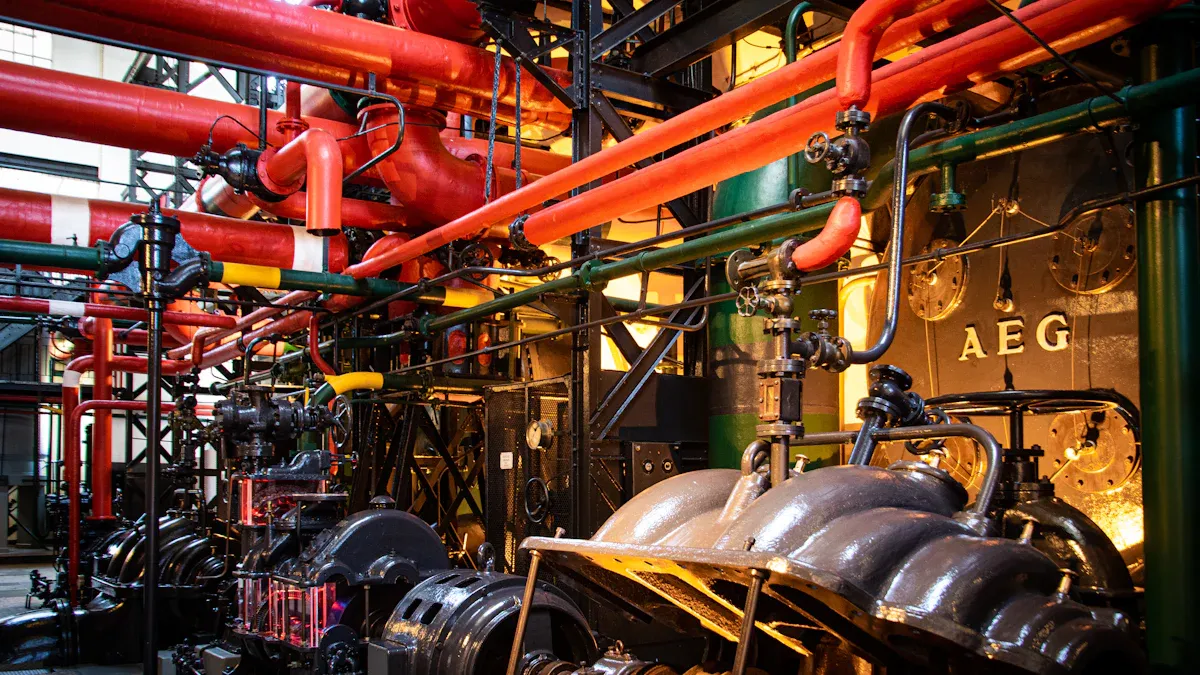

Application Scenarios
Oil & Gas Pipelines
Oil and gas pipelines demand valves that perform reliably under high pressure and frequent cycling. NTGD gear operated plug valves provide robust shutoff and flow control for crude oil, natural gas, and refined product transmission. Operators select these valves for mainline isolation, block valve stations, and pigging operations. The gear drive mechanism ensures smooth actuation, even in large-diameter lines where torque requirements are significant. Plug valve suppliers recognize the importance of pressure balanced valves in these environments, as they maintain sealing integrity and reduce operational effort during rapid pressure changes.
Chemical & Petrochemical Lines
Chemical and petrochemical facilities require valves that withstand aggressive media and fluctuating process conditions. NTGD gear operated plug valves handle a wide range of chemicals, solvents, and process gases. Typical operating parameters include:
- Working temperature range from -20°F to 356°F
- ASME Class 150 pressure rating at 285 psi (100°F)
- ASME Class 300 pressure rating at 740 psi (100°F)
Engineers often specify these valves for reactor feed lines, transfer manifolds, and tank farm isolation. The control valve function supports precise dosing and blending operations. Material selection and advanced sealing options ensure compatibility with corrosive or hazardous fluids.
Steam & High Temperature Systems
Steam distribution networks and high-temperature process circuits rely on valves that resist thermal stress and maintain tight shutoff. NTGD offers steam jacketed plug valve designs for applications involving saturated or superheated steam. These valves operate in power plants, refineries, and chemical synthesis units. The gear drive system allows safe manual operation, even when pipeline temperatures exceed standard limits. Engineers value the ability to integrate these valves with automated actuators for remote control in hazardous areas.
Water & Utility Distribution
Municipal water systems and industrial utility networks require valves that adapt to diverse flow and installation conditions. NTGD gear operated plug valves support isolation, throttling, and emergency shutoff in potable water, wastewater, and fire protection lines. Key considerations for valve selection include:
NTGD supports a range of end connections and material options to meet these requirements. The gear drive ensures reliable operation during routine maintenance and emergency events.
Heavy Industrial Circuits
Heavy industry, including mining, pulp and paper, and steel production, places extreme demands on valve performance. NTGD gear operated plug valves manage abrasive slurries, viscous fluids, and high-solids content streams. The durable gear train and advanced sealing systems provide long service life in harsh environments. Engineers deploy these valves in process isolation, slurry transfer, and cooling water circuits. NTGD also offers cryogenic valves for low-temperature service and custom solutions for unique industrial challenges. The control valve capability supports both manual and automated process control.
Note: NTGD’s engineering team collaborates with clients to specify the right valve for each application, ensuring safety, reliability, and compliance with industry standards.
Installation & Maintenance
Gearbox Mounting & Alignment
Proper gearbox mounting ensures reliable operation of every NTGD gear operated plug valve. Technicians position the gearbox directly on the valve stem, using precision-machined interfaces to maintain alignment. This alignment prevents uneven torque transfer and reduces wear on the gear train. During installation, they check the orientation of the gearbox handwheel or actuator to guarantee smooth actuation. They secure all fasteners to the manufacturer’s recommended torque values. For automated systems, the team verifies that the actuator couples correctly with the gearbox and that the control valve responds accurately to remote signals. Routine checks confirm that the gearbox remains firmly attached and that the valve stem rotates without resistance.
Tip: Consistent alignment during installation extends the service life of both the gearbox and the valve, especially in high-torque or frequent cycling applications.
Lubrication & Seal Inspection
Lubrication plays a critical role in the performance of a gear operated plug valve. NTGD recommends using high-quality grease for the gearbox and appropriate lubricants for the plug and seals. Regular inspection of seals prevents internal or external leakage and maintains the integrity of the control valve. The frequency of lubrication and seal inspection depends on operating conditions:
Technicians apply fresh grease to the gearbox and plug chamber as specified in the maintenance manual. They inspect seals for signs of wear, hardening, or deformation. If they detect any leakage, they replace the seals promptly. This proactive approach minimizes downtime and ensures the valve continues to deliver reliable shutoff and flow control.
Troubleshooting
NTGD gear operated plug valves feature robust construction, but operational issues can still arise in demanding environments. The most common problems include internal leakage, sticking, and flow irregularities. The table below outlines typical issues, causes, and recommended actions:
Technicians often encounter sticking or hard-to-turn valves due to dried grease or debris. They resolve this by injecting fresh grease and cycling the valve several times. External or internal leaks usually result from worn seals or dried lubrication. Re-greasing and seal replacement restore proper function. Excessive torque requirements may indicate misalignment or insufficient lubrication. Realignment and thorough greasing address these issues. Regular maintenance and prompt troubleshooting keep the valve operating safely and efficiently in all pipeline applications.
Specification & Ordering Guide
Size & Pressure Ratings
NTGD offers a comprehensive range of gear operated plug valve sizes to meet diverse pipeline requirements. Engineers can select valve diameters from 2 inches up to 48 inches. Each valve undergoes rigorous testing to confirm its suitability for heavy-duty service. Pressure ratings span from ANSI Class 150 to Class 900, supporting both low and high-pressure applications. The valve body material determines the maximum allowable pressure and temperature. Carbon steel valves handle standard oil and gas service, while stainless steel valves resist corrosion in chemical environments.
The following table summarizes typical valve sizes and pressure ratings:
Note: NTGD recommends consulting with their engineering team to select the optimal valve size and pressure class for each control valve application.
Configuration & Ordering Info
Procurement teams benefit from NTGD’s streamlined ordering process. The company provides a detailed valve configuration sheet to capture all technical requirements. Clients specify valve size, pressure rating, end connection type, and seat design. NTGD supports flanged, welded, and threaded end connections for integration with existing pipeline systems. Engineers choose between lubricated and non-lubricated seat options based on media compatibility and maintenance schedules.
Ordering steps include:
- Review project specifications and select the required valve size and pressure class.
- Identify the preferred end connection: flanged, welded, or threaded.
- Choose seat type: lubricated or non-lubricated.
- Specify body and trim materials for corrosion resistance and mechanical strength.
- Indicate any special requirements, such as fire safe design or actuator mounting for remote control.
NTGD’s technical support team assists with valve selection and provides drawings, datasheets, and compliance documentation. The company maintains full material traceability for each valve, ensuring transparency throughout the procurement process.
Tip: Early engagement with NTGD’s engineering staff helps optimize valve selection and ensures compatibility with control valve systems.
NTGD delivers robust solutions for industrial pipelines with gear operated plug valves that excel in reliability and cost-effectiveness. The simple design ensures dependable performance and straightforward maintenance. The following table highlights the advantages over ball valves:
NTGD supports engineering and procurement teams with comprehensive customer service. The company offers on-site and remote support, troubleshooting, and IT consulting:
NTGD’s technical specialists help clients select the right valve and provide tailored solutions for complex projects. Contact NTGD for expert consultation or a custom quote.
FAQ
What makes NTGD gear operated plug valves suitable for heavy-duty pipelines?
NTGD gear operated plug valves use precision gearboxes and robust materials. These features ensure reliable performance in large-diameter, high-pressure, and frequent operation environments. Engineers trust NTGD valves for their durability and low maintenance needs.
Can NTGD plug valves be customized for specific applications?
Yes. NTGD offers custom gear ratios, sealing options, and end connections. The engineering team collaborates with clients to match each gear driven plug valve to unique process requirements and industry standards.
How often should operators perform maintenance on a gear operated plug valve?
Regular maintenance depends on service conditions. Standard applications require annual inspection and lubrication. High-pressure or high-temperature systems may need more frequent checks. NTGD provides detailed maintenance guidelines for each valve model.
Are NTGD gear operated plug valves compatible with automated actuators?
NTGD designs gear operated plug valves for seamless integration with pneumatic or electric actuators. This compatibility allows remote operation and precise process control in automated pipeline systems.
