Understanding Plug Valve Material Designs

• • Selecting the right plug valve body material can extend service life by over 50% and reduce unplanned downtime.
  • Engineers must evaluate the compatibility of plug valve materials with process media to ensure reliability and safety.
  • Stainless steel offers superior corrosion resistance, making it ideal for aggressive chemicals and hygiene-critical applications.
  • Carbon steel is cost-effective and suitable for general-purpose applications, but it has limitations in corrosive environments.
  • Lined plug valves with PTFE or PFA provide exceptional protection against highly corrosive media, ensuring long-term reliability.
  • Regular inspection and maintenance are crucial for sustaining plug valve performance and preventing leaks.
  • Ductile iron plug valves combine affordability with mechanical resilience, making them suitable for moderate to high-pressure applications.
  • NTGD employs strict material control and precision manufacturing to ensure high-quality plug valves that meet industry standards.

Plug Valve Body Material Classification

Why Plug Valve Body Material Matters

The classification of plug valves by body material forms the foundation for reliable engineering design in fluid control systems. Engineers in chemical, oil and gas, and water treatment industries must evaluate the compatibility of plug valve body material with process media and operational conditions. Each material offers unique properties that influence corrosion resistance, mechanical strength, and the ability to withstand temperature fluctuations.

Material selection directly impacts the advantages of plug valves in industrial applications. For example, stainless steel and advanced alloys provide robust resistance to aggressive chemicals, ensuring long-term durability. In contrast, carbon steel suits general-purpose applications where moderate pressure and temperature prevail. Lined plug valves, featuring PTFE or PFA linings, deliver exceptional protection against highly corrosive media, extending service life in challenging environments.

Engineers recognize that improper classification can lead to premature valve failure, increased maintenance, and costly downtime. Selecting the correct plug valve body material ensures good sealing performance, operational reliability, and process safety.

The classification of plug valves by body material enables precise matching of valve properties to process requirements. This approach optimizes system performance and supports efficient maintenance planning.

Impact on Performance and Service Life

Plug valve body material selection plays a decisive role in determining the operational reliability and longevity of plug valves. The plug and stem, which frequently contact the process medium, require materials with high corrosion resistance and mechanical strength. Stainless steel and specialty alloys, such as Hastelloy, excel in resisting corrosive attack, which is critical for durability in demanding applications.

Mechanical strength and wear resistance are equally important. Plug valves constructed from robust materials maintain structural integrity under high pressure and temperature, reducing the risk of leaks and failures. This reliability translates into fewer unplanned shutdowns and lower maintenance costs.

Plug valve body material also influences sealing performance. Materials with good sealing performance prevent leakage and ensure consistent flow control, which is essential for process efficiency and safety. The advantages of plug valves, such as tight shutoff and minimal leakage, depend on the synergy between body material and design.

Carbon Steel Plug Valve Body Material

Properties and Strengths

Engineers select carbon steel plug valves for their robust mechanical properties and cost-effectiveness. Carbon steel offers high tensile strength and yield strength, which ensures reliable performance in demanding process environments. The material resists deformation under pressure and maintains structural integrity during thermal cycling. The following table summarizes the typical mechanical properties of carbon steel used in plug valve bodies:

Carbon steel plug valve body material supports both lubricated plug valve and non-lubricated plug valve designs. Lubricated plug valve types benefit from the material’s ability to withstand repeated actuation and abrasive media. The advantages of carbon steel include ease of machining, weldability, and compatibility with a wide range of sealing materials. Engineers often specify elastomer sleeved non-lubricated plug valve and fully-lined non-lubricated plug valve options for specialized applications, but carbon steel remains the standard for general-purpose use.

Carbon steel plug valves deliver consistent performance in moderate pressure and temperature conditions, making them a preferred choice for many industrial systems.

Application Scope

Carbon steel plug valves serve as the backbone of flow control in several key industries. Their versatility allows engineers to deploy them in pipelines, process plants, and utility systems. The table below highlights common industries and applications:

Operators rely on lubricated plug valve configurations for heavy-duty service, especially in oil and gas pipelines. Carbon steel plug valve body material supports both manual and automated actuation, providing flexibility for system designers. In water treatment and power generation, plug valves constructed from carbon steel offer reliable shutoff and minimal leakage. These valves also integrate seamlessly with lined plug valve solutions when enhanced corrosion protection is required.

Limitations

While carbon steel plug valves excel in many environments, engineers must consider their limitations regarding corrosion resistance and temperature tolerance. The material performs well in neutral and mildly corrosive media, but exposure to aggressive chemicals or saline water can accelerate degradation. The temperature range for carbon steel plug valve bodies typically spans from -29°C to 538°C, supporting most industrial processes.

Designers should evaluate process media and operating conditions before specifying carbon steel plug valve body material. For highly corrosive or extreme temperature applications, stainless steel, alloy steel, or lined plug valve options may offer superior performance. Selection of the appropriate plug valve body material ensures long-term reliability, safety, and cost efficiency.

Stainless Steel Plug Valve Body Material

Corrosion Resistance

Stainless steel plug valves set the industry benchmark for corrosion resistance. Engineers rely on these valves in environments where aggressive chemicals, saltwater, or high humidity would quickly degrade other materials. Stainless steel, especially the 300 series alloys such as 304 and 316, resists pitting, crevice corrosion, and stress corrosion cracking. This material outperforms carbon steel and alloy steel in harsh process conditions.

• • • Stainless steel maintains integrity in the presence of acids, alkalis, and chlorides.
    • 316L stainless steel withstands saltwater and chemical exposure that would damage carbon steel plug valves.
    • Alloy steel offers improved resistance over carbon steel, but does not match the durability of stainless steel in aggressive media.

This superior corrosion resistance extends the service life of plug valves, reduces maintenance frequency, and minimizes the risk of unplanned shutdowns. Operators in chemical processing, desalination, and marine applications specify stainless steel plug valve body material to ensure long-term reliability.

Clean Service Applications

Stainless steel plug valves play a critical role in industries where hygiene and product purity are non-negotiable. The smooth internal surfaces of these valves prevent media buildup and facilitate easy cleaning. Food and beverage plants, pharmaceutical manufacturers, and biotech facilities require valves that support Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols. Stainless steel meets these demands with FDA-compliant compositions and minimal crevices.

• • • Plug valves constructed from stainless steel enable rapid, residue-free cleaning.
    • Lubricated plug valve designs in stainless steel minimize contamination risk in sensitive processes.
    • Non-lubricated plug valve options further reduce the potential for media entrapment.

These advantages make stainless steel the preferred plug valve body material for clean service applications. The material’s versatility also allows it to handle a wide range of pressures and temperatures, including high-temperature steam.

Cost vs Performance

Stainless steel plug valves command a higher initial investment compared to carbon steel and alloy steel alternatives. However, the performance benefits often justify the price difference, especially in critical applications.

• • 1. 304 stainless steel offers a cost-effective solution for moderate corrosion environments.
    2. 316 stainless steel, though more expensive, provides unmatched durability in highly corrosive or sanitary settings.
    3. The extended lifespan and reduced maintenance requirements offset the upfront cost, particularly where valve failure would result in significant downtime or safety risks.

Plant managers and engineers evaluate total lifecycle costs when selecting plug valve body material. Stainless steel’s resistance to wear and chemical attack translates into fewer replacements and lower long-term expenses. Lubricated plug valve and non-lubricated plug valve configurations in stainless steel deliver consistent performance, making them a strategic investment for demanding industries.

Alloy Steel Plug Valve Body Material

High Temperature and Pressure Use

Alloy steel plug valves deliver reliable performance in environments where both temperature and pressure reach extreme levels. Engineers select alloy steel for plug valve body material when process conditions exceed the limits of carbon steel or stainless steel. This material maintains mechanical strength and dimensional stability under thermal cycling and high-pressure loads. In power generation and petrochemical plants, plug valves constructed from alloy steel operate at pressure ratings up to 16MPa and withstand temperatures as high as 400°C. The following table summarizes typical ratings for alloy steel plug valve bodies:

Alloy steel plug valves also meet the requirements of ASME B16.34, supporting applications that demand Class 600 pressure ratings and temperature ranges from -100°C up to +280°C, depending on the specific alloy. These properties make alloy steel the preferred choice for steam lines, high-pressure gas distribution, and critical isolation points in refineries.

Industry Applications

Engineers deploy alloy steel plug valves in industries where process safety and operational reliability are paramount. Power plants use these valves to control superheated steam and high-pressure feedwater. Refineries and petrochemical facilities rely on alloy steel plug valve body material for hydrocracking, catalytic reforming, and other high-temperature processes. The oil and gas sector specifies alloy steel for plug valves in upstream and midstream operations, especially where sour gas or high-pressure injection systems are present.

• • • Power generation: Steam isolation, boiler feedwater, turbine bypass
    • Petrochemical: Reactor feed, high-pressure separators, process gas lines
    • Oil and gas: Wellhead control, gas lift, pipeline block valves

Alloy steel plug valves also serve in chemical manufacturing, pulp and paper, and other heavy industries where process media can be both hot and chemically aggressive. The robust construction and resistance to thermal shock ensure long service life and minimal maintenance.

Material Grades

Material selection for alloy steel plug valve bodies depends on the specific process requirements. Common grades include ASTM A217 WC6, WC9, and C12A, each offering a unique balance of strength, toughness, and corrosion resistance. Engineers choose WC6 for moderate temperature steam service, while WC9 and C12A handle higher temperatures and more aggressive environments. The choice of grade affects not only the mechanical properties but also the weldability and compatibility with non-lubricated plug valve designs.

• • • ASTM A217 WC6: Suitable for steam and hot water up to 540°C
    • ASTM A217 WC9: Enhanced creep resistance for higher temperature service
    • ASTM A217 C12A: Superior performance in high-temperature hydrogen and process gas applications

NTGD applies advanced heat treatment and precision casting to ensure each alloy steel plug valve meets stringent industry standards. This approach guarantees consistent quality, optimal sealing, and long-term reliability, even in the most demanding service conditions.

Cast Iron & Ductile Iron Plug Valves

Cost-Effective Plug Valve Solutions

Cast iron and ductile iron plug valves offer a cost-effective solution for large-scale municipal and industrial flow control systems. Many engineers select these materials for projects where budget constraints and moderate service conditions intersect. Cast iron provides an economical option for non-critical applications, while ductile iron delivers enhanced performance at a slightly higher cost. Both materials allow for the production of plug valves in larger sizes without significant increases in manufacturing expense. This makes them ideal for water distribution networks, HVAC systems, and chemical processing plants where high volumes and reliability are essential.

Ductile iron, in particular, stands out for its combination of affordability and mechanical resilience. Plant operators often choose ductile iron plug valves when they require higher pressure ratings and improved resistance to mechanical shock. The ability to manufacture robust plug valve bodies at scale supports infrastructure projects and utility upgrades.

Mechanical Properties

The mechanical properties of cast iron and ductile iron directly influence the operational reliability of plug valves. Cast iron exhibits moderate strength but remains brittle under impact or thermal stress. Ductile iron, by contrast, offers superior tensile strength and exceptional ductility, allowing it to withstand higher pressures and mechanical loads without fracturing.

The following table summarizes the key mechanical differences:

Ductile iron plug valves demonstrate high tensile strength, excellent elongation, and improved corrosion resistance compared to traditional cast iron. These attributes extend service life and reduce the risk of sudden failure, especially in dynamic flow conditions. Engineers value the predictable performance of ductile iron in both manual and automated plug valve configurations.

Typical Uses

Operators deploy cast iron and ductile iron plug valves across a broad spectrum of municipal and industrial systems. These materials support reliable operation in environments where chemical exposure, temperature fluctuations, and mechanical loads are moderate.

Common applications include:

• • • Water treatment facilities
    • Chemical processing plants
    • HVAC distribution networks
    • Large-scale industrial projects

Many water utilities specify ductile iron plug valves for quick and automatic valve shutdown, which is critical for backflow prevention and emergency isolation. Chemical facilities benefit from the improved corrosion resistance and mechanical strength of ductile iron, ensuring consistent performance in process lines. HVAC engineers rely on these plug valves for regulating chilled and hot water flows in commercial buildings.

Engineers recognize that selecting the appropriate plug valve body material, such as ductile iron, can significantly enhance system reliability and reduce lifecycle costs.

Plug valves constructed from cast iron and ductile iron continue to serve as foundational components in infrastructure and process industries, balancing cost, durability, and operational safety.

Bronze Plug Valve Body Material

Material Features

Bronze plug valves offer a unique combination of mechanical strength and corrosion resistance. The copper-tin alloy structure provides excellent durability in both fresh and saltwater environments. Bronze maintains its integrity under high pressure and resists dezincification, a common issue in brass valves. Engineers value the material for its machinability and ability to form tight, reliable seals. Bronze plug valve bodies also exhibit low friction, which supports smooth actuation and reduces wear on internal components. These properties make bronze a preferred choice for systems that demand long service life and minimal maintenance.

Water and Marine Applications

Bronze plug valves excel in water supply, wastewater treatment, and marine engineering. The material’s superior resistance to corrosion in seawater sets it apart from other metals. Marine engineers often specify bronze plug valves for ballast systems, cooling water lines, and fire protection networks on ships and offshore platforms. The following table highlights the comparative performance of bronze and brass in marine environments:

Operators choose bronze plug valves for heavy-duty water systems because they withstand saltwater exposure and maintain functionality in harsh conditions. These valves also perform reliably in desalination plants and coastal infrastructure, where aggressive media and fluctuating temperatures challenge other materials.

Bronze is a popular choice due to its excellent resistance to corrosion in seawater. It also has good mechanical properties and can withstand high pressures.

Flow Media Suitability

Bronze plug valves handle a wide range of flow media, including potable water, seawater, mild acids, and alkalis. The material’s chemical stability ensures compatibility with both neutral and slightly aggressive fluids. Engineers deploy bronze plug valves in municipal water distribution, irrigation, and marine fuel systems. The valves also support applications in chemical processing where moderate corrosion resistance is required.

• • • Bronze plug valves are ideal for marine environments.
    • They withstand saltwater exposure.
    • Suitable for heavy-duty water systems.

Bronze plug valve body material provides a reliable solution for engineers seeking a balance between cost, durability, and corrosion resistance. The material’s versatility and proven performance in water and marine applications make it a strategic choice for critical flow control.

Lined Plug Valves (PTFE/PFA)

Liner Function and Corrosion Protection

PTFE and PFA lined plug valves provide a robust solution for handling aggressive and corrosive process media. The liner forms a continuous barrier between the process fluid and the valve body. This design ensures that the metal components remain completely isolated from contact with acids, alkalis, and solvents. As a result, lined plug valves deliver several engineering advantages:

• • • Complete isolation between process media and the plug valve body
    • Reliable protection against corrosion, even from highly acidic or caustic substances
    • Extended service life compared to unlined metal plug valves

Lined plug valves use fluoropolymer materials such as PTFE and PFA, which act as impenetrable barriers. These liners prevent corrosion-related wear and maintain the integrity of the plug valve, even when exposed to aggressive chemicals or steam. Engineers select lined plug valves to ensure long-term reliability in environments where conventional metal valves would fail prematurely.

Corrosive Media Applications

Lined plug valves excel in applications involving highly corrosive or hazardous media. Chemical plants, pharmaceutical facilities, and wastewater treatment systems rely on these valves to handle substances that would rapidly degrade standard metal bodies. Typical media include:

• • • Aqua regia
    • Sulfuric acid
    • Hydrochloric acid
    • Hydrofluoric acid
    • Organic acids
    • Strong alkalis

PTFE and PFA liners provide excellent corrosion resistance and can withstand temperatures from -50℃ to 150℃. These properties make lined plug valves suitable for processes involving both high temperatures and abrasive particles. Operators benefit from reduced maintenance and increased safety, as the liner prevents leaks and minimizes the risk of environmental contamination.

Lined plug valves offer exceptional protection in environments where acids, bases, or solvents would quickly damage conventional plug valve designs.

Design and Maintenance

The design of lined plug valves focuses on minimizing maintenance and maximizing operational reliability. PTFE and PFA liners resist chemical attack and reduce the need for frequent inspections or repairs. The following table compares maintenance requirements for different plug valve types:

Non-lubricated lined plug valves require minimal maintenance because the liner eliminates the need for periodic lubrication. This feature reduces downtime and lowers operating costs. Engineers can select from a range of plug valve configurations to match specific process requirements, ensuring optimal performance and safety.

Lined plug valves represent a strategic choice for industries that demand high corrosion resistance, long service life, and simplified maintenance. The combination of advanced liner materials and precision engineering makes these plug valves essential for modern chemical processing and fluid handling systems.

Comparing Plug Valve Body Materials

Corrosion Resistance vs Cost

Engineers must balance corrosion resistance and cost when selecting plug valve body material for industrial systems. The following table summarizes how common materials perform in terms of corrosion resistance, cost effectiveness, and temperature suitability:

LCB suits low temperature and corrosive environments. WCB fits a wide range of applications at room to high temperatures. Stainless steel and lined plug valves provide the highest corrosion resistance, especially in chemical and marine industries. Ductile iron and bronze offer cost-effective solutions for water and general service. PTFE/PFA lined plug valves excel in handling aggressive media but come with higher initial investment.

Strength and Durability

Strength and durability determine the reliability of plug valves under pressure and mechanical stress. The table below compares the main materials:

Ductile iron outperforms cast iron in strength and impact resistance. Stainless steel maintains durability in both three-way and four-way plug valves, especially where hygiene and corrosion resistance are critical. Carbon steel supports high-pressure systems, including three-way and four-way configurations, but requires careful media selection to avoid corrosion.

Application-Based Selection Guide

Selecting the right plug valve body material involves a systematic approach:

• • 1. Define the process media. Identify if the fluid is corrosive, abrasive, or contains solids.
    2. Determine operating conditions. Note the maximum pressure and temperature.
    3. Select the appropriate plug valve type. For example, use non-lubricated three-way or four-way plug valves for chemical service.
    4. Choose compatible body and seal materials. Match the plug valve body material to the process requirements.
    5. Confirm the operation method. Decide between manual or actuated operation for three-way and four-way plug valves.

Engineers should always align material selection with process safety, lifecycle cost, and maintenance strategy. Stainless steel and lined plug valves suit aggressive media and hygiene-sensitive industries. Carbon steel and ductile iron provide robust solutions for general service and utility lines. Bronze remains the preferred choice for water and marine systems. PTFE/PFA lined plug valves deliver unmatched performance in highly corrosive environments.

A systematic evaluation ensures that plug valves, including three-way and four-way designs, deliver optimal performance, safety, and value across diverse industries.

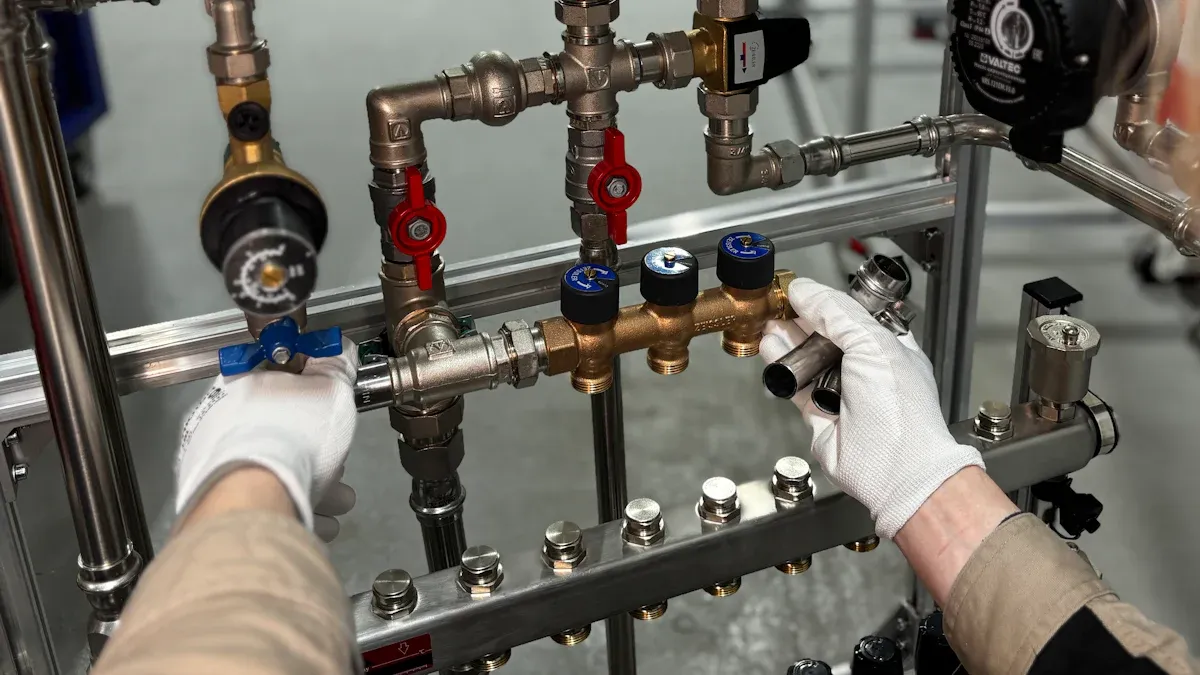

Installation, Maintenance, and Best Practices for Plug Valves

Material-Specific Installation Tips

Engineers achieve optimal performance by following installation practices tailored to plug valve body materials. Each configuration requires attention to flow direction and valve orientation. For clean liquids or gases, installers direct flow toward the back side of the plug. This approach minimizes turbulence and ensures reliable shutoff. In vertical installations, positioning the seat side of the plug valve upwards prevents solids from settling and obstructing movement. Horizontal configurations benefit from directing flow against the face of the plug, which helps flush away debris and maintains clear passage.

• • • Direct flow toward the back side of the plug for clean media.
    • Position the seat side upwards in vertical installations to avoid solid buildup.
    • In horizontal setups, direct flow against the plug face to remove solids.

These practices support the integrity of carbon steel plug valve, stainless steel, and lined plug valve designs. Proper orientation and flow management reduce wear and extend operational life.

Maintenance Considerations

Routine inspection and cleaning play a critical role in sustaining plug valves. Operators regularly check for corrosion signs, such as discoloration or pitting, especially in environments with aggressive media. Keeping plug valves clean prevents buildup that can hinder actuation. Specialized cleaners remove deposits in harsh conditions. Protective coatings, including ENP, epoxy, or fluoropolymer, shield the plug valve body material from chemical attack. Lubrication of moving parts, performed according to manufacturer recommendations, ensures smooth operation and easy maintenance. Establishing a cleaning routine to remove debris further enhances reliability.

Regular inspection and cleaning routines help maintain plug valves in peak condition, reducing the risk of leaks and operational failures.

Extending Service Life

Material selection and protective measures directly influence the longevity of plug valves. Engineers choose body materials that resist corrosion and withstand system pressure, such as ASTM A216 WCB for carbon steel or CF8M for 316 stainless steel. The plug material provides the primary sealing surface; hard chrome plating on 316 stainless steel offers exceptional wear resistance. Seal materials, including PTFE, reinforced PTFE, or metal seals, must match the service media and temperature requirements.

Engineers apply anti-corrosion measures, such as anti-rust oil or specialized coatings, in corrosive and marine environments. Selecting corrosion-resistant materials or coatings enhances durability. Implementing these strategies ensures plug valves deliver reliable performance and extended service life across diverse applications.

NTGD Plug Valve Material Solutions

Material Control and Quality

NTGD applies rigorous material control throughout every stage of plug valve production. The engineering team verifies all incoming raw materials using advanced spectrometers and metallographic analysis. This process ensures that each plug valve body material meets or exceeds international standards for chemical composition and mechanical properties. NTGD maintains full traceability for every batch, which supports quality assurance and process transparency. The company implements strict heat treatment protocols to optimize the microstructure of carbon steel plug valves, stainless steel, and alloy steel bodies. These measures enhance corrosion resistance, mechanical strength, and service life. NTGD’s quality management system includes non-destructive testing, pressure testing, and dimensional inspection for all plug valves before shipment.

Precision Manufacturing

NTGD leverages state-of-the-art CNC machining centers and precision casting techniques to manufacture plug valves with tight tolerances. The production team uses advanced molds and forging processes to achieve uniform wall thickness and flawless surface finishes. This attention to detail minimizes the risk of leakage and ensures reliable sealing performance across all plug valve body materials. The company’s expertise in precision manufacturing extends to lined plug valve designs, where PTFE or PFA liners must bond seamlessly to the metal body. NTGD’s process control guarantees consistent quality for both standard and custom plug valve configurations. The result is a product line that delivers dependable operation in demanding industrial environments.

Custom Material Options

NTGD recognizes that each application may require a unique solution. The engineering team collaborates with clients to select the optimal plug valve body material based on process media, temperature, and pressure requirements. NTGD offers a wide range of materials, including carbon steel plug valve bodies for general service, stainless steel for corrosive environments, and lined plug valves for aggressive chemicals. The company can also provide special alloys or bronze for marine and water systems. Customization options extend to plug and seat materials, coatings, and actuation methods. NTGD’s flexible approach ensures that every plug valve matches the specific needs of the project, supporting long-term reliability and process safety.

NTGD’s commitment to material excellence, precision manufacturing, and tailored solutions positions the company as a trusted partner for plug valves in critical engineering applications.

Selecting the right plug valve body material determines system reliability, safety, and total cost of ownership. Engineers evaluate process media, pressure, and temperature to match each application with the best option. Material choice affects corrosion resistance, mechanical strength, and maintenance needs. Plug valves from NTGD deliver consistent performance across industries. For complex projects, engineers should consult NTGD for expert guidance and quality assurance.

FAQ

What factors determine the selection of plug valve body material?

Engineers consider process media, temperature, pressure, and corrosion risk. They match plug valve body material to these requirements for optimal performance and safety.

When should an engineer specify a carbon steel plug valve?

Engineers select carbon steel plug valves for general service in oil, gas, water, and utility systems. This material offers strength and cost efficiency in non-corrosive or mildly corrosive environments.

Why choose a lined plug valve for chemical processes?

Lined plug valves provide superior corrosion resistance. PTFE or PFA liners shield the valve body from aggressive acids, alkalis, and solvents, extending service life in chemical plants.

How does stainless steel compare to alloy steel in plug valves?

Stainless steel excels in corrosion resistance and hygiene-critical applications. Alloy steel withstands higher temperatures and pressures, making it suitable for power generation and petrochemical processes.

What are the advantages of bronze plug valves in marine systems?

Bronze plug valves resist seawater corrosion and dezincification. They maintain mechanical strength and sealing reliability in shipboard and coastal water systems.

Can ductile iron plug valves handle high-pressure applications?

Ductile iron plug valves offer improved strength and ductility over cast iron. They perform reliably in moderate to high-pressure water, HVAC, and industrial systems.

How does NTGD ensure plug valve material quality?

NTGD uses advanced spectrometers, metallographic analysis, and strict heat treatment. The company verifies every batch and applies non-destructive testing to guarantee plug valve body material integrity.
