Plug Valve Sealing Type Classification

What Is Plug Valve Sealing Type

Plug valve sealing type classification organizes plug valves according to the design and material of their sealing surfaces. Engineers use this classification to select valves that match specific flow requirements and process conditions. The sealing type determines how the plug valve isolates media, controls leakage, and withstands operational stresses. Industrial standards, such as API 598 and GB/T 13927, specify criteria for plug valve sealing type classification. These criteria include structural form, sealing surface material, working pressure, and temperature range.

Plug valve sealing type classification helps engineers match valve design to the demands of the process. For example, a soft-seated plug valve uses non-metallic materials to achieve tight sealing and low operating torque. A metal-seated plug valve relies on metal-to-metal contact for durability in high-temperature or abrasive environments. Lubricated plug valves use oil film to enhance sealing and reduce friction, while pressure-balanced plug valves maintain stable operation under high pressure and large diameter conditions.

Impact on Performance and Service Life

Plug valve sealing type classification directly influences the performance and service life of plug valves. The sealing structure affects compatibility with different media, temperature limits, pressure ratings, and resistance to wear. Engineers consider these factors when selecting plug valves for applications such as chemical processing, oil and gas, water treatment, and power generation.

Plug valve sealing type classification guides engineers in balancing flow control, sealing reliability, and maintenance needs. For instance, a pressure-balanced plug valve provides stable torque and reliable sealing in high-pressure pipelines. A non-lubricated plug valve offers low maintenance for clean media but may have limitations in extreme temperatures. The choice of sealing type impacts not only the flow characteristics but also the long-term durability and operational efficiency of the plug valve.

Tip: Engineers should always evaluate plug valve sealing type classification based on actual process media, temperature, pressure, and expected wear conditions to ensure optimal valve performance and service life.

Soft-Seated Plug Valves

Soft Seat Materials and Structure

Soft-seated plug valves feature a plug and body interface lined with non-metallic materials. Manufacturers select seat materials based on chemical compatibility, temperature, and pressure requirements. Common choices include DEVLON, PEEK, PA12, EPDM, NBR, and PTFE. Each material offers distinct performance characteristics. For example, DEVLON provides reliable operation from -50°C to 175°C and supports pressures up to 1500 LB. PEEK extends the temperature range to 250°C and handles pressures up to 2500 LB. PTFE resists aggressive chemicals and operates at temperatures up to 260°C.

The self-sealing plug valve design uses the pressure of the process media to enhance the contact between the plug and the seat. This structure delivers good sealing performance, especially in clean media applications. Engineers often specify soft seal plug valves for processes that demand minimal leakage and low operating torque.

Application Scenarios and Benefits

Soft-seated plug valves excel in industries where tight shutoff and low friction are critical. Chemical processing plants, water treatment facilities, and food production lines frequently use these valves. The soft seat materials resist corrosion and contamination, making them suitable for handling pure liquids, gases, and slurries. Operators benefit from easy actuation, reduced wear, and simplified maintenance routines.

Key advantages include:

• Reliable sealing for clean and non-abrasive media

• Low torque requirements for manual or automated operation

• Quick shutoff response and minimal leakage

• Compatibility with a wide range of chemicals

The self-sealing plug valve structure further improves sealing reliability under fluctuating pressure conditions. NTGD plug valves with soft seats undergo rigorous testing to ensure consistent performance in demanding environments.

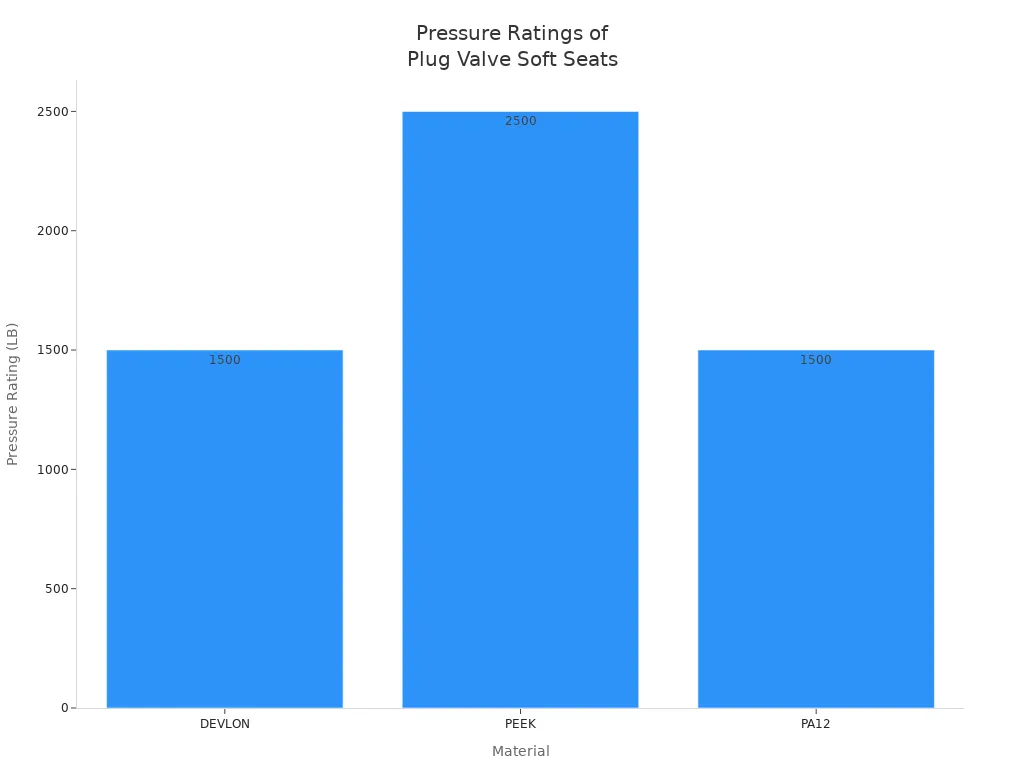

Limitations in Temperature and Pressure

Soft-seated plug valves have defined operational boundaries. Manufacturers specify nominal pressure ratings from 150 LB to 600 LB (1.00–6.4 MPa) and temperature ranges from -29°C to 180°C. The choice of seat material determines the exact limits. For example, PEEK seats allow higher temperatures and pressures than NBR or EPDM.

Note: Engineers should verify the compatibility of seat materials with process media and operating conditions before selection.

Soft seal plug valves may not suit high-temperature or abrasive service. For such scenarios, metal-seated plug valves or pressure-balanced plug valves offer better durability. Maintenance for soft-seated designs remains straightforward, with seat replacement possible during scheduled shutdowns. NTGD plug valve solutions provide engineers with flexibility in material selection and sealing structure to match specific process requirements.

Metal-Seated Plug Valves

Metal Contact Sealing Mechanism

Metal-seated plug valves utilize a direct metal-to-metal interface between the plug and the valve body. Manufacturers achieve tight sealing by machining both surfaces to precise tolerances. This design withstands high mechanical stress and resists deformation under elevated temperatures. The sealing surface often features hard-facing materials, such as tungsten carbide or ceramic, which enhance wear resistance and extend operational life.

Engineers select metal-seated plug valves for processes where soft materials would degrade rapidly. Hard materials like tungsten carbide and ceramic excel in abrasive environments. Stainless steel provides corrosion resistance, making it suitable for chemical processing. Special alloys can be customized for unique chemical resistance requirements.

Suitability for High Temp and Abrasive Media

Metal-seated plug valves perform reliably in severe service conditions. These valves maintain structural integrity and sealing performance at temperatures that exceed the limits of soft-seated designs. The hardened surfaces resist erosion from abrasive particles, which is critical in applications such as oil and gas production, refining, and petrochemical processing.

Operators benefit from reduced maintenance frequency and longer service intervals. Metal-seated plug valves offer improved operational lifetime and reliability, especially in pipelines carrying slurries or high-temperature gases. The tightened plug valve design ensures consistent sealing even when exposed to thermal cycling and pressure fluctuations.

Comparison with Soft-Seated Types

Metal-seated plug valves differ significantly from soft-seated plug valves in both performance and application scope. Metal-seated designs excel in high-pressure and high-temperature environments. They rely on precision machining for tight seals and may require lubrication to optimize performance. Soft-seated plug valves adapt to surface imperfections, providing zero-leakage capability in low to moderate pressure applications. However, soft seats wear out faster under abrasive or thermal stress.

• Metal-seated valves are designed for extreme conditions, providing reliable sealing under high pressure and temperature.

• Soft-seated valves are better for applications requiring tight seals at lower pressures, adapting to minor imperfections.

Maintenance for metal-seated plug valves typically involves inspection of the sealing surfaces and periodic lubrication. Engineers choose metal-seated plug valves for their durability and ability to handle challenging process media. NTGD plug valves with metal seats deliver robust performance in demanding industrial environments.

Lubricated Plug Valves

Lubrication Function and Sealing

Lubricated plug valves use a specialized lubrication system to enhance sealing and operational performance. Engineers inject lubricant under pressure between the plug and the valve body. This lubricant consists of a base oil and a viscosity improver, forming a protective film that renews the seal with each operation. The sealant not only prevents internal leaks but also shields the seating surfaces from corrosion. In oil lubricated hard seal plug valves, the lubricant acts as both a sealant and a friction reducer, ensuring consistent performance in demanding environments. Operators rely on this design for applications involving hydrocarbons, natural gas, and abrasive fluids, where maintaining a reliable seal is critical.

• Lubricant injection under pressure creates a dynamic seal.

• Sealants protect against corrosion and minimize leakage.

• Oil lubricated hard seal plug valves excel in pipelines with variable pressure and aggressive media.

Torque Reduction and Reliability

Lubrication plays a vital role in reducing the torque required to operate plug valves. The lubricant film allows the plug to turn freely, minimizing resistance and preventing seizure—a common failure point in non-lubricated designs. This reduction in friction translates to smoother operation and lower actuator loads. Engineers value lubricated plug valves for their ability to maintain reliable performance over extended service intervals. Proper lubrication seals minor leakage paths and enhances the valve’s operational reliability, even in high-cycle or severe service conditions.

Lubrication not only reduces torque but also extends the lifespan of valve components by protecting against wear and corrosion.

Operators select oil lubricated hard seal plug valves for installations where frequent cycling and harsh media demand robust reliability. The design ensures that the plug remains operable, even after prolonged exposure to challenging process conditions.

Lubricant Materials

Selecting the appropriate lubricant is essential for optimal plug valve performance. Manufacturers typically use special greases formulated with a base oil and viscosity improver. These lubricants must be compatible with the process media and temperature range. Engineers inject the lubricant under pressure to ensure complete coverage of the sealing surfaces. The sealant renews the seal between the plug and body, preventing leaks and corrosion while acting as a lubricant.

• Lubricants consist of base oil and viscosity improver.

• Sealants renew the seal and protect against corrosion.

• Special grease is injected under pressure for effective sealing and friction reduction.

Engineers must schedule regular maintenance for lubricated plug valves, typically at least every six months. This ensures the lubricant remains effective and the valve continues to deliver reliable sealing. In contrast, non-lubricated designs may require less frequent attention, depending on the application.

Plug valves with lubrication systems offer distinct advantages in operational reliability and sealing performance. Oil lubricated hard seal plug valves remain a preferred choice for high-pressure, high-cycle, and corrosive service scenarios, where maintaining a robust seal and smooth operation is essential.

Non-Lubricated / Sleeved Plug Valves

Sleeved Design Features

Non-lubricated or sleeved plug valves utilize a PTFE sleeve that lines the internal surface between the plug and the valve body. This sleeve creates a tight seal, minimizing leakage and reducing friction during operation. Engineers design these valves with a cavity-free structure, which prevents fluid from becoming trapped inside the valve. This feature ensures cleanliness and reduces the risk of contamination. The bi-directional shut-off capability allows the valve to seal effectively regardless of flow direction, enhancing operational safety and versatility. Manufacturers also incorporate advanced stem sealing systems, using special materials and springs to prevent leaks around the stem and maintain performance under pressure.

Advantages in Dirty Media

Sleeved plug valves excel in applications involving dirty, abrasive, or corrosive media. The self-lubricating properties of the PTFE sleeve enable the valve to operate smoothly even when exposed to particulates or contaminants. Unlike lubricated plug valves, which require external lubrication and are susceptible to contamination, sleeved designs maintain reliable performance with minimal intervention. Operators often select these valves for slurry pipelines, wastewater treatment, and chemical processing where media cleanliness cannot be guaranteed.

Sleeved plug valves provide consistent sealing and operational reliability in environments where dirt and debris pose challenges for traditional valve designs.

Maintenance Considerations

Non-lubricated plug valves require minimal maintenance, making them ideal for installations where regular servicing is impractical. The PTFE sleeve reduces wear and eliminates the need for periodic lubrication. However, valve seats can deteriorate quickly if exposed to excessive dirt or debris in the pipeline. Engineers recommend these valves for lower pressure systems and services where fouling liquids are not likely to accumulate. Operators should monitor seat condition during routine inspections to ensure continued performance.

• Non-lubricated plug valves operate better in lower pressure pipeline systems.

• Many engineers choose these valves for minimal maintenance compared to lubricated types.

• Valve seats may deteriorate quickly due to pipeline debris, requiring periodic inspection.

The sleeved plug valve design offers a practical solution for industries seeking reliable sealing and low maintenance in challenging media conditions. NTGD plug valve products incorporate advanced sleeved technology to deliver dependable performance across a wide range of industrial applications.

Pressure-Balanced Plug Valves

Pressure Balancing Principle

Pressure-balanced plug valves feature a specialized design that equalizes pressure on both sides of the plug. Engineers incorporate channels or ports within the valve body to achieve this balance. The mechanism minimizes the force required to operate the valve, even when the system pressure is high. By equalizing internal pressures, the plug can form a tight seal without excessive actuation force. This design enhances sealing performance and reduces wear on critical components. Operators benefit from reliable shutoff and consistent operation, especially in demanding process environments.

Pressure balancing not only improves operational efficiency but also extends the service life of plug valves in high-pressure systems.

High Pressure and Large Size Applications

Pressure-balanced plug valves excel in applications involving elevated pressures and large valve sizes. Engineers specify these valves for pipelines and process systems where standard designs may struggle with actuation or sealing reliability. The following table outlines typical size and pressure ranges for pressure-balanced plug valve installations:

Operators select pressure-balanced plug valves for oil and gas transmission, petrochemical plants, and power generation facilities. The robust construction and pressure equalization mechanism ensure stable performance across a wide range of operating conditions. These valves handle fluctuating pressures and large flow volumes without compromising sealing integrity.

Stability and Torque Performance

The pressure-balanced design significantly lowers the operating torque required for valve actuation. Engineers recognize this benefit as essential for high-pressure environments, where manual or automated operation can become challenging. The reduced torque allows for smoother plug movement and minimizes the risk of sticking or seizure. Operational stability improves as the valve remains unaffected by sudden pressure changes in the pipeline. Maintenance teams appreciate the predictable performance and reduced wear, which translate to longer intervals between servicing.

• Lower torque requirements simplify manual and automated operation.

• Enhanced stability ensures consistent sealing under variable pressure conditions.

• Maintenance intervals extend due to reduced wear and reliable actuation.

Pressure-balanced plug valves provide a dependable solution for critical process applications. The combination of pressure equalization, robust sealing, and low torque operation makes these valves a preferred choice for engineers seeking reliability and efficiency in high-pressure and large-diameter systems.

Classification of Plug Valves — Comparison

Sealing Performance Across Conditions

Engineers evaluate sealing performance by examining how each plug valve type responds to changes in temperature, pressure, and media composition. The classification of plug valves highlights distinct advantages for each sealing structure. Soft-seated plug valves deliver excellent sealing in clean, corrosive, or toxic media. Their non-metallic seats prevent leakage and avoid contaminating the process fluid. Metal-seated plug valves withstand high temperatures and abrasive conditions, maintaining reliable sealing even when exposed to thermal cycling or particulate-laden flows. Lubricated plug valves form an oil film that enhances sealing and reduces torque, making them suitable for high-pressure pipelines. Non-lubricated or sleeved plug valves use PTFE sleeves to minimize leakage and friction, especially in dirty or fouling media. Pressure-balanced plug valves maintain stable sealing performance under fluctuating pressures and large diameters.

The following table summarizes sealing performance characteristics for key plug valve types:

Engineers select plug valves based on the required sealing performance for specific process conditions. Each sealing type offers unique benefits for temperature, pressure, and media compatibility.

Durability and Maintenance

Durability and maintenance requirements vary across plug valve sealing types. Metal-seated plug valves provide extended service life in abrasive and high-temperature environments. Their hard-facing materials resist wear and deformation, reducing the frequency of maintenance. Lubricated plug valves require periodic injection of sealant to maintain sealing and minimize friction. This routine extends operational life but demands scheduled servicing. Non-lubricated or sleeved plug valves offer low maintenance due to self-lubricating PTFE sleeves. These valves suit installations where regular access is limited. Soft-seated plug valves allow easy seat replacement during planned shutdowns, supporting straightforward maintenance in clean media applications. Pressure-balanced plug valves combine robust construction with reduced wear, resulting in longer intervals between servicing.

Operators consider the following factors when assessing durability and maintenance:

• Metal-seated plug valves excel in severe service, minimizing downtime.

• Lubricated plug valves need regular sealant replenishment for optimal sealing.

• Sleeved plug valves reduce maintenance in dirty or abrasive media.

• Soft-seated plug valves simplify seat replacement and inspection.

• Pressure-balanced plug valves extend maintenance intervals in high-pressure systems.

Regular inspection and maintenance schedules ensure consistent sealing performance and prolong plug valve service life.

Selecting the Right Plug Valve

Selecting the appropriate plug valve requires a thorough assessment of process requirements and application conditions. Engineers analyze factors such as sealing capacity, lubrication needs, and suitability for specific media. Plug valves offer a larger sealing surface compared to ball valves, enhancing sealing performance in challenging environments. Lubricated plug valves improve operational life and seal tightness through friction reduction. Sleeved plug valves provide reliable sealing in abrasive or caustic media, while pressure-balanced plug valves deliver stable operation in high-pressure and large-diameter pipelines.

The table below outlines key selection factors:

Engineers match plug valve types to process needs by considering:

1. Media composition and potential for abrasion or corrosion.

2. Required sealing performance under specific temperature and pressure ranges.

3. Maintenance accessibility and operational cycles.

4. System size and pressure balancing requirements.

NTGD plug valve solutions support custom material selection and precision manufacturing, enabling engineers to optimize sealing performance for any industrial scenario. The classification of plug valves by sealing type provides a practical framework for selecting valves that deliver reliability, durability, and efficient maintenance.

NTGD Plug Valve Manufacturing Advantages

Material Selection and Precision

NTGD engineers select materials for plug valves based on the demands of each application. They evaluate chemical compatibility, temperature resistance, and mechanical strength. For soft-seated plug valve designs, they use advanced polymers such as PTFE, PEEK, and DEVLON. These materials deliver reliable sealing and low friction. Metal-seated plug valve options feature stainless steel, tungsten carbide, or special alloys. These metals withstand abrasion and high temperatures. NTGD applies precision machining to every plug valve component. Tight tolerances ensure consistent sealing performance and minimize leakage. The company uses CNC equipment and automated inspection systems to maintain quality across all production batches.

NTGD’s material selection process matches sealing types to specific media and operating conditions, supporting long-term reliability.

Sealing Process and Testing

NTGD implements rigorous sealing processes for every plug valve. Engineers design sealing surfaces to optimize contact pressure and minimize wear. For pressure-balanced plug valve models, they incorporate pressure equalization channels to reduce torque and improve stability. Each plug valve undergoes hydrostatic and pneumatic testing according to API 598, GB/T 13927, and ISO 5208 standards. Technicians verify zero leakage and inspect for surface defects. NTGD uses advanced test benches to simulate real-world operating conditions. The company documents all test results and provides traceability for every valve shipped.

Custom Solutions for Industry

NTGD offers custom plug valve solutions for diverse industries. Engineers collaborate with clients to define requirements for media, pressure, and temperature. They design plug valves with tailored sealing structures, including soft-seated, metal-seated, and pressure-balanced options. NTGD supports special coatings, extended stem designs, and automation interfaces. The company provides plug valves for chemical processing, oil and gas, water treatment, and power generation. Each NTGD plug valve meets strict quality standards and adapts to unique process challenges.

• Custom material selection for corrosive or abrasive media

• Specialized sealing designs for high-pressure or high-temperature service

• Integration with automated control systems

NTGD’s engineering team delivers plug valves that combine durability, reliability, and efficient maintenance. The advantages of plug valves from NTGD include robust sealing, precise manufacturing, and flexible customization for industrial applications.

Installation and Maintenance Best Practices

Installation Tips by Sealing Type

Proper installation ensures reliable operation and extends the service life of any plug valve. Each sealing type requires attention to specific details during setup. The following table summarizes essential installation practices:

For soft-seated and sleeved designs, technicians should avoid excessive force during tightening to prevent deformation of non-metallic components. Metal-seated and pressure-balanced types benefit from precise alignment and torque control, which help maintain optimal sealing performance. Lubricated valves require initial injection of the recommended sealant before commissioning.

Inspection and Replacement

Routine inspection forms the foundation of effective maintenance. Operators should schedule regular checks to identify early signs of wear, corrosion, or leakage. Key practices include:

• Visual inspection of external surfaces and stem packing.

• Functional testing to verify smooth actuation and shutoff integrity.

• Monitoring for unusual noises or resistance during operation.

Cleaning and flushing the valve internals remove accumulated debris that could compromise sealing. When technicians detect seat or sleeve wear, timely replacement prevents leaks and maintains system integrity. Adjusting stem packing as needed minimizes fugitive emissions and ensures continued reliability. For critical applications, professional inspections using advanced diagnostic tools can uncover hidden issues before they escalate.

Operational Guidance

Consistent operational practices maximize the service life of plug valves across all sealing types. Operators should:

• Cycle the valve periodically to prevent sticking, especially in infrequently used lines.

• Maintain proper lubrication for lubricated designs, following manufacturer recommendations for sealant type and injection intervals.

• Store spare parts, such as seats and sleeves, in controlled environments to ensure readiness for quick replacement.

• Document all maintenance activities and performance observations for future reference.

A proactive approach, combining regular inspection, cleaning, and timely component replacement, supports stable operation and minimizes unplanned downtime. By following these best practices, engineers ensure that each plug valve delivers dependable sealing and long-term value in demanding industrial environments.

Engineers select plug valve sealing types based on working principle and application needs. The table below outlines key differences:

NTGD’s expertise in material selection and precision manufacturing ensures reliable performance. Their custom solutions meet diverse industrial standards. Engineers can consult NTGD for optimal plug valve selection.
