Plug valves for corrosive service are designed to resist chemical attack from aggressive media, ensuring stable sealing and long service life.
Corrosion-resistant materials or internal linings protect critical valve components from degradation.
NTGD Plug Valve For Corrosive Service
NTGD engineers each plug valve for high performance in corrosive service applications across chemical, petrochemical, pharmaceutical, and specialty chemical industries. Corrosion accounts for 25-30% of valve failures in these environments. NTGD addresses this challenge through advanced material selection and robust design. Common reliability issues in industrial valves include corrosion, leakage, plug seizure, and operational stiffness, as shown below:
NTGD’s corrosive service plug valve solutions focus on minimizing these risks through precise engineering and stringent manufacturing control.
Key Features
- NTGD plug valves are engineered to resist corrosion, which is a major cause of valve failures in chemical and pharmaceutical industries.
- Proper material selection, such as PTFE and PFA linings, enhances valve durability and prevents chemical degradation in harsh environments.
- Regular inspection and timely replacement of seals are crucial to maintaining valve performance and preventing leaks in corrosive applications.
- Streamlined flow paths in plug valves reduce turbulence and minimize the risk of corrosion, extending the service life of the valve.
- Choosing the right seal type—metal or non-metal—depends on the specific chemical environment, ensuring reliable isolation and leak prevention.
Corrosive Service Challenges
Chemical and pitting corrosion
Corrosive media in chemical, petrochemical, and pharmaceutical processes create significant risks for any valve in service. Chemical corrosion degrades metallic surfaces, especially when acids, bases, or aggressive solvents interact with the valve body and internal components. Pitting corrosion presents a unique threat. This localized attack often initiates after the protective layer on the valve surface breaks down. Engineers observe that pitting corrosion can develop rapidly in environments containing CO₂, H₂S, or abrasive particles. The result is the formation of irregular pits that compromise the integrity of the valve.
Stress corrosion cracking also occurs in plug valves exposed to both mechanical stress and corrosive chemicals. This phenomenon leads to internal cracks, which may not be visible during routine inspections. Over time, these cracks can propagate and cause sudden valve failure. Microbially induced corrosion represents another challenge, especially in systems where sulfate-reducing bacteria thrive. These bacteria break down protective films, accelerating localized corrosion and reducing the service life of the valve.
Key types of corrosion encountered in plug valve applications include:
- Pitting corrosion from damaged protective layers, especially in abrasive or high-flow environments.
- Stress corrosion cracking due to combined mechanical stress and chemical exposure.
- Microbially induced corrosion from bacterial activity after film breakdown.
Seal aging and failure
Seal integrity determines the long-term reliability of any valve in corrosive service. Elastomeric and polymeric seals face continuous attack from aggressive media. Over time, chemical exposure leads to hardening, swelling, or embrittlement of the seal material. This degradation reduces the effectiveness of the seal, increasing the risk of leakage.
Temperature fluctuations and pressure cycling further accelerate seal aging. In plug valve applications, improper material selection for seals can result in premature failure, even if the valve body resists corrosion. Engineers must match seal materials precisely to the process media and operating conditions. PTFE and PFA linings offer enhanced resistance, but even these materials require careful evaluation for compatibility with specific chemicals.
Aging seals not only compromise the sealing function but also increase maintenance demands. Regular inspection and timely replacement of seals are essential to maintain valve performance and prevent unplanned downtime in corrosive service environments.
Plug Valve Engineering for Corrosive Media
Streamlined flow path
Engineers design plug valve systems for corrosive service with a streamlined flow path. This approach reduces turbulence and minimizes dead zones inside the valve body. Corrosive substances often accumulate in areas with stagnant flow, increasing the risk of localized attack and material degradation. By optimizing the internal geometry, the plug valve limits exposure of sensitive surfaces to aggressive chemicals.
- The streamlined flow path minimizes areas where corrosive substances can accumulate.
- Plug valves utilize corrosion-resistant materials like PTFE coatings and stainless steel.
- Superior sealing performance reduces the risk of leaks, enhancing safety in corrosive environments.
A well-designed flow path also improves flushing efficiency during cleaning cycles. Operators can remove residual chemicals more effectively, which helps maintain the integrity of the valve over time. The use of PTFE or PFA linings further protects the internal surfaces from direct contact with acids, bases, and solvents. This combination of design and material selection extends the service life of the valve in demanding applications.
Isolation and sealing reliability
Isolation and sealing reliability remain critical for plug valve performance in corrosive media. Engineers select sealing systems that withstand chemical attack and maintain tight shutoff under fluctuating temperature and pressure. The choice between metal and non-metal seals depends on the process requirements and the nature of the corrosive media.
Field data demonstrates the long-term reliability of plug valve isolation and sealing systems. The following table summarizes a test result for a plug valve in a corrosive environment:
This result highlights the durability of properly engineered sealing interfaces. Engineers often specify PTFE or PFA-lined plug valves for strong acids and bases, while alloy plug valves suit high-temperature or abrasive conditions. The combination of robust materials and precise manufacturing control ensures consistent isolation and leak prevention, even after years of continuous operation.
NTGD Corrosive Service Plug Valve Design
PTFE/PFA lining and alloy materials
NTGD applies advanced lining technology to address the challenges of corrosive media in industrial valves. Engineers select PTFE and PFA linings for plug valve bodies and internal surfaces. These fluoropolymer linings resist attack from strong acids, bases, and organic solvents. PTFE and PFA provide a non-reactive barrier, preventing chemical degradation and extending the service life of the valve. NTGD’s manufacturing process ensures uniform lining thickness and strong adhesion, which reduces the risk of lining separation during thermal cycling or pressure fluctuations.
Alloy materials also play a critical role in corrosive service plug valve reliability. NTGD engineers specify stainless steel, duplex steel, and high-nickel alloys for valve components exposed to aggressive chemicals. These alloys offer excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. The selection of alloy grade depends on the process media and operating conditions. For example, high-nickel alloys perform well in environments containing hydrochloric acid or sulfuric acid, while duplex stainless steel suits applications with chloride-rich solutions.
Tip: Engineers should evaluate both the chemical compatibility and mechanical strength of lining and alloy materials when selecting a plug valve for corrosive service. Proper material selection minimizes maintenance and maximizes operational uptime.
The combination of PTFE/PFA lining and corrosion-resistant alloys allows NTGD plug valves to maintain integrity in chemical, petrochemical, and pharmaceutical applications. This approach addresses the most common failure modes in corrosive service, including chemical attack, pitting, and seal degradation.
Metal vs. non-metal seal options
Seal selection determines the isolation performance and longevity of a plug valve in corrosive environments. NTGD offers both metal and non-metal seal options to match the requirements of different process conditions.
Metal seals provide several advantages in corrosive service plug valve applications:
- Metal seals resist a wide range of chemicals, making them suitable for aggressive fluid environments.
- They do not swell, degrade, or react chemically, which ensures high chemical compatibility.
- Metal seals exhibit strong corrosion resistance and maintain their integrity over extended service periods.
- These seals withstand extreme temperatures and pressure fluctuations, reducing the frequency of maintenance and replacement.
- Metal bellows seals deliver high strength and reliability in harsh operating conditions.
Non-metal seals, such as PTFE or elastomeric materials, offer flexibility and low friction. They suit applications where chemical compatibility aligns with the seal material and where lower operating temperatures prevail. However, non-metal seals may experience swelling, hardening, or embrittlement when exposed to certain chemicals or elevated temperatures. Engineers must carefully match non-metal seal materials to the process media to avoid premature failure.
NTGD’s expertise in seal technology enables engineers to select the optimal sealing solution for each corrosive service plug valve. The choice between metal and non-metal seals depends on the chemical composition, temperature, and pressure of the process media. This engineering-driven approach ensures reliable isolation, leak prevention, and long-term valve performance in demanding industrial environments.
Key Benefits in Corrosive Service
Durability and service life
NTGD engineers design each valve for maximum durability in corrosive environments. The selection of PTFE and PFA linings, along with corrosion-resistant alloys, ensures that the valve resists chemical attack from acids, bases, and aggressive solvents. These materials prevent pitting and crevice corrosion, which often shorten the lifespan of industrial valves in chemical processing plants. Operators observe that NTGD plug valves maintain mechanical integrity even after years of exposure to harsh media.
The manufacturing process controls lining thickness and adhesion, reducing the risk of separation during temperature or pressure changes. This attention to detail extends the service life of the valve, minimizing the frequency of replacements. In applications where downtime leads to significant losses, long-term reliability becomes essential. NTGD’s approach allows facilities to operate with confidence, knowing that their valves will withstand demanding conditions.
Note: Engineers recommend regular inspection intervals based on process media and operating cycles. Proper material selection and manufacturing control contribute to extended service intervals.
Leak prevention and low maintenance
Leak prevention remains a critical requirement in corrosive service. NTGD plug valves utilize advanced sealing systems that maintain tight shutoff under fluctuating pressures and temperatures. The choice between metal and non-metal seals depends on the chemical compatibility and operating conditions. Metal seals offer superior resistance to swelling and degradation, while PTFE seals provide low friction and chemical inertness.

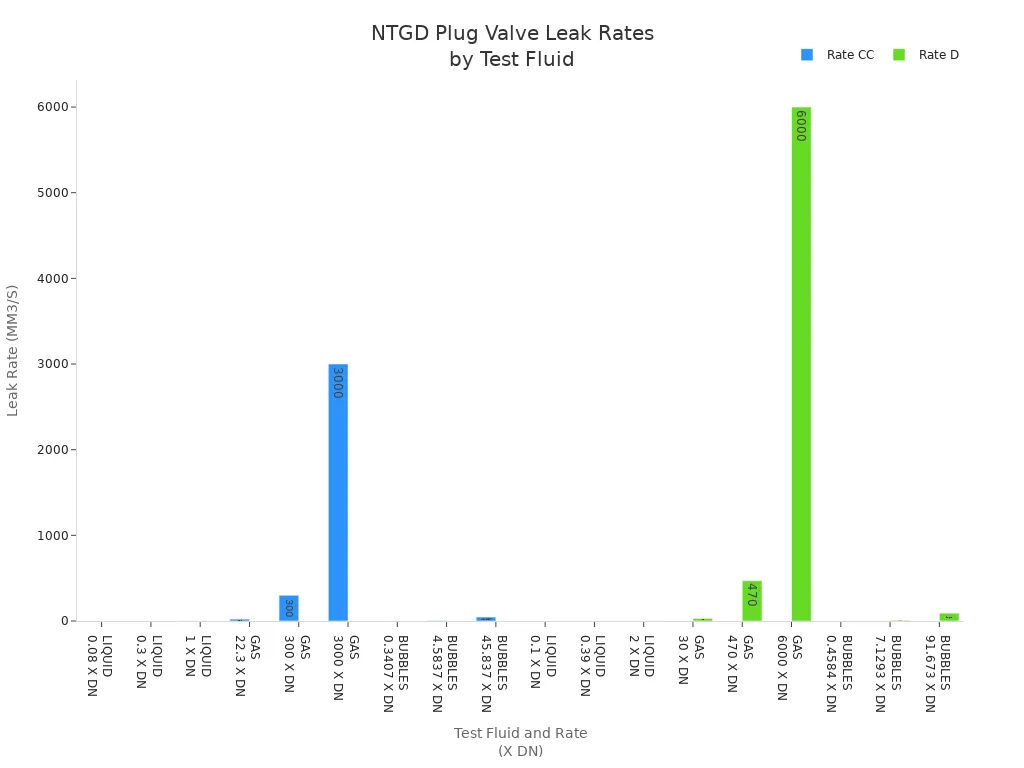

Field data demonstrates low leakage rates for NTGD valves in aggressive chemical environments. The following table summarizes typical leakage rates:
Operators report that NTGD valves require minimal maintenance due to robust sealing and corrosion-resistant construction. The streamlined flow path reduces debris accumulation, further lowering the risk of operational issues. Maintenance teams benefit from fewer interventions and reduced downtime.
- Reliable sealing systems prevent leaks in strong acid and base applications.
- Low maintenance requirements support continuous operation in industrial settings.
- Consistent performance reduces total cost of ownership for facilities handling corrosive media.
NTGD plug valves deliver proven durability, leak prevention, and low maintenance, making them a preferred choice for engineers managing corrosive service applications.
Selection Guide for Corrosive Service Plug Valve
Media and concentration compatibility
Engineers must evaluate the chemical composition and concentration of process media before selecting a corrosive service plug valve. The type and concentration of acids, bases, salts, or organic solvents directly influence material degradation rates. For example, high concentrations of hydrochloric acid or sulfuric acid require fluoropolymer linings such as PTFE or PFA. These linings form a non-reactive barrier, protecting the valve body and internal components from chemical attack.
Plug valve manufacturers recommend matching lining and seal materials to the specific chemical environment. Stainless steel or high-nickel alloys suit applications with moderate concentrations of corrosive agents, while PTFE-lined valves excel in highly aggressive media. Engineers should also consider the presence of abrasive particles, which can accelerate wear and pitting corrosion. In specialty chemical and pharmaceutical industries, media purity and compatibility remain critical for process integrity.
Tip: Always verify chemical compatibility charts provided by industrial valves suppliers. These charts help determine the optimal lining and seal materials for each application.
Temperature, pressure, and material match
Temperature and pressure conditions play a decisive role in valve selection for corrosive service. Each material exhibits unique performance limits under varying thermal and mechanical loads. Engineers must consult ASME standards and manufacturer data to ensure safe operation within specified ranges.
The following table summarizes recommended temperature and pressure limits for common plug valve materials in corrosive service:
ASME classifications define pressure-temperature performance limits, guiding engineers in selecting the appropriate valve class for each application. For strong acids at elevated temperatures, alloy plug valves offer superior resistance to stress corrosion cracking. PTFE/PFA-lined valves perform best in low to moderate temperature ranges, where chemical inertness is paramount.
Cost considerations also influence material selection. The table below outlines cost implications and suitability for corrosive applications:
Engineers must balance performance requirements with budget constraints, selecting materials that ensure long-term reliability without excessive cost.
Valve size and actuation
Valve size and actuation method significantly affect performance and reliability in corrosive service plug valve applications. The conically tapered plug design enables effective flow control, making the valve suitable for aggressive chemicals and viscous fluids. PFA-lined plug valves provide exceptional corrosion resistance, which is essential for handling slurries and challenging media.
Large sealing areas in plug valves enhance leak prevention, especially in high-pressure or abrasive environments. The ability to reseal the valve inline through quick adjustments reduces maintenance needs and minimizes downtime. Compared to ball valves, plug valves deliver better sealing capabilities due to their larger sealing surfaces.
Engineers must consider actuation requirements based on valve size and operating torque. Plug valves often require higher turning torques, which may necessitate larger actuators. Pneumatic, electric, or manual actuation options should be evaluated for each installation. The choice of actuation impacts both operational efficiency and maintenance schedules.
Note: For automated systems, select actuators rated for the maximum torque and cycle frequency expected in corrosive service. This ensures reliable operation and reduces the risk of actuator failure.
The table below lists relevant international standards and certifications for plug valves in corrosive service:
Compliance with these standards ensures that the selected valve meets safety, reliability, and environmental requirements in industrial applications.
Selection Checklist for Engineers:
- Identify process media and concentration.
- Match lining and seal materials to chemical environment.
- Verify temperature and pressure limits for selected materials.
- Evaluate cost implications and long-term durability.
- Choose appropriate valve size and actuation method.
- Confirm compliance with international standards and certifications.
Engineers who follow these criteria can optimize the selection of corrosive service plug valve solutions, ensuring safe, reliable, and cost-effective operation in chemical, petrochemical, and specialty process industries.
Industry Applications
Chemical and petrochemical plants
Chemical and petrochemical plants rely on plug valves for safe and efficient handling of corrosive media. Engineers select these valves for pipelines that transport acids, alkalis, and aggressive solvents. Plug valve manufacturers design products with corrosion-resistant alloys and PTFE linings to withstand harsh chemical exposure. Operators use these valves in processes where fluid purity and leak prevention are critical. The streamlined flow path and robust sealing systems minimize the risk of failure, even when the valve operates in contact with highly corrosive liquids. Maintenance teams report reduced downtime and lower costs due to the durability of these valves.
Key applications include:
- Acid and caustic transfer lines
- Oil pipelines and gas processing units
- Refining operations requiring precise flow control
Pharmaceutical and specialty chemicals
Pharmaceutical and specialty chemical industries demand strict compliance with regulatory standards. Engineers specify plug valves that meet API, ANSI, or DIN requirements to ensure process safety and product quality. These industries often handle high-purity or hazardous chemicals that can degrade standard valve materials. PTFE or PFA-lined valves provide a non-reactive barrier, preventing contamination and material breakdown. The smooth internal surfaces of these valves support clean-in-place procedures, which are essential for maintaining hygiene and preventing cross-contamination. Operators value the reliability and ease of maintenance that these valves offer in batch and continuous processing.
Note: Compliance with international standards ensures that the valve and actuator perform reliably in regulated environments.
Water treatment and mining
Water treatment and mining operations present unique corrosion challenges. Mining environments expose valves to acids, alkalis, and abrasive slurries. Engineers select eccentric plug valves made from stainless steel or duplex stainless steel to resist corrosion and maintain structural integrity. These materials protect valve components from chemical attack and prevent leakage. In water treatment plants, operators use plug valves to control the flow of aggressive chemicals used for disinfection and pH adjustment. The robust design and material selection ensure long service life, even under continuous exposure to corrosive substances.
Plug valve manufacturers continue to innovate, providing solutions that address the evolving needs of these demanding industries.
Plug Valve Comparison
Plug vs. ball valves
Engineers often evaluate plug valves and ball valves for corrosive service applications. Both types offer reliable shutoff, but their performance differs in aggressive chemical environments. Plug valves feature a tapered plug that provides excellent sealing, especially at high temperatures. The smooth internal design of a plug valve minimizes residue buildup, which reduces maintenance frequency. Ball valves use a floating ball mechanism. Over time, the ball can wear down, leading to potential leaks when exposed to high temperatures or abrasive chemicals.
The choice of material plays a critical role in corrosion resistance. Plug valves constructed from 316L stainless steel resist aggressive chemicals more effectively than standard ball valves. Ball valves may experience corrosion in harsh environments, which can compromise sealing and increase maintenance requirements.
Engineers select plug valves for processes requiring high sealing integrity and corrosion resistance. Ball valves suit less aggressive media or applications with lower temperature demands.
Plug vs. diaphragm and butterfly valves
Plug valves, diaphragm valves, and butterfly valves each offer unique advantages for corrosive service. Plug valves use a one-piece body and simple internals, which support easy maintenance and high reliability. The strong corrosion resistance of a plug valve makes it suitable for chemical processes involving acids, bases, or viscous fluids. Diaphragm valves excel in on-off and throttling service, providing tight shutoff and no stem leakage. Butterfly valves feature a lightweight and compact design, with low-pressure drop and high-pressure recovery.
However, each valve type has limitations. Plug valves require higher driving torque for face sealing, and incorrect bushing material selection can affect performance. Diaphragm valves do not suit extreme temperatures or high-pressure systems. Butterfly valves may leave residual materials in the pipeline and experience flow turbulence that affects disc movement.
Engineers consider process media, temperature, pressure, and maintenance needs when selecting the appropriate valve. Plug valves provide customizable solutions for harsh mediums and zero leakage requirements, making them a preferred choice in many corrosive service applications.
Case Studies in Corrosive Service
Chemical plant success stories
Engineers in chemical plants often face severe corrosion challenges. One facility processing concentrated hydrochloric acid replaced legacy valves with NTGD plug valves lined with PTFE. The new valves operated without leakage for over five years. Maintenance teams observed no signs of pitting or crevice corrosion on the valve body or plug. The streamlined flow path reduced dead zones, which limited the accumulation of aggressive media. Operators reported that the valve required only routine inspection, with no unplanned shutdowns due to seal failure.
Another plant handling mixed acid streams selected alloy plug valves for transfer lines. The engineering team chose duplex stainless steel for its resistance to chloride-induced stress corrosion cracking. After three years, inspection data showed that the valve maintained full sealing performance. The plant documented a 40% reduction in maintenance costs compared to previous valve types. These cases demonstrate that proper material selection and lining technology extend valve service life in corrosive environments.
Performance in acid and caustic media
Acid and caustic media present unique risks for valve integrity. In a specialty chemical plant, engineers installed PFA-lined plug valves in sodium hydroxide and sulfuric acid lines. The lining provided a non-reactive barrier, preventing chemical attack on the valve internals. Field tests confirmed that the valve maintained low torque operation and reliable shutoff after thousands of cycles.
The table below summarizes observed performance metrics for plug valves in acid and caustic service:
These results highlight the importance of matching valve materials to process media. Engineers achieve long-term reliability and safety by selecting the correct valve design for each corrosive application.
NTGD plug valves address key engineering challenges in corrosive service by combining advanced materials and precise manufacturing. The table below highlights solutions for common issues:
Proper material and seal selection ensures long-term reliability. For example:
- Lip-shaped rubber seals maintained zero leakage in natural gas pipelines for three years.
- Hastelloy C276 and tungsten carbide coatings extended valve life in marine environments.
- Multi-layer seals enabled continuous operation in hydrochloric acid service.
Engineers rely on NTGD’s expertise and product range for dependable plug valve solutions in corrosive applications.
FAQ
What materials does NTGD recommend for plug valves in corrosive service?
NTGD recommends PTFE or PFA linings for strong acids and bases. Stainless steel, duplex steel, and high-nickel alloys suit applications with aggressive chemicals or elevated temperatures.
How do engineers select between metal and non-metal seals?
Engineers evaluate chemical compatibility, temperature, and pressure. Metal seals resist extreme conditions and chemical attack. Non-metal seals, such as PTFE, offer low friction and flexibility for moderate environments.
What standards apply to plug valves in corrosive applications?
How often should plug valves undergo inspection in corrosive service?
Inspection intervals depend on media and operating cycles. Most engineers recommend quarterly visual checks and annual performance testing to ensure reliability and prevent unexpected failures.
Tip:
Always verify chemical compatibility charts before specifying plug valve materials for corrosive media. This step helps prevent premature valve failure and ensures long-term reliability.
