NTGD’s pressure-balanced plug valve delivers precise fluid control in demanding environments where high pressure and differential pressure are routine. Industries such as oil and gas, petrochemical, and power generation rely on pressure-balanced plug valve and balanced plug valve designs for critical process lines. The pressure-balancing structure, advanced sealing, and lubricated system minimize operating torque and maximize sealing reliability. Operators benefit from robust corrosion resistance, rapid operation, and consistent performance, even with abrasive or corrosive media. These features ensure safe, dependable operation and long service life in harsh industrial conditions.

Key Features

• NTGD’s pressure-balanced plug valve ensures smooth operation in high-pressure environments, making it ideal for industries like oil and gas.
• The unique design features pressure balance holes that prevent taper locking, reducing operating torque by over 60%.
• Lubrication is crucial; it minimizes friction and protects against wear, enhancing the valve’s performance in abrasive or corrosive media.
• Regular maintenance, including grease injection, is essential for extending the service life and reliability of the valve.
• NTGD offers a variety of materials and pressure classes, ensuring compatibility with diverse industrial applications.
• Flexible actuation options, including manual and automated systems, enhance operational efficiency and safety.
• The robust construction of NTGD valves supports reliable sealing and consistent performance, even under fluctuating pressures.
• Customization options allow engineers to tailor valves to specific process needs, ensuring optimal performance in demanding environments.

Pressure-balanced Plug Valve Principle

Balanced Plug Valve Structure

A pressure-balanced plug valve balanced plug valve features a distinctive internal structure engineered for high-pressure systems. The valve body houses a cylindrical or tapered plug that rotates within precision-machined seats. Two pressure balance holes connect the chambers at each end of the plug with the line pressure. This configuration allows the line pressure to act on both ends of the plug, generating a balancing force that prevents taper locking—a common issue in conventional plug valves. Conventional designs often suffer from line pressure pushing the plug into its tapered seat, which increases operating torque and complicates actuation. The NTGD plug valve design eliminates this problem, ensuring smooth operation and consistent performance.

Tip: The quarter-turn rotary motion of the plug enables rapid open-close cycles, making the valve ideal for high-pressure environments where quick response is critical.

Typical Components of a Balanced Plug Valve:

1. Body
2. Ports
3. Seat
4. Stem
5. Plug (disc)
6. Handle or actuator
7. Bonnet
8. Packing
9. Gland nut

This robust construction supports reliable sealing and efficient fluid control, even in demanding service conditions.

Pressure Equalization Mechanism

The pressure equalization mechanism represents the core working principle of plug valves designed for high-pressure systems. Internal pressure balance channels offset the axial thrust exerted by the medium on the plug. High-pressure fluid acts on both ends of the plug, eliminating friction caused by unilateral pressure extrusion. Operators only need to overcome the friction between the sealing pairs, which reduces the required torque by more than 60%, especially in large-diameter valves.

Feature	Description
Core Working Principle	The pressure balance mechanism offsets the axial thrust of the medium pressure on the plug through an internal pressure balance channel.
Axial Force Balance	High-pressure medium acts on both ends of the plug, eliminating friction resistance from unilateral pressure extrusion.
Torque Reduction	Only friction between sealing pairs needs to be overcome, reducing torque by more than 60%, especially for large-diameter high-pressure valves.

Field tests and multichamber pressure experiments confirm the effectiveness of this mechanism. Pressure equalization maintains reliable sealing under high differential pressure, with cavity pressures and pressure gradients matching full-scale operational results.

Key Findings	Description
Multichamber Pressure Tests	Demonstrated the effectiveness of pressure equalization mechanisms in maintaining valve sealing under high differential pressure.
Relationship Between Pressures	Highlighted the importance of spatial pressure gradients in achieving accurate pressure equalization.
Validation of Results	Cavity pressures and pressure equalization factors matched full-scale results, confirming the effectiveness of the testing method.

Lubricated Plug Valve Design

A lubricated plug valve incorporates advanced lubrication and sealing systems to enhance performance in abrasive or corrosive media. The plug and seat surfaces receive a continuous supply of lubricant, which reduces friction and protects against wear. This design ensures smooth operation, even in high-pressure environments where dry friction could compromise sealing integrity.

Design Feature	Benefit
Use of lubricants	Reduces friction and enhances sealing, making valves suitable for abrasive media.
Tailored materials	Ensures durability and reliability against aggressive media, enhancing overall performance.
Maintenance requirements	Allows for effective operation in non-continuous applications, ensuring longevity and reliability.

Operators inject lubricant through dedicated grease fittings, maintaining a robust seal and minimizing the risk of leakage. The lubricated plug valve design supports extended service intervals and reduces maintenance costs. NTGD selects materials and lubricants tailored to the specific media and pressure class, ensuring optimal performance in oil, gas, chemical, and steam applications.

Note: Lubrication not only improves sealing but also protects internal components from corrosion and erosion, extending the valve’s operational life in high-pressure systems.

The working principle of plug valves, combined with pressure balancing and lubrication, delivers reliable fluid control and low operating torque. NTGD’s engineering approach ensures that each pressure-balanced plug valve balanced plug valve meets the rigorous demands of modern industrial processes.

Key Features & Construction

Sealing System & Grease Injection

NTGD engineers design the sealing system of the lubricated plug valve to deliver reliable performance in high-pressure and abrasive environments. The valve features a rational sealing structure that enhances operational stability. Oil groove lubrication allows operators to inject grease directly into the sealing surfaces. This process maintains a robust seal and prevents medium contamination. The selection of seal lubricant plays a critical role in sustaining valve performance over extended service intervals.

Feature	Benefit
Rational Design and Reliable Sealing	Enhances sealing efficacy and facilitates smooth valve operations.
Oil Groove Lubrication Design	Allows for grease injection, improving sealing performance and ensuring stable operation.
Seal Lubricant Selection	Critical for preventing medium contamination and ensuring sustained valve performance.

Operators benefit from the lubricated plug valve’s ability to maintain low operating torque and consistent sealing, even when handling corrosive or particulate-laden fluids. The grease injection system supports rapid maintenance and reduces downtime in critical process lines.

Tip: Regular grease injection extends the service life of the lubricated plug valve and ensures optimal sealing under fluctuating pressure conditions.

Materials & Pressure Classes

NTGD manufactures lubricated plug valves using a range of robust materials. Carbon steel, stainless steel, duplex steel, and alloy materials provide durability and corrosion resistance. These material choices enable the valve to withstand aggressive media and high differential pressures. The table below summarizes the main construction features and advantages.

Feature	Description
Materials	Carbon steel, stainless steel, duplex steel, alloy material
Advantages of Plug Valves	1. Quick and easy operation (open/close)
	2. Low flow resistance
	3. Simple structure, small volume, light weight, easy maintenance
	4. Flexible installation direction
	5. No vibration and low noise

NTGD plug valves are available in multiple pressure classes to suit diverse industrial applications. The following table outlines typical pressure ratings and application ranges.

Pressure Class	Typical Pressure Rating (psi)	Typical Applications
Class 1500	~3,705 at 100°F	Oil and gas pipelines, high-pressure steam systems, power plants, petrochemical refining
Class 800	~1,995 at 100°F	Condensate return lines, utility water systems, low-to-mid pressure chemical lines, boiler blowdown applications
Class 2500	~6,170 at 100°F	Subsea and offshore oil platforms, supercritical steam systems, high-pressure gas processing, critical service shut-off valves

The wide selection of material grades and pressure classes ensures that NTGD plug valves meet the requirements of oil, gas, chemical, and power industries.

End Connections & Sizes

NTGD offers several types of plug valves to accommodate different piping systems. The lubricated plug valve comes in a variety of end connection options, including flanged, butt-weld, socket-weld, and threaded designs. These connection types provide flexibility for installation and maintenance.

Connection Type	Size Range
Flanged Connection	1 1/2” to 12”

Engineers can select the appropriate size and connection type to match system specifications. The key features of plug valves include simple structure, light weight, and easy maintenance, making them suitable for both new installations and retrofits. NTGD supports a broad size range, ensuring compatibility with standard and custom pipeline dimensions.

Note: The combination of robust materials, advanced sealing, and flexible connections positions NTGD lubricated plug valves as a reliable solution for high-pressure and critical service applications.

Performance & Advantages

Low Operating Torque

Engineers recognize the importance of low operating torque in high-pressure systems. NTGD’s pressure-balanced plug valve balanced plug valve achieves this through its advanced pressure equalization mechanism. The plug design distributes line pressure evenly across both ends, which minimizes axial thrust and prevents taper locking. Operators experience smooth actuation, even in large-diameter valves. The lubricated plug valve further reduces friction by maintaining a consistent layer of lubricant between the plug and seat surfaces. This combination allows for rapid open-close cycles and precise fluid control, even in high-pressure environments. Maintenance teams report that manual or automated actuation requires less force, which improves safety and reduces wear on actuators.

Tip: Low operating torque not only simplifies manual operation but also extends the lifespan of actuation components in automated systems.

Sealing Performance

Reliable sealing remains a critical requirement for process integrity. NTGD’s lubricated plug valve incorporates a robust sealing system with oil groove lubrication. Operators inject grease directly into the sealing surfaces, which creates a dynamic barrier against leaks. The pressure-balanced plug valve balanced plug valve maintains stable sealing under fluctuating pressures and abrasive media. Engineers select seal materials and lubricants based on the chemical composition and temperature of the process fluid. This approach ensures that the valve delivers consistent performance in high-pressure systems and aggressive service conditions. The advantages of plug valves include their ability to maintain tight shutoff, even when exposed to corrosive or particulate-laden fluids.

• Sealing system resists chemical attack and erosion.
• Lubrication prevents dry friction and reduces the risk of leakage.
• Pressure balance mechanism supports reliable sealing under high differential pressure.

Durability & Maintenance

NTGD designs the lubricated plug valve for extended service life and simplified maintenance. The valve body uses corrosion-resistant materials such as carbon steel, stainless steel, and alloy steel. The lubrication system protects internal components from wear and chemical degradation. Maintenance intervals depend on operating conditions, but regular inspections help identify potential issues early. The following table summarizes recommended maintenance practices and their impact on valve durability:

Maintenance Interval	Recommendation	Consequence of Neglect
Once or twice a year	Get experts to check valves to find hidden problems.	Increased risk of leaks and operational failures.
Annually or biannually	Schedule inspections based on operating conditions.	Valves over ten years old are prone to leakage.
More frequent in harsh conditions	High-pressure or high-temperature environments may require more checks.	Shortened lifespan due to wear and tear.
Regular maintenance	Helps address potential problems early.	Exposure to aggressive chemicals accelerates degradation.

Operators in oil, gas, and chemical plants report that NTGD plug valves maintain reliable performance for over a decade with proper maintenance. The lubricated plug valve design supports quick grease injection and easy access for inspection. This reduces downtime and ensures that the valve continues to deliver safe, dependable fluid control in demanding applications.

Note: Regular maintenance and timely lubrication extend the operational life of NTGD plug valves, even in high-pressure environments.

Flexible Actuation Options

NTGD engineers design the pressure-balanced plug valve to support a wide range of actuation methods. This flexibility allows system designers to select the most suitable actuation for each application, whether manual, electric, pneumatic, or hydraulic. The balanced plug valve structure reduces operating torque, which enables reliable performance with both manual handles and automated actuators.

Operators in oil and gas facilities often choose manual actuation for smaller valves and non-critical lines. NTGD plug valves feature ergonomic handles and clear position indicators, which simplify operation and reduce the risk of misalignment. For larger sizes or remote installations, engineers specify electric or pneumatic actuators. These actuators integrate seamlessly with NTGD plug valve mounting pads and stem interfaces, ensuring precise control and rapid response.

Note: Automated actuation improves safety and process efficiency in high-pressure or hazardous environments.

The table below summarizes common actuation options and their advantages for NTGD pressure-balanced plug valves:

Actuation Type	Typical Application	Advantages
Manual Handle	Small-diameter, accessible lines	Simple, cost-effective, easy maintenance
Electric Actuator	Remote or automated control	Precise operation, integration with DCS
Pneumatic Actuator	Fast cycling, hazardous areas	Rapid response, explosion-proof
Hydraulic Actuator	High-force, large-diameter valves	Reliable in extreme pressure conditions

Engineers select actuation based on system requirements, valve size, and safety protocols. NTGD supports ISO 5211 mounting standards, which allow direct actuator installation without additional adaptation. This compatibility streamlines commissioning and reduces installation time.

NTGD plug valves maintain stable performance regardless of actuation type. The pressure-balanced design ensures low torque and consistent sealing, which protects actuators from overload and extends service life. Plant operators benefit from reduced maintenance and improved operational reliability across manual and automated systems.

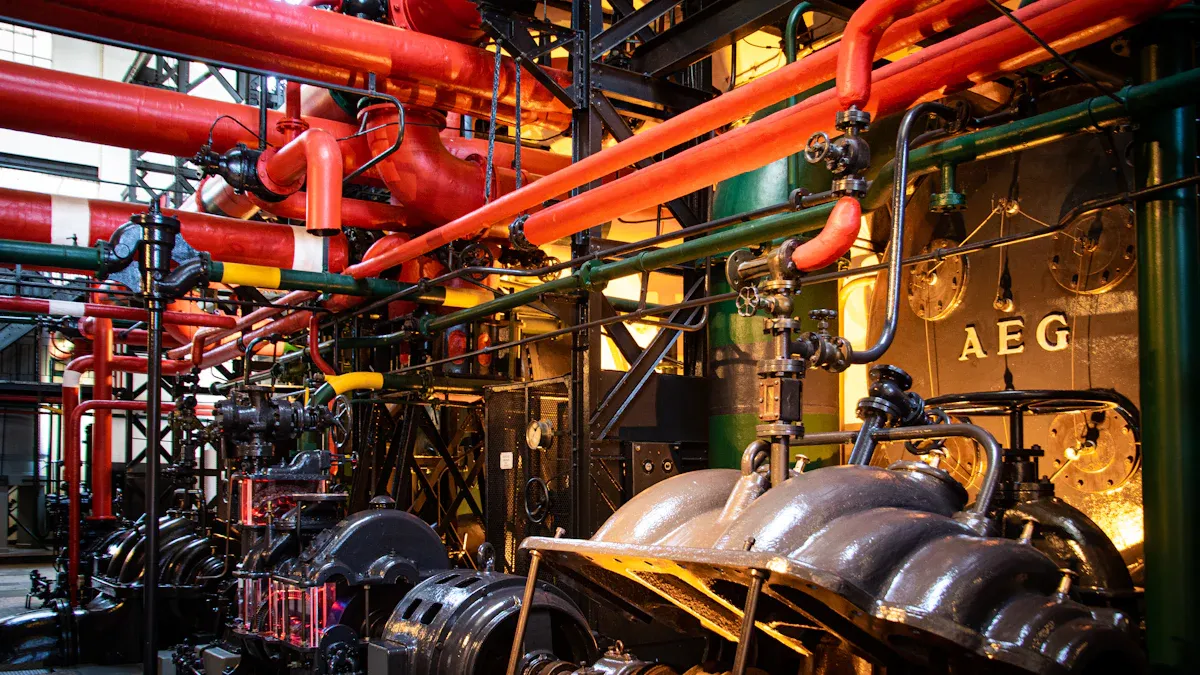

Application Scenarios

Oil & Gas Pipelines

NTGD pressure-balanced plug valves play a vital role in oil and gas pipelines. Engineers select these valves for their ability to maintain reliable operation in high-pressure systems. The valves handle a wide range of fluids, including crude oil, natural gas, and slurries. Operators rely on NTGD plug valves for emergency shut-off in storage tank facilities and wellhead operations. The valves withstand temperature extremes and resist wear from abrasive and corrosive materials.

• High-pressure environments in oil pipelines and gas processing plants
• Handling viscous fluids, such as oil and slurries
• Operations in temperature extremes
• Managing corrosive and abrasive fluids, including slurries and acids
• Emergency shut-off systems in storage tank facilities and wellhead operations

Performance requirements in these scenarios include rapid shut-off capability, resistance to erosion, and consistent sealing under fluctuating pressures. Regular inspection and lubrication ensure optimal performance and extend service life.

Performance Requirement	Description
Reliable operation in high-pressure and high-temperature conditions	Maintains process safety and integrity
Rapid shut-off capability	Supports emergency response and system isolation
Resistance to wear and erosion	Handles abrasive and corrosive materials
Regular inspection and lubrication	Sustains long-term reliability

Chemical & Petrochemical Plants

Chemical and petrochemical plants demand robust valve solutions for complex process lines. NTGD plug valves provide stable fluid control for aggressive chemicals, acids, and solvents. Engineers choose pressure-balanced plug valves for their ability to maintain tight shutoff and resist chemical attack. The valves operate efficiently in high-pressure systems, supporting both batch and continuous processes.

Operators benefit from the lubricated design, which minimizes friction and protects internal components from corrosion. NTGD plug valves meet international standards, ensuring compatibility with diverse chemical media and process requirements. The valves support rapid maintenance and grease injection, reducing downtime in critical production areas.

Steam & High-temperature Lines

Steam and high-temperature lines require valves that can withstand thermal stress and pressure fluctuations. NTGD pressure-balanced plug valves deliver reliable performance in superheated steam systems and high-temperature process lines. The balanced plug valve structure prevents taper locking and ensures smooth actuation, even under extreme conditions.

Plant engineers install NTGD plug valves in power generation facilities, refineries, and industrial heating systems. The valves maintain stable sealing and low operating torque, supporting safe operation and efficient energy transfer. Regular lubrication protects the sealing surfaces and extends the valve’s operational life in demanding environments.

Tip: NTGD plug valves offer proven reliability for industrial applications where high-pressure systems and challenging media are present.

Abrasive & Corrosive Media

NTGD pressure-balanced plug valves demonstrate exceptional performance in environments where abrasive particles and corrosive chemicals challenge conventional valve designs. Engineers in mining, chemical processing, and oil and gas sectors often encounter fluids containing suspended solids, aggressive acids, or reactive solvents. These conditions demand a valve solution that maintains reliable sealing, resists material degradation, and minimizes maintenance requirements.

NTGD addresses these challenges through careful material selection and advanced engineering. The valve body and internal components can be manufactured from stainless steel, duplex alloys, or other corrosion-resistant metals. Specialized seat and plug coatings further enhance resistance to chemical attack and abrasive wear. This robust construction ensures that the NTGD plug valve maintains its integrity and sealing performance, even when exposed to slurries, brines, or highly acidic solutions.

Operators benefit from the lubricated plug valve design, which injects grease directly into the sealing surfaces. This lubrication forms a protective barrier, reducing friction and preventing abrasive particles from embedding into the metal surfaces. The pressure-balanced structure distributes forces evenly across the plug, preventing localized wear and extending service life. Maintenance teams report fewer unplanned shutdowns and reduced frequency of seal replacement, even in the most demanding process lines.

Industrial applications often require valves that can handle both high pressure and aggressive media without compromising safety or reliability. NTGD’s balanced plug valve design meets these requirements by combining pressure equalization with durable materials and a robust sealing system. The following points illustrate the suitability of plug valves for abrasive and corrosive service:

• Plug valves provide reliable isolation and flow control in oil and gas operations, managing high pressures and preventing leaks in volatile environments.
• Corrosion-resistant variants in chemical processing ensure compatibility with reactive chemicals and minimize contamination risks.
• Eccentric plug valves in mining operations handle slurries efficiently, preventing plugging and reducing wear in abrasive conditions, which extends service life.
• The use of cast iron, bronze, and specialized alloys in plug valve construction delivers durability and corrosion resistance across a range of industrial settings.

Note: Regular lubrication and inspection further enhance the valve’s ability to withstand harsh media, supporting long-term reliability and process safety.

NTGD engineers design each pressure-balanced plug valve to meet international standards, ensuring consistent quality and performance in critical service. Plant operators trust these valves to deliver safe, dependable operation in environments where abrasive and corrosive media are present.

Selection & Specification Guide

Material & Seal Selection

Selecting the right materials and seals is essential for ensuring the long-term reliability of a pressure-balanced plug valve. NTGD engineers evaluate several criteria to match the valve construction to the specific demands of each application. The following table summarizes the main factors that influence material and seal selection:

Criteria	Description
Operating Conditions	Assess temperature and pressure limits to ensure materials withstand extreme environments.
Resistance to Corrosion and Erosion	Choose stainless steel, Hastelloy, or similar alloys for durability in corrosive or erosive services.
Fluid Characteristics	Match materials and coatings, such as PTFE, to aggressive or abrasive media for enhanced protection.
Compliance with Standards	Ensure all selections meet relevant safety and environmental regulations for the intended industry.

NTGD offers a range of body materials, including carbon steel, stainless steel, and high-alloy options. For sealing, engineers often specify PTFE, graphite, or elastomeric compounds, depending on the process fluid and temperature. This approach guarantees that each NTGD plug valve delivers optimal performance and safety in oil, gas, chemical, and power applications.

Pressure Class & Size Choice

Proper sizing and pressure class selection are critical for balanced plug valve performance. NTGD recommends a systematic approach to ensure each valve meets the process requirements:

1. Define the actual process conditions, including minimum and maximum flow rates, upstream and downstream pressures, and temperature ranges.
2. Analyze the installed flow characteristic of the valve to confirm a linear and predictable response.
3. Evaluate potential challenges such as cavitation, flashing, or choked flow, which may affect valve selection.
4. Utilize advanced sizing tools or vendor programs to verify that the selected NTGD plug valve can handle all anticipated operating conditions.
5. Follow a structured procedure for valve selection, considering body type, flow characteristic, and compatibility with process fluids.

NTGD supplies pressure-balanced plug valves in a wide range of pressure classes, from ANSI 150 to 2500 and PN16 to PN420, and sizes from DN15 (½”) up to DN600 or larger. This flexibility allows engineers to specify the ideal valve for both standard and custom pipeline systems.

Actuation & Maintenance

Long-term reliability of NTGD plug valves depends on proper actuation and a robust maintenance program. Recommended practices include:

• Regular Inspection: Inspect valves routinely to detect signs of wear, corrosion, or mechanical damage.
• Lubrication: Apply lubricant to the valve stem and moving parts as specified by NTGD’s maintenance guidelines.
• Seal Replacement: Replace seals promptly if wear or damage is detected to maintain leak-tight performance.
• Cleaning and Flushing: Clean and flush the valve regularly, especially in applications with dirty or abrasive media.
• Stem Packing Adjustment: Check and adjust stem packing periodically to preserve sealing integrity.

NTGD supports a variety of actuation options, including manual, electric, pneumatic, and hydraulic systems. The pressure-balanced design ensures low operating torque, which extends actuator life and reduces maintenance frequency. By following these practices, operators maximize the service life and reliability of every NTGD pressure-balanced plug valve in demanding industrial environments.

Installation & Connection Types

Engineers must select the correct installation and connection type to ensure optimal performance of NTGD pressure-balanced plug valves. The connection method directly affects system integrity, maintenance accessibility, and compliance with industry standards. NTGD offers a comprehensive range of connection options to suit diverse pipeline configurations and operational requirements.

Common Connection Types for NTGD Plug Valves:

• Flanged Connections:
  Flanged ends provide secure, leak-tight joints. They simplify installation and removal, especially in large-diameter pipelines. NTGD manufactures flanged plug valves according to ASME B16.5 and EN 1092-1 standards. Flanged connections suit oil and gas transmission, chemical processing, and power generation systems.

• Butt-Weld Connections:
  Butt-welded ends deliver robust, permanent joints. They minimize the risk of leakage and withstand high-pressure, high-temperature service. NTGD supplies butt-weld plug valves with beveled ends, conforming to ASME B16.25 specifications. These valves integrate seamlessly into process piping, reducing maintenance frequency.

• Socket-Weld Connections:
  Socket-weld ends offer compact installation for small to medium pipe sizes. They provide reliable sealing and resist vibration. NTGD designs socket-weld plug valves for utility lines, condensate systems, and auxiliary services.

• Threaded Connections:
  Threaded ends enable quick installation in low-pressure or temporary systems. NTGD threaded plug valves meet ASME B1.20.1 standards. These valves suit instrument lines, sampling points, and pilot systems.

Connection Type	Typical Size Range	Standard Reference	Application Scenario
Flanged	DN15–DN600+	ASME B16.5, EN 1092-1	Main process lines, critical service
Butt-Weld	DN15–DN600+	ASME B16.25	High-pressure, high-temperature
Socket-Weld	DN15–DN100	ASME B16.11	Utility, auxiliary, compact systems
Threaded	DN15–DN50	ASME B1.20.1	Instrument, sampling, pilot lines

Tip: Engineers should verify compatibility between valve end connections and pipeline standards before installation. Proper alignment and torque application prevent flange distortion and ensure long-term sealing.

Installation Considerations:

1. Inspect valve and pipeline ends for damage or debris before assembly.
2. Align the valve with the pipeline axis to avoid stress on the body and connections.
3. Use appropriate gaskets and fasteners for flanged joints. Tighten bolts in a cross-pattern to achieve uniform compression.
4. For welded connections, follow qualified welding procedures and inspect welds for defects.
5. Apply thread sealant for threaded valves to prevent leakage.
6. Confirm actuator orientation and accessibility for manual or automated operation.

NTGD engineers recommend following international standards and site-specific protocols during installation. Proper support and alignment extend valve life and maintain system safety. The pressure-balanced plug valve design accommodates horizontal and vertical installation, offering flexibility for complex layouts.

NTGD’s manufacturing process ensures precise machining of end connections, guaranteeing reliable fit and sealing. Each NTGD plug valve undergoes dimensional inspection and pressure testing before shipment. This quality assurance supports trouble-free installation and long-term operation in demanding environments.

Note: Selecting the correct connection type and following best installation practices maximizes the reliability and performance of NTGD pressure-balanced plug valves in industrial systems.

NTGD Manufacturing & Customization

Quality Standards & Certification

NTGD maintains rigorous quality management throughout the production of every inverted pressure balance lubricated plug valve. The company aligns its manufacturing processes with internationally recognized standards. Each valve undergoes strict compliance checks to ensure reliability and safety in demanding industrial applications. NTGD’s commitment to excellence is reflected in its certifications, which demonstrate adherence to both global and industry-specific requirements.

Certification/Standard	Description
ISO9001	Quality management system certification
API	American Petroleum Institute standards
ASME	American Society of Mechanical Engineers standards
AISI	American Iron and Steel Institute standards
DIN	Deutsches Institut für Normung standards

These certifications guarantee that every inverted pressure balance lubricated plug valve meets or exceeds the expectations of system designers and plant engineers. NTGD’s quality assurance program covers material selection, machining, assembly, and final inspection.

Customization Capabilities

NTGD recognizes that industrial systems often require tailored solutions. The company offers extensive customization for the inverted pressure balance lubricated plug valve to address unique process challenges. Engineers can specify a wide range of options to optimize performance and compatibility.

• Sizes: NTGD provides various sizes to match specific pipeline requirements.
• Materials: Customers can select from stainless steel, ductile iron, or HDPE for enhanced durability.
• Actuation Methods: The inverted pressure balance lubricated plug valve supports manual, electric, pneumatic, or hydraulic operation.
• Sealing Systems: Engineers may choose the most suitable sealing system for their application.
• Coatings and Linings: Special coatings are available for increased protection against corrosion or abrasion.

NTGD’s engineering team collaborates closely with clients to define technical parameters and deliver solutions that integrate seamlessly into existing systems. The company’s flexible manufacturing approach ensures that each inverted pressure balance lubricated plug valve meets precise operational needs.

Tip: Early engagement with NTGD’s technical team streamlines the customization process and reduces project lead times.

Testing & Quality Control

NTGD implements a comprehensive testing and quality control protocol for every inverted pressure balance lubricated plug valve. The process begins with raw material verification and continues through each stage of production. Technicians conduct dimensional inspections, pressure tests, and functional checks to confirm that each valve performs as specified.

Quality control procedures include:

• Hydrostatic pressure testing to validate sealing integrity.
• Torque measurement to ensure smooth operation.
• Visual and non-destructive examination of welds and critical surfaces.
• Final inspection and documentation for traceability.

NTGD’s quality control team documents all test results and maintains records for each inverted pressure balance lubricated plug valve. This systematic approach guarantees consistent product quality and supports long-term reliability in service.

Note: NTGD’s commitment to quality and customization ensures that every inverted pressure balance lubricated plug valve delivers dependable performance in high-pressure, high-differential pressure, and corrosive environments.

Conclusion & Contact

Why Choose NTGD

NTGD stands out in the valve industry by delivering pressure-balanced plug valves engineered for high-pressure and high-differential pressure environments. The company applies advanced pressure equalization mechanisms and lubricated sealing systems to every NTGD plug valve. Engineers benefit from low operating torque, stable shutoff, and reliable performance in critical service lines. NTGD’s balanced plug valve design addresses the challenges of abrasive and corrosive media, supporting safe fluid control in oil, gas, chemical, and power applications.

Plant operators report consistent actuation and minimal maintenance requirements. The robust construction, combined with precise machining and quality materials, ensures long service life. NTGD manufactures valves in compliance with international standards, including API 6D and ASME B16.34. The company’s commitment to customization allows system designers to specify materials, pressure classes, and actuation methods that match unique process needs.

NTGD’s engineering team provides technical support throughout the valve selection and installation process. They help clients optimize system reliability and safety.

Choosing NTGD means investing in a solution that combines proven technology, rigorous quality control, and responsive customer service. The pressure-balanced plug valve from NTGD offers a dependable answer for demanding industrial environments.

Contact for Datasheets & Quotes

NTGD Plug Valve Co. Ltd. offers comprehensive resources for engineers and procurement teams seeking technical documentation or quotations. The company maintains a dedicated support channel for inquiries related to pressure-balanced plug valves, balanced plug valves, and lubricated plug valves.

Type	Details
Company Name	NTGD Plug Valve Co. Ltd.
Address	NTGD Industrial Zone, Wenzhou City, Zhejiang Province, China
Telephone	+86 138 6845 0646
Email	Sales@ntgdvalve.com

Engineers can request datasheets, technical drawings, and compliance certificates. NTGD’s sales and technical teams respond promptly to specification requests and provide guidance on valve selection.

For additional support, NTGD offers a range of online resources:

• Operating Manuals and User Guides for Plug Valves
• Detailed instructions for operating, maintaining, and troubleshooting valves.

Reach out to NTGD for expert advice, product datasheets, or a tailored quotation. The company’s specialists assist with technical evaluation and ensure every pressure-balanced plug valve meets project requirements.

NTGD remains committed to supporting engineers and buyers with reliable products and responsive service. Contact NTGD today to secure dependable valve solutions for your next project.

---

NTGD plug valves deliver robust performance in high-pressure and high-differential pressure environments. The pressure-balanced design, lubricated sealing, and durable construction support safe fluid handling in demanding applications. Engineers and buyers value these features for reliability, safety, and extended service life.

• Regular maintenance keeps lubricated plug valves operating safely.
• Frequent inspection and cleaning prevent leaks and damage.
• Proper lubrication reduces wear and improves valve performance.

Contact NTGD for technical support, datasheets, or custom solutions tailored to your project needs.

FAQ

What is a pressure-balanced plug valve?

A pressure-balanced plug valve uses internal channels to equalize pressure on both ends of the plug. This design reduces operating torque and prevents taper locking, ensuring smooth actuation in high-pressure systems.

Which industries use NTGD plug valves?

Engineers install NTGD plug valves in oil and gas pipelines, chemical plants, power generation facilities, and steam lines. These valves handle abrasive, corrosive, and high-pressure media reliably.

How does the lubricated design improve performance?

Lubrication minimizes friction between the plug and seat. Operators inject grease through dedicated fittings, which maintains a robust seal and extends service life, especially in abrasive or corrosive environments.

What materials are available for NTGD plug valves?

NTGD manufactures plug valves from carbon steel, stainless steel, duplex steel, and alloy steel. Material selection depends on process fluid, pressure class, and corrosion resistance requirements.

What pressure classes and sizes does NTGD offer?

NTGD supplies pressure-balanced plug valves in ANSI 150 to 2500 and PN16 to PN420 pressure classes. Sizes range from DN15 (½”) to DN600 or larger, covering most industrial applications.

What connection types are supported?

NTGD plug valves feature flanged, butt-weld, socket-weld, and threaded connections. Engineers select the appropriate type based on pipeline standards and installation requirements.

How often should operators perform maintenance?

Operators should inspect and lubricate NTGD plug valves at least once or twice a year. More frequent maintenance may be necessary in high-pressure or corrosive service conditions.

Does NTGD provide custom solutions?

NTGD offers customization for plug valve size, material, actuation method, and sealing system. The engineering team collaborates with clients to meet specific process and installation needs.
