Sleeved plug valves are very important in oil and gas work. They meet tough API rules. API 6D, API 599, API 607, API 598, and API 6A are some of these rules. These rules say how valves should be made and tested. They also talk about what materials to use and how to seal the valves. When companies follow API rules, their valves do not leak. The plugs can clean themselves. The valves are safe if there is a fire. The materials used are strong. API rules like API 6D help valves handle high pressure. They stop things from getting inside the valves. They also help stop the valves from breaking. People who pick valves that follow API rules make their work safer. They also make sure everything works well.
Key Takeaways
- Sleeved plug valves use special sleeves like PTFE to seal well. They stop leaks and make turning easy. They do not need grease.
- Following API standards like API 6D, API 599, and API 607 keeps valves strong and safe. These rules make sure valves resist fire. They are tested for high pressure and tough conditions.
- Strict testing and quality checks are important. Pressure and fire tests help make sure valves work well. This helps them last a long time in oil and gas work.
- API-certified valves help save money by stopping leaks. They lower maintenance and let you use smaller, simpler equipment. They also keep workers and the environment safe.
- Before you buy, always check that valves meet all needed API and ISO rules. Make sure they have the right test papers. This helps keep safety and good performance.
Sleeved Plug Valves in Oil and Gas
Design Features
Sleeved plug valves are special in oil and gas work. They have a sleeve inside that helps stop leaks. The sleeve also makes the valve easier to turn. The plug is smooth and shaped like a cone. It pushes the sleeve against the valve body. This stops leaks and keeps the valve from wearing out fast. These valves do not need oil or grease. This means less work to keep them working. There are different types of sleeved plug valves:
- Lift-type plug valves lift the plug so it can turn easily.
- Elastomer sleeved plug valves use a Teflon sleeve. This sleeve helps the valve move smoothly.
- Fully lined plug valves have iron bodies with Teflon inside. This helps them not rust.
These features help the valves work with harsh liquids. They seal well and last a long time. Even in tough places, they keep working. API 6D and other api rules help make these valves strong. These rules make sure the valves work well and are safe.
Applications
Sleeved plug valves are used in many oil and gas jobs. They are strong and follow api 6d rules. This makes them good for many uses. The table below shows where these valves are used most:

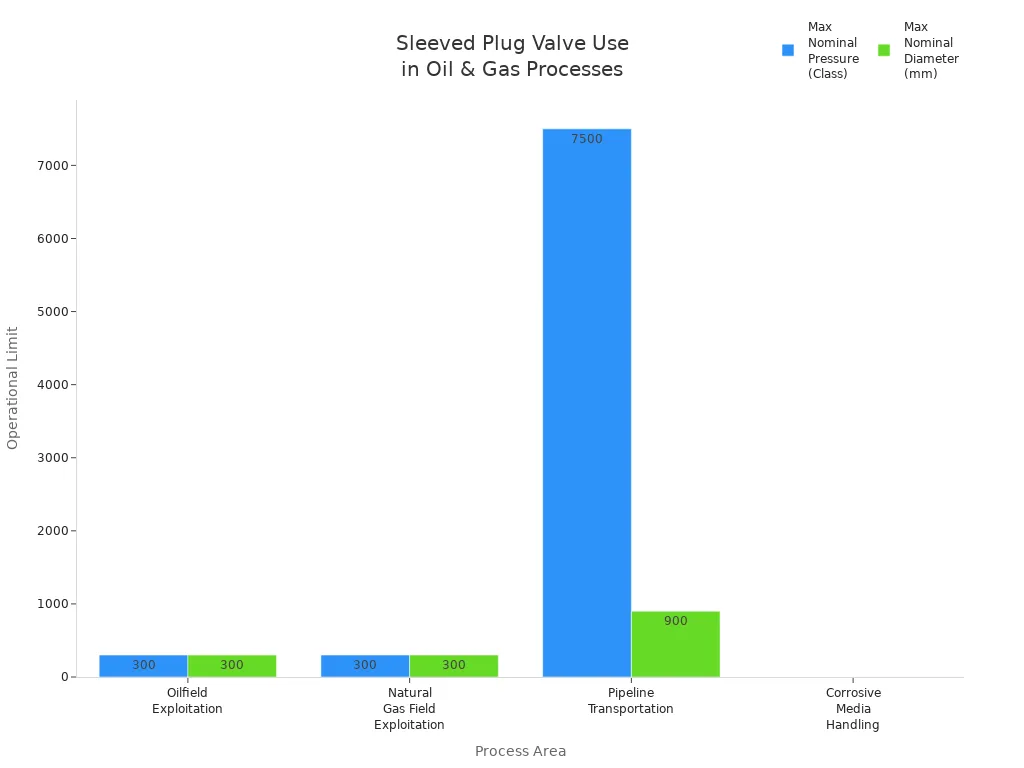

| Oil and Gas Process Area | Application Details | Operational Limits and Features |
|---|---|---|
| Oilfield Exploitation | Used in branch pipes, refining and cleaning equipment | Nominal pressure ≤ Class300, nominal diameter ≤ 300mm |
| Natural Gas Field Exploitation | Similar use in branch pipes and equipment | Nominal pressure ≤ Class300, nominal diameter ≤ 300mm |
| Pipeline Transportation | Used in pipelines and branch pipes | Nominal pressure ≤ Class7500, nominal diameter ≤ 900mm, working temperature ≤ 340°C |
| Handling Corrosive Media in Chemical Industry | Fast opening/closing needed; PTFE sleeve sealed conical plug valves are best for acid media | Special materials are picked for nitric acid and acetic acid (PTFE sleeve, stainless steel types) |
Sleeved plug valves seal tightly and do not leak. They do not rust or wear out fast. This makes them good for hard jobs. They can handle thick liquids and strong chemicals. These valves work well in oil and gas fields. Their design follows api 6d and other api rules. This helps them last a long time and work smoothly. People pick these valves because they are strong, easy to care for, and meet strict api rules.
API Standards for Sleeved Plug Valves
Sleeved plug valves are very important in oil and gas work. They must follow API standards to work safely. These rules help with how plug valves are made and tested. They make sure the valves can handle tough jobs. The main API standards for sleeved plug valves are API 599, API 6D, API 607, API 598, and API 6A. Each rule talks about a different part of how the valve is built and works.
API 599
API 599 gives the rules for non-lubricated metallic plug valves. It is for valves that turn on and off in pipes. These plug valves work well with low or medium pressure and many temperatures. API 599 helps plug valves do better in oil and gas jobs by adding special features:
- Soft sealing with a card sleeve and a metal lip keeps leaks away.
- The design stops stuff from getting stuck inside, so there is less rust.
- The metal lip cleans itself when the plug turns, so it lasts longer.
- The valve can let things flow both ways, so it is easy to use.
- You can pick different materials and sizes to fit the job.
- Soft-sealed plug valves work well with dangerous or harsh liquids.
Note: API 599 says valves must pass water and pressure tests. These tests are often done by following API 598. This makes sure the valves are safe and work well.
| Requirement Aspect | Details |
|---|---|
| Valve Type | Quarter-turn metal plug valves with flanged, threaded, and welding ends |
| Material Standards | Corrosion resistant materials such as carbon steel, alloy steel, stainless steel, CD4MCu |
| Pressure Ratings | Suitable for low to medium pressure applications (Class 150-1500 LB, PN10-PN260) |
| Temperature Range | Operates effectively from -29℃ to +200℃ |
| Sealing Mechanism | Soft seals, card sleeve type soft sealing, 360° metal lip protection for reliable sealing |
| Construction Features | Optimized construction with no cavity to accumulate media, self-cleaning metal lip |
| Testing Requirements | Hydrostatic and operational testing per API 598 and DIN3230 |
| Design Standards | API 599, API 6D |
| Performance Enhancements | Prevent leakage, resist corrosion, ensure durability and operational reliability |
Companies like Camtech Valve and DomBor Valve make sleeved plug valves that meet API 599. These valves are strong and can seal both ways. They use PTFE sleeves to make turning easy. Following API rules shows these valves are good for hard oil and gas jobs.
API 6D Valves
API 6D is the main rule for pipeline valves, including sleeved plug valves. API 6D says how to build, test, and pick the right materials for these valves. It covers welded or flanged ends to keep pressure safe. The materials for the valves must follow API 20A, 20B, and 20C to be strong.
- Sleeved plug valves use sleeves made from PTFE or other plastics to lower friction.
- The sleeve helps seal the valve and sometimes uses elastomers like EPDM or NBR.
- Some valves have springs to help seal tightly and stop leaks.
- Some valves are lined with special plastics like PTFE or PFA to stop damage from chemicals.
- Lift-type valves let the plug move up, so things can flow easily.
- You must think about pressure, temperature, and chemicals to pick the right valve.
- These valves do not need much care because they can clean themselves.
API 6D also says valves must pass hard tests:
- The valve body must be built well and welded right.
- The shell must pass a water test at 1.5 times its normal pressure.
- The seat must be tested to make sure it seals when closed.
- The stem must be tested to make sure it does not leak when open.
- Special tests like ultrasound check for cracks or bad welds.
- The valve must have papers to show it passed all API 6D rules.
- The valve must work at the right pressure and temperature for pipelines.
API 6D makes sleeved plug valves last longer and need less fixing. These valves are made to last over 20 years. They come with help and spare parts. Strong metals and coatings help them work with sour gas, cold, and wear. Smart sensors can tell when the valve needs fixing, so it lasts even longer.
API 607 and Fire-Safe Design
API 607 is about fire-safe valves. It checks if soft-seated, quarter-turn valves, like sleeved plug valves, can keep working in a fire. Fire-safe valves have two seals. The first seal is soft for normal use. The second seal is metal and works if the first one fails in a fire. This stops leaks if there is a fire.
API 607 fire tests include:
- The valve is put in a fire at about 1400°F (760°C) for 30 minutes.
- The valve is filled with water or air during the fire to act like real use.
- The valve must not leak much during or after the fire.
- The valve must still work after the fire for emergencies.
- The valve must have a metal seal to keep things inside if the soft seal fails.
- This rule is for soft-seated, quarter-turn valves like sleeved plug valves.
- The valve must pass hard fire tests and have two seals.
Tip: API 607 is needed for valves in places where fires can happen, like oil and gas plants and pipes.
Additional API Standards: API 598 and API 6A
API 598 and API 6A are also important for plug valve rules. API 598 checks if plug valves pass tests before being used. It makes sure the valves do not leak and can handle pressure.
API 6A is for valves used at wellheads and Christmas trees in oil and gas. API 6A says how to design, build, and test valves for high pressure and tough jobs. It also talks about stem packing, bolts, and making sure parts fit together. These rules help valves work well on offshore platforms.
| Standard | Valve Types Covered | Application Area | Key Focus and Requirements |
|---|---|---|---|
| API 6A | Includes plug valves | Wellhead and Christmas tree equipment in oil and gas | Design, materials, high pressure sealing, stem packing, bolting, sealing, testing, dimensional interchangeability for offshore platforms |
| API 598 | Includes plug valves | Factory acceptance, production testing, in-situ maintenance of various industrial valves | Inspection, examination, seat leakage and pressure testing to ensure valve integrity and safety before use |
API rules keep changing. The newest API 599, API 6D, and API 607 have new ways to build and test valves. They also have new material rules. Companies must keep up with these changes to make sure their sleeved plug valves are safe and work well.
Achieving API 6D Certification
Materials and Construction
Manufacturers make sleeved plug valves to pass api 6d rules. They pick materials that match api 6d and industry needs. Some common materials are ASTM A890 4A, ASTM A351 CF8, and UB6 (SS 904L). These materials do not rust easily and are very strong. This is important for oil and gas work. The table below lists the usual material standards for api 6d valves:
| Material Standard | Valve Certification | Size | Pressure Ratings | Seat Material | Operation | Notes |
|---|---|---|---|---|---|---|
| ASTM A890 4A | API 599 | 2 in | Class 150 LB | PTFE | Lever | Sleeved plug valve, soft seal |
| ASTM A351 CF8 | API 599 | 10 in | Class 300 LB | PTFE | Lever | Full bore, bi-directional flow |
| UB6 (SS 904L) | API 599 | 8-12 in | Class 150 LB | PTFE | Worm gear | High corrosion resistance |
| ASTM A182 F316 | API 599 | 1 in | 3000 PSI | Metal seat | NPT ends | Lubricated plug valve |
Engineers choose the right materials so valves can handle hot and cold. They also need to work with high pressure. PTFE sleeves cover the plug all the way. This makes the valve seal tight both ways and meet api 6d leak rules. PTFE sleeves bounce back and fix themselves if they wear out. This makes the valve last twice as long.
A special metal lip goes all around the PTFE sleeve. This stops stuff from getting stuck inside and causing harm. The metal lip also cleans itself when the plug turns. This helps the valve work with sticky or thick liquids. The design lets liquid flow both ways and makes it easy to put in. This means the valves can be used in many places.
Manufacturers use careful forging and CNC machines to make sure each valve is just right. They attach PTFE sleeves with a special process called injection vulcanization. This makes the seal strong and without bubbles. The valves also have fire-safe designs and grease-injected seats for better safety. These ways of making the valves help them pass all api 6d rules.
Note: All design papers, like math and test notes, must be saved for at least 10 years after the last valve is made. This helps keep track and follow api rules.
Testing and Inspection
Testing for api 6d is very strict. Every valve must pass many tests to show it is strong and safe. First, there is a water test called hydrostatic testing. This follows api 6d and api 598 rules. The shell test puts 1.5 times the normal pressure on the valve at 38°C. This checks if the valve can take high pressure without leaking or breaking.
The backseat test checks if the stem or shaft seals well. Engineers loosen the packing and take out seals to look for leaks. The closure test checks if the valve can seal under normal pressure. Soft-seated valves must meet Class A leak rules. Metal-seated valves must meet Class C. These tests use water, air, or safe gas. How long the test takes depends on the valve size.
Fire-safe testing is needed too. The api 607 rule checks if valves still seal during a fire. Valves must have both soft and metal seals. If the soft seal melts in a fire, the metal seal stops leaks. This is very important for safety in oil and gas plants.
Quality control is a big part of api 6d. The steps include:
- Written steps for design and putting parts together, like tightening bolts.
- Strict rules for materials with papers showing what they are made of and how strong they are.
- Water tests: check the stem, the body, and the seat.
- Check the stem seals by loosening packing and taking out seals.
- Make sure leak limits follow ISO 5208 rules.
- Test pressure relief valves at 1.1 to 1.33 times the normal pressure at 121°C.
- Keep records for all materials and how the valve was made.
- Put marks on the valve body, bonnet, and nameplate.
- Paint and coat valves that can rust.
- Save design papers for at least 10 years.
Quality checks do not stop after testing. New materials are checked for what they are made of and how hard they are. During making, CNC machines measure every part to make sure it fits. Outside experts check finished valves before they are sent out. Companies must have api 6d and ISO 9001 certificates. Inside checks and special test tools help keep up with api 6d rules.
Tip: Careful testing and strong quality checks make sure sleeved plug valves meet all api 6d rules for safety, strength, and no leaks.
Benefits of API-Compliant Sleeved Plug Valves
Safety and Reliability
API-certified valves are very important in oil and gas work. These valves use strong materials like PTFE sleeves. PTFE sleeves help the valve move smoothly and last longer. The sleeve inside the valve stops leaks. It also means you do not need to add oil or grease. These valves are tested to make sure they do not leak. They are checked to see if they can handle high pressure and heat.
People trust these valves because they work the same every time. They do not need much fixing, so work does not stop often. API-certified valves help keep workers safe by meeting strict rules. They also help protect the environment by stopping leaks. The valves are made to be tough and can be used with strong chemicals. This is why people use them for important jobs.
Tip: Picking API-certified valves helps companies follow safety rules and keep their work safe in hard places.
Regulatory and Operational Advantages
API-certified valves make it easier to get approval for building and running oil and gas sites. These valves follow set rules, so inspectors know they are safe. This helps get permits and checks done faster.
Using API-certified valves saves money over time. The table below shows how these valves help save money:
| Cost Saving Aspect | Description |
|---|---|
| Reduced Unplanned Shutdowns | No leaks mean fewer valve problems and less surprise downtime. |
| Lower Planned Maintenance Cost | Seats are easy to change, so fixing the valve is faster and cheaper. |
| Simpler Actuators | The design lets you use simple actuators, which cost less to buy and fix. |
| Minimal Product Wastage | Tight seals stop product from leaking out during use. |
| Line Size Reduction | High flow lets you use smaller pipes, which saves on materials and setup costs. |
API-certified valves also make work easier in other ways. They do not need much force to turn, so they last longer and cost less to use. Good seals stop leaks and help the system work better. The valves are strong and easy to fix, so there is less downtime. All these things help companies spend less money in the long run. API-certified valves also help companies deal with supply problems and changes in demand because they are reliable and meet set standards.
Picking sleeved plug valves that follow API rules is very important for oil and gas work. API rules make sure these valves last a long time and do not leak. They also help the valves get approved in many countries. Experts say you should do these things before buying:
- Make sure the valves follow all needed API and ISO rules.
- Look for the right papers and strong testing.
- Talk to makers to check the details and get proof they follow the rules.
Valves with the right papers, made from good materials and careful work, help places stay safe and follow the rules for many years.
FAQ
What is the main advantage of sleeved plug valves in oil and gas?
Sleeved plug valves seal tightly and need little care. The PTFE sleeves help the valve move easily and stop leaks. People use them because they work well even in tough places.
How do API standards improve valve safety?
API standards have strong rules for how valves are made and tested. These rules help stop leaks and keep valves from breaking. Companies use API-certified valves to keep workers and equipment safe.
Can sleeved plug valves handle corrosive fluids?
Yes. Makers use special materials that do not rust and PTFE sleeves. These parts let the valves work with acids, chemicals, and sour gas without getting ruined.
How often should operators inspect API-certified sleeved plug valves?
Operators should check the valves as the maker says. Regular checks help keep valves safe and leak-free. Most valves need to be checked one or two times each year.
